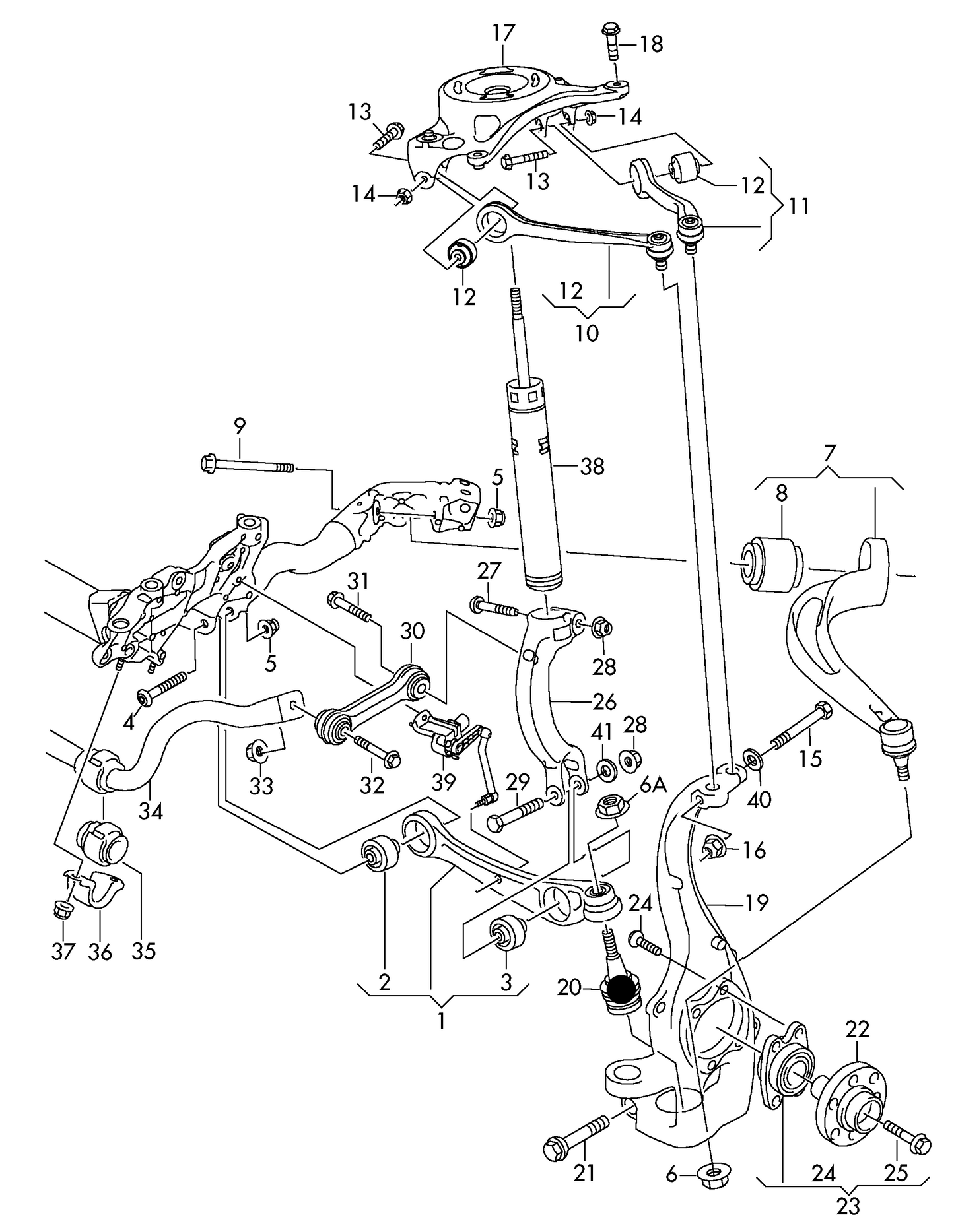

(20) 113165 OPTIMAL Ball Joint Kit>Outer A4 '8K' >>15/08/2011
Fitting Position | Front Axle left and right |
Fitting Position | Lower |
Steering arm type | for control arm |
VAG | 8K0407669E |
VAG | 8K0407689D |
VAG | 8K0407689E |
VAG | 8K0407689F |
VAG | 8K0407689G |
Audi A4 | 1.8-3.2 (incl. D) | 11/07-15/08/2011 |
Audi A5 | 1.8-4.2 (incl. D) | 06/07- |
№ | Number | Description | Cnt | Date | |||
---|---|---|---|---|---|---|---|
front wishbone link suspension guide wheel bearing housing anti-roll bar D - 02.11.2009>> * M14 |
|||||||
1
|
113469
|
front wishbone link D >> - 17.01.2011
left front
|
1
|
||||
1
|
113469 |
front wishbone link D >> - 15.08.2011
left front
|
1
|
||||
(1)
|
115876
|
front wishbone link D - 15.08.2011>>
left front
|
1
|
||||
(1)
|
113470
|
front wishbone link D >> - 17.01.2011
right front
|
1
|
||||
(1)
|
113470
|
front wishbone link D >> - 15.08.2011
right front
|
1
|
||||
(1)
|
115877
|
front wishbone link D - 15.08.2011>>
right front
|
1
|
||||
2
|
113966
|
bonded rubber bush
inner
|
2
|
||||
3
|
110467
|
bonded rubber bush
outer
|
2
|
||||
4
|
round hd. screw
M12X1,5X92
|
2
|
|||||
5
|
hex. nut, self-locking with washer
M12X1,5
|
4
|
|||||
(6)
|
hexagon collar nut self-locking to use for: D - 15.08.2011>>
M14X1,5
8K0 407 693 T 8K0 407 694 T 8K0 407 693 S 8K0 407 694 S |
2
|
|||||
6A
|
hexagon flange nut, self-locking D >> - 15.08.2011
M12X1,5
|
2
|
|||||
(6A)
|
hexagon collar nut self-locking D - 15.08.2011>>
M14X1,5
|
2
|
|||||
7
|
114323
|
suspension guide bonded rubber bush *no 'fi' function possible also use:
M14
65MM left front WHT 004 898 |
1;;;1
|
||||
(7)
|
114323 |
suspension guide hydro-mounting D >> - 30.08.2010 *no 'fi' function possible also use:
M14
75MM left front WHT 004 898 |
1;;;;1
|
||||
(7)
|
114323
|
suspension guide hydro-mounting D - 30.08.2010>> - 20.06.2011 *no 'fi' function possible also use:
M14
75MM left front WHT 004 898 PR-1LJ,1LM,
1LW |
1;;;;1
|
||||
(7)
|
114565
|
suspension guide hydro-mounting D - 30.08.2010>> - 20.06.2011 *no 'fi' function possible also use:
M14
75MM left front WHT 004 898 PR-1LA,1LB,
1LT |
1;;;;1
|
||||
(7)
|
114565
|
suspension guide hydro-mounting D - 20.06.2011>> *no 'fi' function possible also use:
M14
75MM left front WHT 004 898 |
1;;;;1
|
||||
(7)
|
115702
|
suspension guide bonded rubber bush *no 'fi' function possible also use:
M14
65MM right front WHT 004 898 |
1;;;1
|
||||
(7)
|
115702
|
suspension guide hydro-mounting D >> - 30.08.2010 *no 'fi' function possible also use:
M14
75MM right front WHT 004 898 |
1;;;;1
|
||||
(7)
|
115702
|
suspension guide hydro-mounting D - 30.08.2010>> - 20.06.2011 *no 'fi' function possible also use:
M14
75MM right front WHT 004 898 PR-1LJ,1LM,
1LW,1ZT |
1;;;;1
|
||||
(7)
|
114566
|
suspension guide hydro-mounting D - 30.08.2010>> - 20.06.2011 *no 'fi' function possible also use:
M14
75MM right front WHT 004 898 PR-1LA,1LB,
1LT |
1;;;;1
|
||||
(7)
|
114566
|
suspension guide hydro-mounting D - 20.06.2011>> *no 'fi' function possible also use:
M14
75MM right front WHT 004 898 |
1;;;;1
|
||||
8
|
bonded rubber bush *no 'fi' function possible to use for:
65MM
inner 8K0 407 693 T 8K0 407 694 T |
2
|
|||||
(8)
|
113967
|
hydro-mounting *no 'fi' function possible to use for: D >> - 20.06.2011
75MM
inner 8K0 407 693 S 8K0 407 694 S 8K0 407 693 Q 8K0 407 694 Q 8K0 407 693 AB 8K0 407 694 AB |
2
|
||||
(8)
|
113967
|
hydro-mounting D - 20.06.2011>>
|
2
|
||||
9
|
hex collared bolt
M12X1,5X120X90
|
2
|
|||||
9
|
hex collared bolt
M12X1,5X120X90
|
2
|
|||||
10
|
113471
|
guide
left front
upper |
1
|
||||
(10)
|
113472 |
guide
right front
upper |
1
|
||||
11
|
113473
|
guide
left rear
upper |
1
|
||||
(11)
|
113474 |
guide
right rear
upper |
1
|
||||
12
|
bonded rubber bush
|
4
|
|||||
13
|
hex collared bolt
M10X62X45
|
4
|
|||||
14
|
hexagon collar nut self-locking
M10
|
4
|
|||||
15
|
hex collared bolt D >> - 06.06.2011
M10X110X21
|
2
|
|||||
(15)
|
hex collared bolt D - 06.06.2011>>
CM10X110X24
|
2
|
|||||
16
|
hexagon collar nut self-locking
M10
|
2
|
|||||
17
|
bracket
left
|
1
|
|||||
(17)
|
bracket
right
|
1
|
|||||
18
|
hexagon head bolt (combi)
M10X35 S22
|
8
|
|||||
19
|
wheel bearing housing *no 'fi' function possible see parts bulletin: in conjunction: see workshop manual
COBAPRESS
left (4-36) 8K0 407 693 T 8K0 407 693 S |
1
|
|||||
(19)
|
wheel bearing housing *no 'fi' function possible see parts bulletin: in conjunction: see workshop manual D >> - 28.06.2010
KSM
left (4-36) 8K0 407 693 T 8K0 407 693 S |
1
|
|||||
(19)
|
wheel bearing housing *no 'fi' function possible see parts bulletin: in conjunction: see workshop manual D - 28.06.2010>> - 15.08.2011
KSM
left (4-36) 8K0 407 693 T 8K0 407 693 S |
1
|
|||||
(19)
|
wheel bearing housing *no 'fi' function possible see parts bulletin: in conjunction: see workshop manual
KSM
left (4-36) 8K0 407 693 Q 8K0 407 693 S 8K0 407 693 T 8K0 407 693 AA 8K0 407 693 AB 8K0 407 693 AC |
1
|
|||||
(19)
|
wheel bearing housing *no 'fi' function possible see parts bulletin: in conjunction: see workshop manual
COBAPRESS
left (4-36) 8K0 407 693 Q 8K0 407 693 S 8K0 407 693 T 8K0 407 693 AA 8K0 407 693 AB 8K0 407 693 AC |
1
|
|||||
(19)
|
wheel bearing housing *no 'fi' function possible see parts bulletin: in conjunction: see workshop manual
COBAPRESS
right (4-36) 8K0 407 694 T 8K0 407 694 S |
1
|
|||||
(19)
|
wheel bearing housing *no 'fi' function possible see parts bulletin: in conjunction: see workshop manual D >> - 28.06.2010
KSM
right (4-36) 8K0 407 694 T 8K0 407 694 S |
1
|
|||||
(19)
|
wheel bearing housing *no 'fi' function possible see parts bulletin: in conjunction: see workshop manual D - 28.06.2010>> - 15.08.2011
KSM
right (4-36) 8K0 407 694 T 8K0 407 694 S |
1
|
|||||
(19)
|
wheel bearing housing *no 'fi' function possible see parts bulletin: in conjunction: see workshop manual
KSM
right (4-36) 8K0 407 694 Q 8K0 407 694 S 8K0 407 694 T 8K0 407 694 AA 8K0 407 694 AB 8K0 407 694 AC |
1
|
|||||
(19)
|
wheel bearing housing *no 'fi' function possible see parts bulletin: in conjunction: see workshop manual
COBAPRESS
right (4-36) 8K0 407 694 Q 8K0 407 694 S 8K0 407 694 T 8K0 407 694 AA 8K0 407 694 AB 8K0 407 694 AC |
1
|
|||||
20
|
113165
|
swivel joint D >> - 15.08.2011
M12
|
2
|
||||
(20)
|
114357
|
swivel joint D - 15.08.2011>> - 23.01.2012
M14
|
2
|
||||
(20)
|
114357
|
swivel joint D - 23.01.2012>>
M14
|
2
|
||||
21
|
hex collared bolt
M10X65
|
2
|
|||||
22
|
115429
|
wheel hub
|
2
|
||||
(22)
|
115429
|
wheelhub with bearing also use:
WHT 000 237 A
8E0 407 643 A |
2
|
||||
23
|
113238
|
wheel bearing with assembly parts
|
2
|
||||
23
|
113238 |
wheel bearing with assembly parts
front
not for: "RUS"
|
2
|
||||
(23)
|
wheel bearing with assembly parts
front
only for: "RUS"
|
2
|
|||||
24
|
ball screw
M12X1,5X45
|
8
|
|||||
25
|
31324
|
socket head bolt with inner multipoint head
M16X1,5X72
|
2
|
||||
26
|
suspension forks
left
|
1
|
|||||
26
|
suspension forks
left
|
1
|
|||||
(26)
|
suspension forks
right
|
1
|
|||||
(26)
|
suspension forks
right
|
1
|
|||||
27
|
hexagon head bolt (combi)
M12X1,5X80
|
2
|
|||||
28
|
hexagon collar nut self-locking
M12X1,5
|
4
|
|||||
29
|
hexagon bolt
M12X1,5X85
|
2
|
|||||
30
|
113367
|
coupling rod
plastic
170MM |
2
|
||||
31
|
hexagon bolt
M10X45
|
1
|
|||||
32
|
bolt,hex.hd.with shoul.(combi)
M10X60
|
2
|
|||||
33
|
hexagon collar nut self-locking
M10
|
2
|
|||||
34
|
anti-roll bar
front
25,6MM PR-K8C
|
1
|
|||||
(34)
|
anti-roll bar D >> - 18.01.2010
front
26,5MM PR-K8R+
1BD,1BE,1BV |
1
|
|||||
(34)
|
anti-roll bar D - 18.01.2010>>
front
26,5MM PR-K8R+
1BE,1BV |
1
|
|||||
(34)
|
anti-roll bar D - 18.01.2010>>
front
25,6MM PR-K8R+1BD
|
1
|
|||||
(34)
|
anti-roll bar
front
25,6MM PR-K8R+1BA,
1BL |
1
|
|||||
(34)
|
anti-roll bar
front
25,0MM PR-1BB
|
1
|
|||||
35
|
113977
|
rubber bush
PR-K8C
|
2
|
||||
(35)
|
113977
|
rubber bush
PR-K8R+1BA,
1BL,1BB |
2
|
||||
(35)
|
107988
|
rubber bush D >> - 18.10.2010
PR-K8R+
1BD,1BE,1BV |
2
|
||||
(35)
|
107988
|
rubber bush D - 18.01.2010>>
PR-K8R+
1BE,1BV |
2
|
||||
(35)
|
113977
|
rubber bush D - 18.01.2010>>
PR-K8R+1BD
|
2
|
||||
36
|
clamp
front
|
2
|
|||||
37
|
hexagon collar nut self-locking
M8
|
4
|
|||||
40
|
washer D >> - 06.06.2011
10,5X20X2
|
2
|
|||||
(40)
|
washer D - 06.06.2011>> discont. / replacement item:
15
|
2
|
