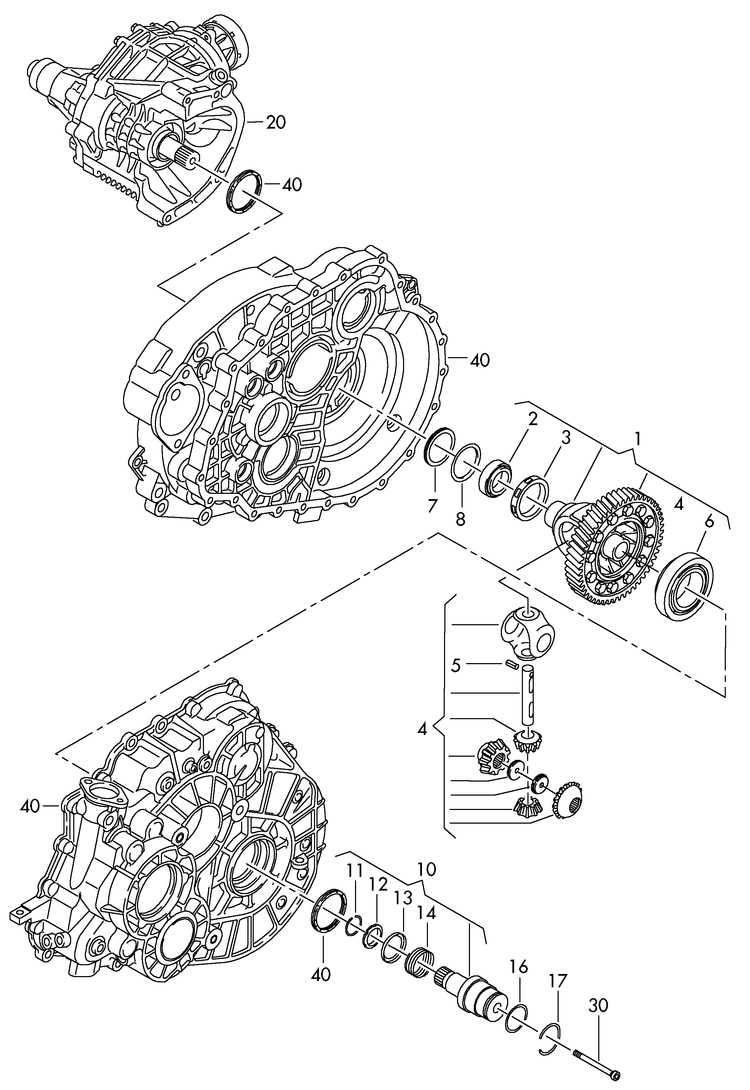

Collection: 409-017 T5.1 (7E) 2010>2015 inner Stub shaft>Driveshaft MQ500,KUP,MKB
|
|
differential stub shaft 6-speed manual transmission |
MQ500 Model data: KUP,MKB |
| 1 |
|
|
differential |
69/15/21/19 |
| 2 |
|
Cancelled since 01.02.2013 |
taper roller bearing |
55X90X23 |
| 3 |
|
|
impulse rotor |
|
| 4 |
|
|
1 set: differential pinions |
|
| 5 |
|
|
spannhuelse |
5,4X35 |
| 6 |
|
|
taper roller bearing |
78X121X25 |
| 7 |
|
|
washer |
62X78X2,8 |
| 8 |
|
|
1 set shims |
0,65-1,25 |
| 10 | 102278 |
|
|
stub shaft |
|
| 10A |
|
|
universal grease |
50G |
| 11 |
|
|
securing ring |
35 |
| 12 |
|
|
tapered ring |
|
| 13 |
|
|
thrust washer |
35,5X46,5 |
| 14 |
|
|
pressure spring |
|
| 16 |
|
|
o-ring |
30X2,5 |
| 17 |
|
|
snap ring |
left |
| 30 |
|
|
socket head bolt with hexagon socket head |
M8X93,6 |
|
| 40 |
|
gear housing radial shaft seal see illustration: |
301-24 |
