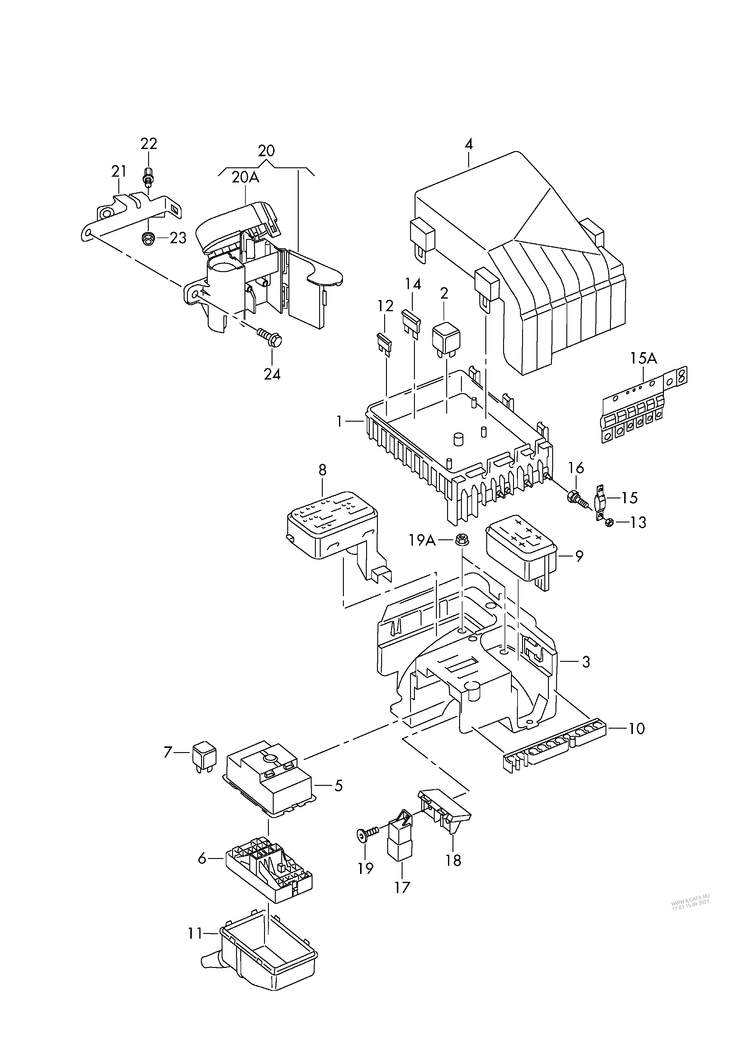

Collection: 937-020 Tiguan central electrics for engine bay
|
2
|
109544
|
contact close relay relay location/code no.:
/100
|
X
|
|
|
(2)
|
|
jumper relay location:
2
|
1
|
|
|
3
|
|
bracket - relay plate/fuse box
|
1
|
|
|
4
|
|
cover
|
1
|
|
|
(4)
|
|
cover to use for:
1K0 937 125 C
|
1
|
|
|
8
|
|
flat contact housing
40 pin
|
1
|
|
|
10
|
|
cable holder
|
1
|
|
|
12
|
104481
|
flat fuse 19/2x5
10a -red-
|
X
|
|
|
(12)
|
104482
|
flat fuse 19/2x5
15a -lt blue-
|
X
|
|
|
(12)
|
113244
|
flat fuse 19/2x5
25a -cl.glass-
|
X
|
|
|
(12)
|
113245
|
flat fuse 19/2x5
5a -lt brown-
|
X
|
|
|
(12)
|
|
flat fuse 19/2x5
40A-ORANGE-
|
X
|
|
|
(12)
|
|
flat fuse 19/2x5
20a -yellow-
|
X
|
|
|
(12)
|
|
flat fuse 19/2x5
30a-lt green-
|
X
|
|
|
13
|
|
hexagon collar nut self-locking
M5
|
X
|
|
|
14
|
|
flat fuse 29/2x8
40a -orange-
|
X
|
|
|
(14)
|
|
flat fuse 29/2x8
30a-lt green-
|
X
|
|
|
(14)
|
104513
|
flat fuse 29/2x8
50a -red-
|
X
|
|
|
15
|
|
fuse D >> - 03.11.2008
40A-GRUEN-
|
X
|
|
|
(15)
|
|
fuse
50a -red-
|
X
|
|
|
(15)
|
|
fuse D >> - 03.11.2008
70a -brown-
|
X
|
|
|
(15)
|
|
fuse D >> - 03.11.2008
80a -white-
|
X
|
|
|
(15)
|
|
fuse D >> - 03.11.2008
100a -blue-
|
X
|
|
|
(15)
|
|
fuse D >> - 03.11.2008
125a -pink-
|
X
|
|
|
(15)
|
|
fuse D >> - 03.11.2008
150a -grey-
|
X
|
|
|
(15)
|
|
fuse D >> - 03.11.2008
200a -violet-
|
X
|
|
|
15A
|
|
multi-fuse D - 03.11.2008>> to use for:
200A
1K0 937 125 D |
1
|
|
|
(16)
|
|
shouldered bolt
M5X7,5X13,5
|
X
|
|
|
17
|
115860
|
control unit for glow plug
|
1
|
