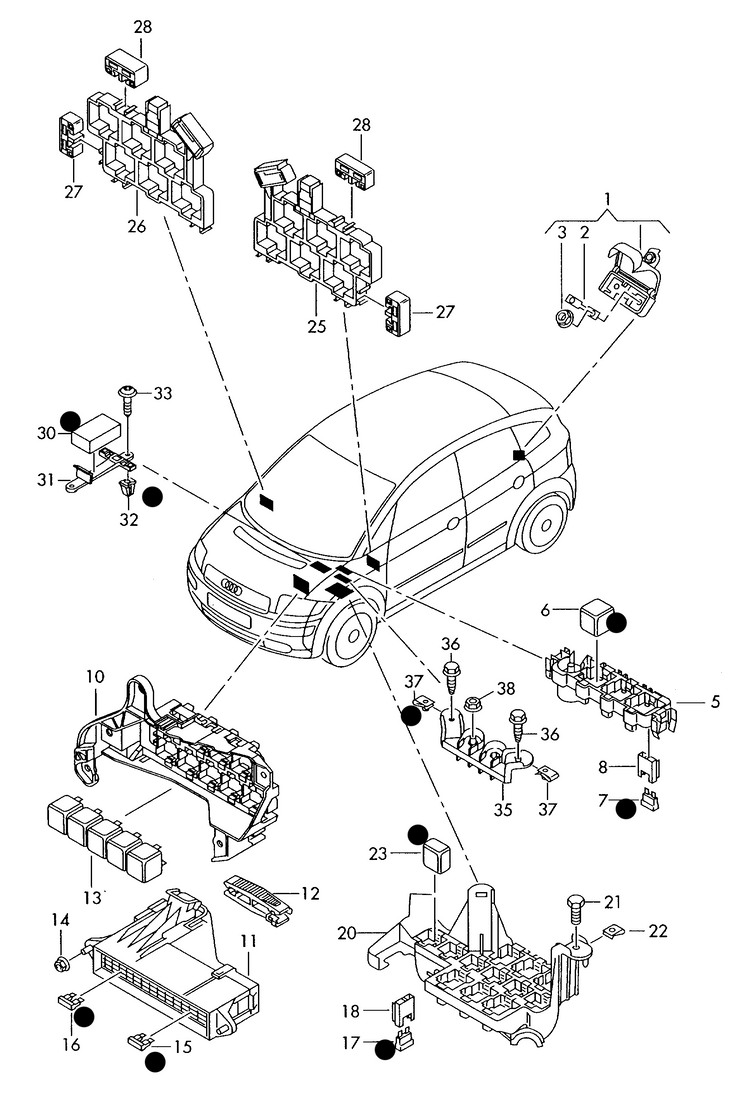

Collection: 937-000 Audi A2 2000>2005 central electrics, fuse box, relay carrier, relays ‘Please select parts from links below, prices will update’
| № | Number | Description | Cnt | Date | |||
|---|---|---|---|---|---|---|---|
| fuse socket terminal clamp B+ |
|||||||
|
1
|
fuse box with fuse F >> 8Z-1-010 000 *
1 point
|
1
|
11.1999 - 10.2000
|
||||
|
(1)
|
|
fuse box with fuse
1 point
|
1
|
||||
|
(1)
|
|
fuse box with fuse for vehicles with additional electric air heater F 8Z-3-030 001>> *
2 point
PR-7E6,7E7
|
1
|
09.2002 - 08.2005
|
|||
|
2
|
113778
|
fuse
150A
|
X
|
||||
|
3
|
|
hexagon collar nut
M6
|
X
|
||||
| relay plate 3 point |
|||||||
|
5
|
|
relay plate
|
1
|
||||
|
(6)
|
109544 |
contact close relay engine control relay location/code no.:
1/614
ATL
|
1
|
||||
|
6
|
109933
|
contact close relay control unit for glow plug relay location/code no.:
1/202
AMF,BHC
|
1
|
||||
|
6
|
109933
|
contact close relay control unit for glow plug relay location/code no.: F >> 8Z-4-020 000 *
1/202
ANY
|
1
|
11.1999 - 01.2004
|
|||
|
(6)
|
109544
|
contact close relay for rapid glow system relay location/code no.: F 8Z-4-020 001>> *
1/614
ANY
|
1
|
02.2004 - 08.2005
|
|||
|
(6)
|
116262 |
contact close relay relay location/code no.:
1/428
BAD
|
1
|
||||
|
(6)
|
111216
|
control unit for glow plug relay location/code no.: to be used for code no.:
2/461
471 ATL
|
1
|
||||
|
(6)
|
59361
|
contact close relay engine control relay location/code no.:
2/219
ANY,AMF,BHC
|
1
|
||||
|
7
|
104481
|
flat fuse 19/2x5
10a -red-
|
X
|
||||
|
(7)
|
104482
|
flat fuse 19/2x5
15a -lt blue-
|
X
|
||||
|
(7)
|
|
flat fuse 19/2x5
30a-lt green-
|
X
|
||||
|
(7)
|
104484
|
flat fuse 19/2x5
30a-lt green-
|
X
|
||||
|
(7)
|
113245
|
flat fuse 19/2x5
5a -lt brown-
|
X
|
||||
|
(7)
|
104511
|
flat fuse 29/2x8
40a -orange-
|
X
|
||||
|
(7)
|
104512
|
flat fuse 29/2x8
60a -lt blue-
|
X
|
||||
|
(7)
|
104514
|
flat fuse 29/2x8
80a -cl/glass-
|
X
|
||||
|
8
|
|
fuse holder flat fuse 29/2x8
2 pin
|
X
|
||||
|
(8)
|
fuse adaptor flat fuse 19/2x5
2 pin
|
X
|
|||||
| relay plate fuse holder 9-point |
|||||||
|
10
|
relay plate
lhd
|
1
|
|||||
|
(10)
|
|
relay plate
rhd
|
1
|
||||
|
11
|
|
fuse holder
lhd
|
1
|
||||
|
(11)
|
|
fuse holder
rhd
|
1
|
||||
|
12
|
|
assembly tool for blade fuse
|
1
|
||||
|
13
|
109544
|
contact close relay relay location/code no.: to be used for code no.:
lhd
1/100 370 ANY
|
1
|
||||
|
13
|
109544
|
relay relay location/code no.:
lhd
1/370 ANY
|
1
|
||||
|
(13)
|
109544
|
contact close relay for additional heater relay location/code no.: to be used for code no.:
rhd
'PTC' 1/100 370 |
1
|
||||
|
(13)
|
109544
|
relay for additional heater relay location/code no.:
rhd
'PTC' 1/370 |
1
|
||||
|
(13)
|
|
contact close relay for additional heater relay location/code no.: to be used for code no.:
40A
'PTC' 2/643 373 |
1
|
||||
|
(13)
|
|
relay for additional heater relay location/code no.:
rhd
'PTC' 2/373 |
1
|
||||
|
(13)
|
115664
|
contact close relay radiator fan for vehicles with no air conditioning system relay location/code no.: to be used for code no.:
rhd
i./ii. stage 2/404 395 BAD
|
2
|
||||
|
(13)
|
115664
|
relay radiator fan for vehicles with no air conditioning system relay location/code no.:
rhd
i./ii. stage 2/395 BAD
|
2
|
||||
|
(13)
|
115664
|
contact close relay electronic stabilisation program -esp- relay location/code no.: to be used for code no.: F >> 8Z-3-022 000 *
3/404
395 |
1
|
11.1999 - 11.2002
|
|||
|
(13)
|
115664
|
relay electronic stabilisation program -esp- relay location/code no.: F >> 8Z-3-022 000 *
3/395
|
1
|
11.1999 - 11.2002
|
|||
|
(13)
|
115664
|
contact close relay for additional heater relay location/code no.: to be used for code no.:
lhd
'PTC' 4/100 370 |
1
|
||||
|
(13)
|
109544
|
relay for additional heater relay location/code no.:
lhd
'PTC' 4/370 |
1
|
||||
|
(13)
|
|
contact close relay for horn relay location/code no.: to be used for code no.:
40A
5/643 53+373 |
1
|
||||
|
(13)
|
|
relay for horn relay location/code no.: to be used for code no.:
40A
5/373 53 |
1
|
||||
|
(13)
|
102409
|
relay for horn relay location/code no.:
lhd
5/53 |
1
|
||||
|
(13)
|
|
contact close relay for horn relay location/code no.: to be used for code no.:
40A
4/643 53+373 |
1
|
||||
|
(13)
|
|
relay for horn relay location/code no.: to be used for code no.:
40A
4/373 53 |
1
|
||||
|
(13)
|
102409
|
relay for horn relay location/code no.:
rhd
4/53 |
1
|
||||
|
(13)
|
|
control unit for headlight, brake and tail light control relay location/code no.:
lhd
6+7/393 |
1
|
||||
|
(13)
|
|
control unit for headlight, brake and tail light control relay location/code no.:
rhd
7+8/393 |
1
|
||||
|
(13)
|
|
contact close relay for additional heater relay location/code no.: to be used for code no.:
40A
'PTC' 8/643 373 |
1
|
||||
|
(13)
|
|
relay for additional heater relay location/code no.:
lhd
'PTC' 8/373 |
1
|
||||
|
(13)
|
115664
|
contact close relay radiator fan for vehicles with no air conditioning system relay location/code no.: to be used for code no.:
lhd
i./ii. stage 8/404 395 BAD
|
2
|
||||
|
(13)
|
115664
|
relay radiator fan for vehicles with no air conditioning system relay location/code no.:
lhd
i./ii. stage 8/395 BAD
|
2
|
||||
|
(13)
|
109544
|
contact close relay for relief relay x contact relay location/code no.: to be used for code no.:
50A
9/100 370 |
1
|
||||
|
(13)
|
109544
|
relay for relief relay x contact relay location/code no.:
50A
9/370 |
1
|
||||
|
14
|
|
hex. nut with washer
M6
|
X
|
||||
|
14
|
|
hex. nut with washer
M6
|
X
|
||||
|
15
|
104516
|
flat fuse 10/2x2,8
5a -lt brown-
|
X
|
||||
|
(15)
|
104517
|
flat fuse 10/2x2,8
7.5a -brown-
|
X
|
||||
|
(15)
|
104518
|
flat fuse 10/2x2,8
10a -red-
|
X
|
||||
|
(15)
|
207923
|
flat fuse 10/2x2,8
15a -lt blue-
|
X
|
||||
|
(15)
|
207924
|
flat fuse 10/2x2,8
20a -yellow-
|
X
|
||||
|
16
|
104481
|
||||||
