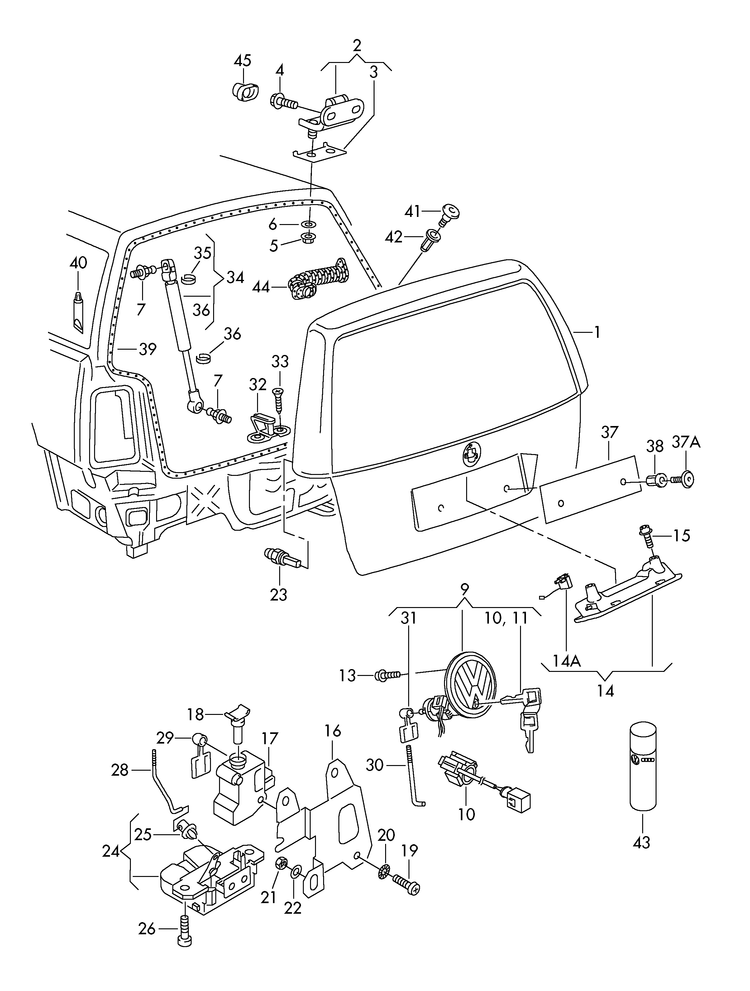

Collection: 827-030 Tailgate/Latch/Lock/Struts Golf mk4 estate models only!
| 17 | servomotor tailgate/boot lid lock, electrically operated |
1 | 113153 | ||
| 18 | connecting piece remote control |
1 | |||
| 19 | fillister hd. bolt | M4X10 | 2 | ||
| 20 | retaining washer | 4,3 | 2 | ||
| 21 | hexagon nut, self-locking | AM6 | 3 | ||
| 23 | stop buffer, adjustable | 2 | |||
| (24) | lid lock | 1 | 110945 | ||
| satin black | |||||
| 25 | clip | 1 | 111134 | ||
| 26 | socket head bolt with inner multipoint head |
M8X20-W | 2 | ||
| 28 | pull rod | 100MM | 1 | ||
| 29 | clip | 1 | |||
| 30 | pull rod | 86MM | 1 | ||
| 31 | clip | 1 | |||
| 32 | striker plate F >> 1J-2W143 388 F >> 1J-2W149 383 |
1 1 |
|||
| 32 | striker plate | 1 | |||
| 32 | striker plate | 1 | |||
| 33 | locating bolt | M8X12X23-J | 2 | ||
| 34 | gas filled strut | 2 | 109902 |
