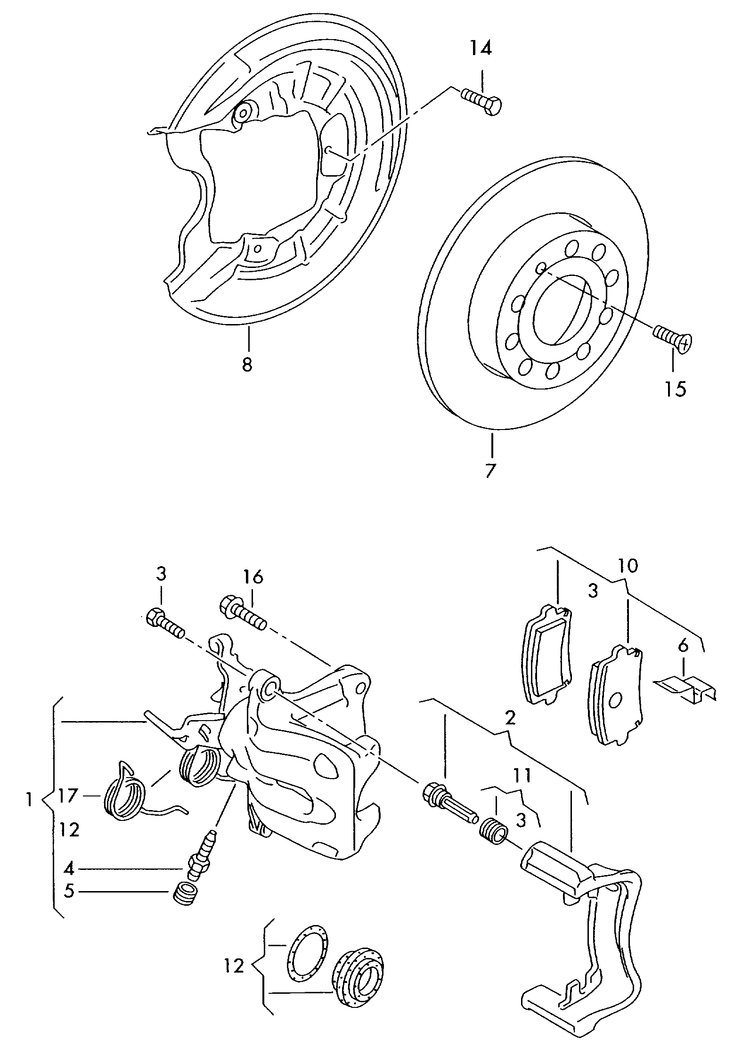

Collection: 615-070 A4 8K floating caliper brake brake caliper housing brake carrier with pad retaining pin brake disc (vented) S4+PR-1KE TRW-GIRLING rear 330X22MM 5/112
| № | Number | Description | Cnt | Date | |||
|---|---|---|---|---|---|---|---|
| floating caliper brake brake caliper housing brake carrier with pad retaining pin brake disc (vented) S4+PR-1KE TRW-GIRLING rear 330X22MM 5/112 |
|||||||
|
1
|
|
bolt, hex. hd. with shoulder, self-locking D >> - 08.11.2010
M8X22
|
4
|
||||
|
(1)
|
|
bolt, hex. hd. with shoulder, self-locking D - 08.11.2010>>
M8X22
|
2
|
||||
|
(1)
|
|
balance weight with hexagon bolt D - 08.11.2010>>
M8X22,15
|
2
|
||||
|
2
|
|
dust cap
|
2
|
||||
|
2
|
|
dust cap
|
2
|
||||
|
3
|
|
breather valve
|
2
|
||||
|
4
|
POA |
brake caliper housing with servomotor
left
|
1
|
||||
|
(4)
|
POA |
brake caliper housing with servomotor
right
|
1
|
||||
|
5
|
no replacement part
|
||||||
|
6
|
|
brake carrier with pad retaining pin
left
|
1
|
||||
|
(6)
|
|
brake carrier with pad retaining pin
right
|
1
|
||||
|
7
|
|
servomotor for brake calliper housing with assembly parts
|
2
|
||||
|
8
|
|
o-ring
|
2
|
||||
|
9
|
|
socket head bolt with inner hex round head
M6X12
|
4
|
||||
|
10
|
|
self-locking bolt
M12X1,5X38
|
2
|
||||
|
11
|
|
self-locking bolt
M12X1,5X62
|
2
|
||||
|
(12)
|
113012
|
brake disc (vented) D >> - 08.11.2010
330X22MM 5/112
|
2
|
||||
|
(12)
|
113012
|
brake disc (vented)
330X22MM 5/112
|
2
|
||||
|
(12)
|
113012
|
brake disc (vented) D - 08.11.2010>>
330X22MM 5/112
|
2
|
||||
|
13
|
|
hex socket countersunk bolt
M6X16
|
2
|
||||
|
14
|
|
cover plate
left
|
1
|
||||
|
(14)
|
|
cover plate
right
|
1
|
||||
|
15
|
|
hexagon socket flat head bolt
M6X12
|
8
|
||||
|
(16)
|
112171
|
1 set of brake pads for disk brake use if required: D >> - 08.11.2010
330X22MM
N 010 241 24 |
1;;2
|
||||
|
16
|
112171
|
1 set of brake pads for disk brake D >> - 08.11.2010
330X22MM
|
1
|
||||
|
(16)
|
112171
|
1 set of brake pads for disk brake use if required: D - 08.11.2010>>
330X22MM
WHT 001 921 |
1;;2
|
||||
|
17
|
|
retaining spring
|
4
|
||||
|
18
|
|
1 set protective sleeves for guide pins
|
2
|
||||
|
19
|
|
set of gaskets for brake caliper housing
|
1
|
||||
|
20
|
POA |
control unit for electro- mechanical parking brake F >> 8K-9A220 000 * F >> 8K-9N060 000 * F >> 8K-9Y000 350 *
|
1
|
11.2008 - 02.2009
|
|||
|
20
|
POA |
control unit for electro- mechanical parking brake F >> 8K-9-400 000
|
1
|
||||
|
20
|
POA |
control unit for electro- mechanical parking brake
|
1
|
||||
|
21
|
|
hexagon collar nut
M6
|
2
|
||||
|
22
|
|
solid lubricant paste
100G
|
X
|
||||
|
23
|
|
lithium lubricating grease
180G
|
X
|
||||
|
25
|
|
flat contact housing
2 pin
|
2
|
||||
