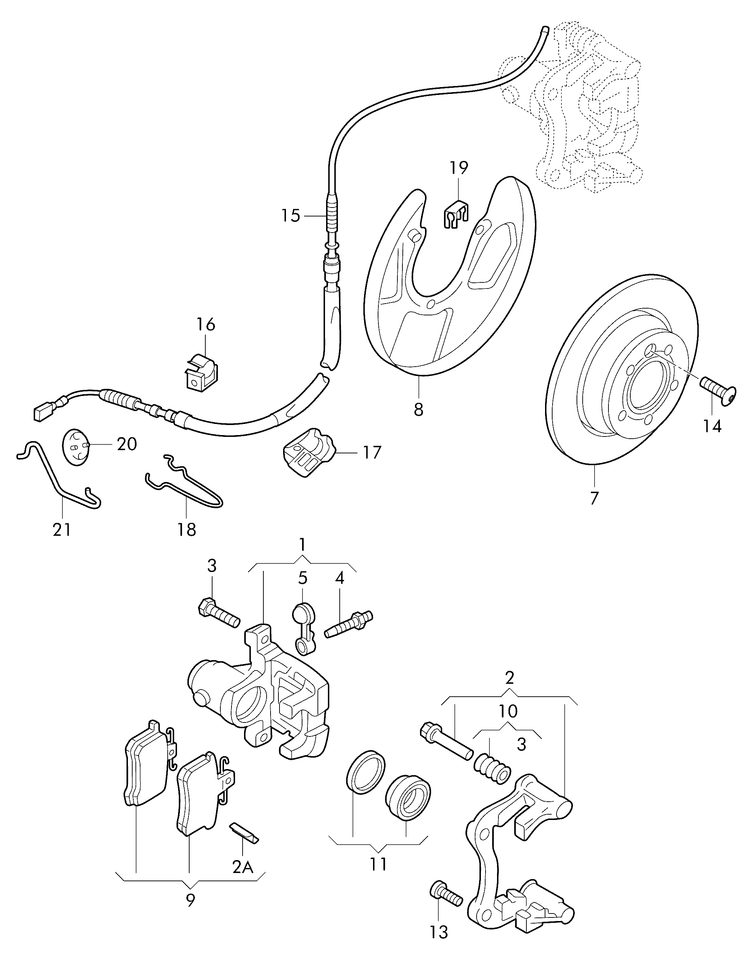

Collection: 615-061 VW Polo 6N 2000>2002 Rear floating caliper brake brake caliper housing brake carrier with pad retaining pin brake disc brake cable PR-1KE "J.."PR-2EK
| № | Name | Ext. inf. | A* | Use of | Part number | A |
|---|---|---|---|---|---|---|
| disc brake | PR-1KE "J.."PR-2EK |
|||||
| floating caliper brake brake caliper housing brake carrier with pad retaining pin brake disc brake cable |
PR-1KE "J.."PR-2EK |
|||||
| 1 | brake caliper housing | 1 | 6N0 615 423 B | 40 | ||
| (1) | brake caliper housing | 1 | 6N0 615 424 B | 31 | ||
| 2 | brake carrier with pad retaining pin |
1 | 6N0 615 425 B | 1 | ||
| (2) | brake carrier with pad retaining pin |
1 | 6N0 615 426 B | 1 | ||
| 2A | intermediate plate | 4 | 1J0 615 231 | 13 | ||
| 3 | bolt, hex. hd. with shoulder, self-locking |
4 | 8E0 615 141 | - | ||
| 4 | breather valve | 2 | 4D0 615 273 | 1 | ||
| 5 | dust cap | 2 | 211 611 483 | 2 | ||
| (7) | brake disc | 2 | 6N0 615 601 A | 111 | ||
| 8 | cover plate for brake disc | 1 | 6N0 615 611 | - | ||
| (8) | cover plate for brake disc | 1 | 6N0 615 612 | - | ||
| (9) | 1 set of brake pads for disk brake |
1 | 1J0 698 451 F | 176 | ||
| (9) | 1 set of brake pads for disk brake 'eco' economy |
1 | JZW 698 451 A | 80 | ||
| (9) | 1 set of brake pads for disk brake |
1 | 1J0 698 451 | 181 | ||
| 10 | 1 set protective sleeves for guide pins |
2 | 1K0 698 470 | 7 | ||
| 10 | 1 set protective sleeves for guide pins |
2 | 8E0 698 470 | 10 | ||
| 11 | set of gaskets for brake caliper housing |
1 | 6N0 698 471 | 7 | ||
| 13 | socket head bolt with hexagon socket head |
4 | N 907 403 01 |
