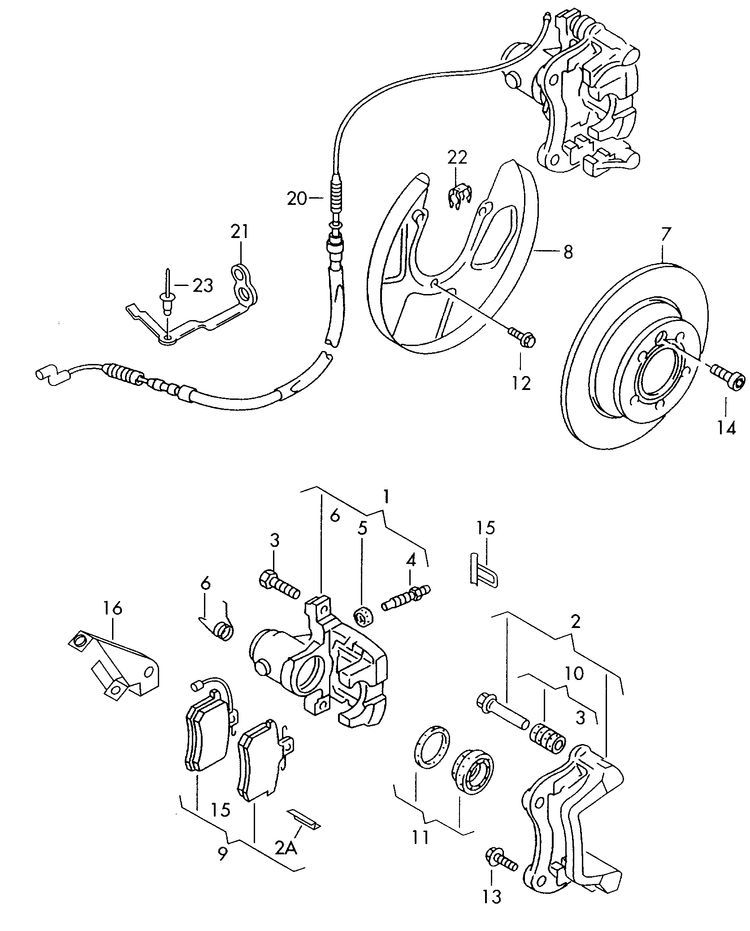

Collection: 615-060 T4 7D Rear brakes (280mm solid discs) PR-2E2
| № | Name | Ext. inf. | qty* | Use of | Part number |
|---|---|---|---|---|---|
| disc brake brake cable |
|||||
| 1 | brake caliper housing >mid 1997 F >> 70-V-120 000* |
L/H |
1 |
LCA1208 | |
| (1) | brake caliper housing mid 1997> F 70-V-120 001>>* |
L/H |
1 |
115681 | |
| (1) | brake caliper housing > mid 1997 F >> 70-V-120 000* |
R/H |
1 |
RCA1208 | |
| (1) | brake caliper housing mid 1997> F 70-V-120 001>>* |
R/H |
1 |
115682 | |
| 2 | brake carrier with pad retaining pin 1997> |
2E2 |
2 | 115683 | |
| (2A) |
Caliper slide pin kit 1997> |
2E2 |
1 |
115683KP1 |
|
| 3 | bolt, hexagon head self-locking |
4 | 110710 | ||
| 4 | breather valve | 1 | 107504 | ||
| 7 | brake disc 280mm |
2E2 | 2 | 108915 | |
| 8 | cover plate for brake disc 280mm |
2E2 | 2 | 116826 | |
| 9 | 1 set of brake pads for disk brake >04/1997 |
1 | 107238 | ||
| 9 | 1 set: brake pads with wear indicator for disc brake 1999> |
1 | 109474 | ||
| 9 | 1 set of brake pads for disk brake 1997>1999 |
1 | 109472 | ||
| 10 | 1 set protective sleeves for guide pins |
2 | ST1148 | ||
| 11 | set of gaskets for brake caliper housing |
1 | 107083A | ||
| 15 | brake cable F >> 70-V-120 000* |
96>97 |
2 |
108109 | |
| (15) | brake cable F 70-V-120 001>>* |
97> |
2 |
109703 |
