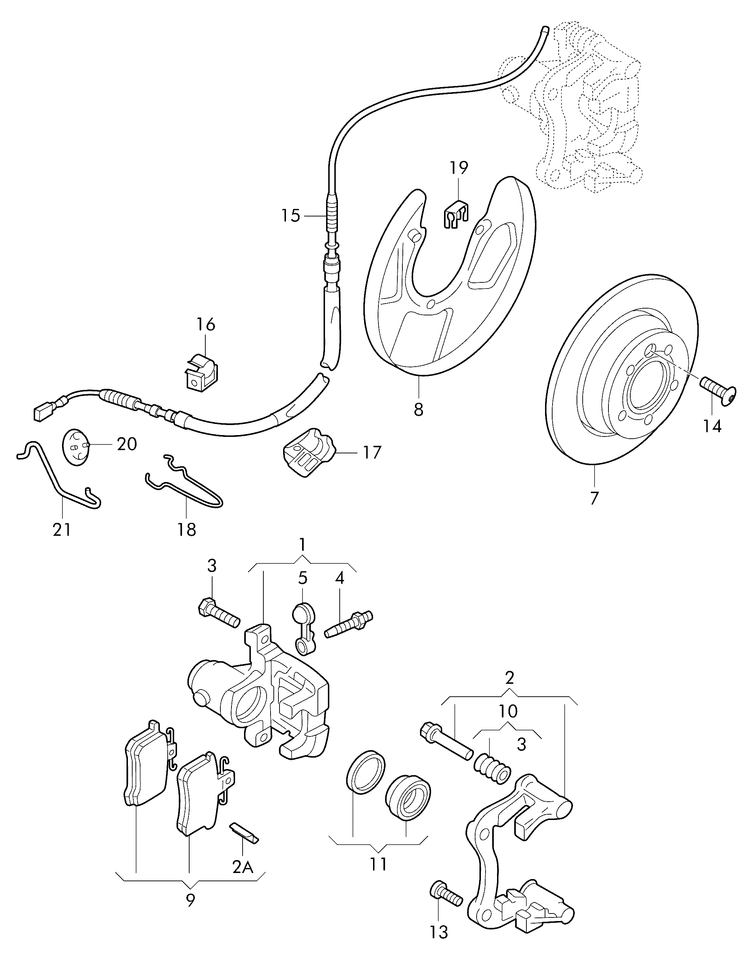

Collection: 615-060 G3 Rear floating caliper brake brake caliper housing calliper carrier brake disc brake cable
| № | Name | Ext. inf. | qty | Use of | Part number | |
|---|---|---|---|---|---|---|
| floating caliper brake | ||||||
| floating caliper brake brake caliper housing calliper carrier brake disc brake cable |
||||||
| (1) | brake caliper housing F 1H-PW240 001>>* F 1H-PB030 001>>* |
L/H |
1 |
10514 | ||
| 1 | brake caliper housing F >> 1H-PW240 000* F >> 1H-PB030 000* |
L/H |
1 |
528841 | ||
| (1) | brake caliper housing F 1H-PW240 001>>* F 1H-PB030 001>>* |
L/H |
1 |
10514 | ||
| (1) | brake caliper housing F 1H-PW240 001>>* F 1H-PB030 001>>* |
R/H |
1 |
10515 | ||
| (1) | brake caliper housing F >> 1H-PW240 000* F >> 1H-PB030 000* |
R/H |
1 |
528842 | ||
| (1) | brake caliper housing F 1H-PW240 001>>* F 1H-PB030 001>>* |
R/H |
1 |
10515 | ||
| - | 1 set: brake caliper housing F >> 1H-PW240 000* F >> 1H-PB030 000* |
1 | ||||
| 2 | brake carrier with pad retaining pin |
L/H | 1 | 10514CC1 | ||
| (2) | brake carrier with pad retaining pin |
R/H | 1 | 10515CC1 | ||
| 1 set brake caliper housing w. brake pads (complete) F >> 1H-PW240 000* F >> 1H-PB030 000* |
1 |
|||||
| 3 | socket head bolt with hexagon socket head |
4 | ||||
| 4 | bolt, hexagon head self-locking |
4 | 110710 | |||
| 5 | breather valve | 2 | 107504 | |||
| 6 | dust cap | 2 | ||||
| 7 | brake disc 4stud |
automatic: GL:2E GT:ABS "J..".GLI |
2 | 103526 | ||
| (7) | brake disc 5stud |
AAA,ABF GTI:2E "J..":GTI VR6 |
2 | 103527 | ||
| (8) | cover plate for brake disc | 1 | ||||
| (8) | cover plate for brake disc | 1 | ||||
| 9 | hexagon bolt | 8 | ||||
| 9A | belleville spring | 8 | ||||
| 9 | hexagon head bolt (combi) | 8 | ||||
| 9 | hexagon head bolt (combi) | 8 | ||||
| (11) | 1 set of brake pads for disk brake F >> 1H-PW240 000* F >> 1H-PB030 000* |
2E,ABF,AAA GT:ABS GL:2E |
1 |
103074 | ||
| (11) | 1 set of brake pads for disk brake F 1H-PW240 001>>* F 1H-PB030 001>>* |
export markets 2E,ABF,AAA "J..":AAA |
1 |
103074 | ||
| (11) | 1 set of brake pads for disk brake 'eco' F 1H-PW240 001>>* F 1H-PB030 001>>* economy |
export markets 2E,ABF,AAA "J..":AAA |
1 |
103074 | ||
| (11) | 1 set of brake pads for disk brake F 1H-PW240 001>>* F 1H-PB030 001>>* |
export markets 2E,ABF,AAA "J..":AAA |
1 |
103074 | ||
| (11) | 1 set of brake pads for disk brake F 1H-PW240 001>>* F 1H-PB030 001>>* |
GT:ABS "J..":2E |
1 |
103074 | ||
| (11) | 1 set of brake pads for disk brake F 1H-PW240 001>>* F 1H-PB030 001>>* |
"D..":2E,ABF AAA |
1 |
103074 | ||
| (11) | 1 set of brake pads for disk brake F 1H-PW240 001>>* F 1H-PB030 001>>* |
GT:ABS GL:2E "J..":2E |
1 |
103074 | ||
| (11) | 1 set of brake pads for disk brake F 1H-PW240 001>>* F 1H-PB030 001>>* |
"D..":ABF, AAA GTI:2E |
1 |
103074 | ||
| (11) | 1 set of brake pads for disk brake 'eco' F 1H-PW240 001>>* F 1H-PB030 001>>* economy |
"D..":ABF, AAA GTI:2E |
1 |
103074 | ||
| (11) | 1 set of brake pads for disk brake F 1H-PW240 001>>* F 1H-PB030 001>>* |
"D..":ABF, AAA GTI:2E |
1 |
103074 | ||
| 12 | 1 set protective sleeves for guide pins |
2 | SP9896 | |||
| 13 | set of gaskets for brake caliper housing |
1 | ||||
| 13 | set of gaskets for brake caliper housing |
1 | 108083A | |||
| 14 | brake cable | 1613mm | 2 | 103063 | ||
| 15 | bracket | 2 | ||||
| 16 | spring clip F >> 1H-PW240 000* F >> 1H-PB030 000* |
2 |
||||
| (16) | spring clip F 1H-PW240 001>>* F 1H-PB030 001>>* |
2 |
||||
| 17 | clip | 2 | ||||
| 18 | bracket | 2 | ||||
| (18) | distance piece | 2 | ||||
| - | lithium lubricating grease | X | ||||
| - | solid lubricant paste | X | ||||
| - | rotor for speed sensor | 2 | ||||
| impulse rotor | ||||||
| - | intermediate plate | 4 | ||||
| - | rotor for speed sensor | 2 | 109113 | |||
| - | retrofit kit balance weight |
GOLF GT 66KW | 1 |
