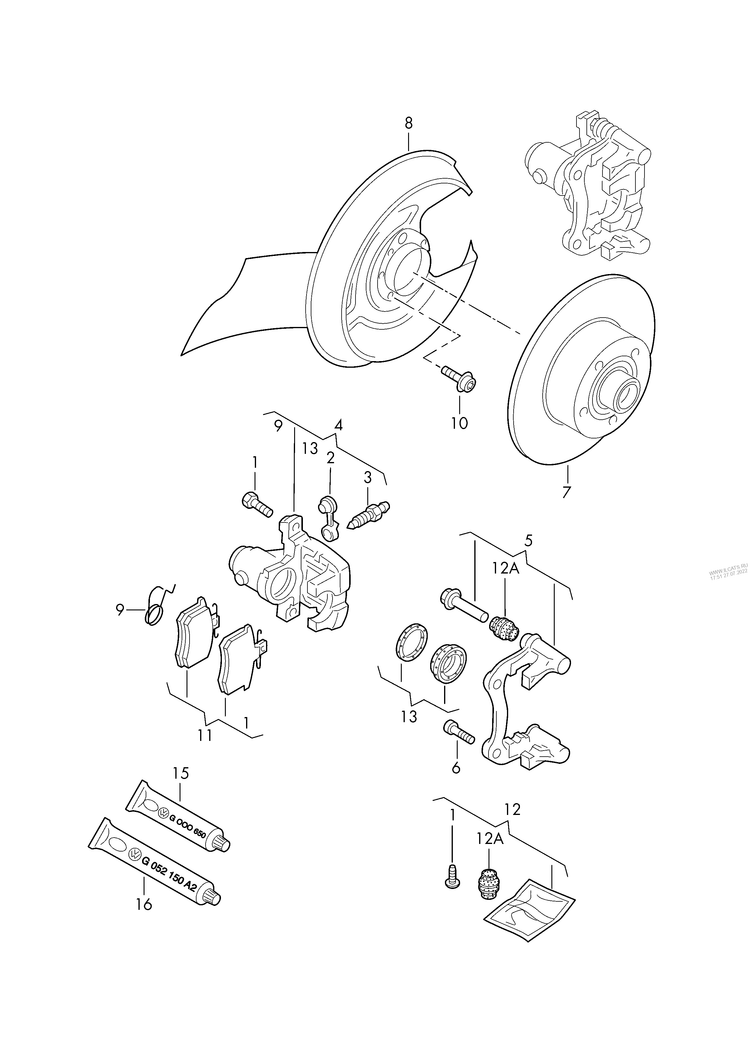

615-060 A6 4B Rear floating caliper brake brake caliper housing brake carrier with pad retaining pin brake disc 4-,6-cyl. LUCAS 245X10MM 5/112

№ Number Description Cnt Date
floating caliper brake brake caliper housing brake carrier with pad retaining pin brake disc
4-,6-cyl.
rear
LUCAS
245X10MM 5/112
1
110709
bolt, hex. hd. with shoulder, self-locking
M8X22-MK
4
2
211611483
dust cap
2
3
1K0615273A
breather valve
M10X1X29MM
2
3
447615273
breather valve
M10X1
2
4
110284
brake caliper housing
left
1
(4)
110285
brake caliper housing
right
1
5
110285KP1
brake carrier with pad retaining pin
2
6
N90688901
socket head bolt with hexagon socket head
M10X1,25X20
4
7
103757
brake disc
245X10MM 5/112
2
8
8E0615611C
cover plate for brake disc
left
1
(8)
8E0615612C
cover plate for brake disc
right
1
9
8E0615295
spring
left
1
(9)
8E0615296
spring
right
1
10
N0147214
socket head bolt
M10X25
10
11
107239
1 set of brake pads for disk brake
245X10
1
11
107239
1 set of brake pads for disk brake
245X10MM
1
12
109967
1 set protective sleeves for guide pins
2
12A
no replacement part included in position:
5,12
13
107083A
set of gaskets for brake caliper housing
1
