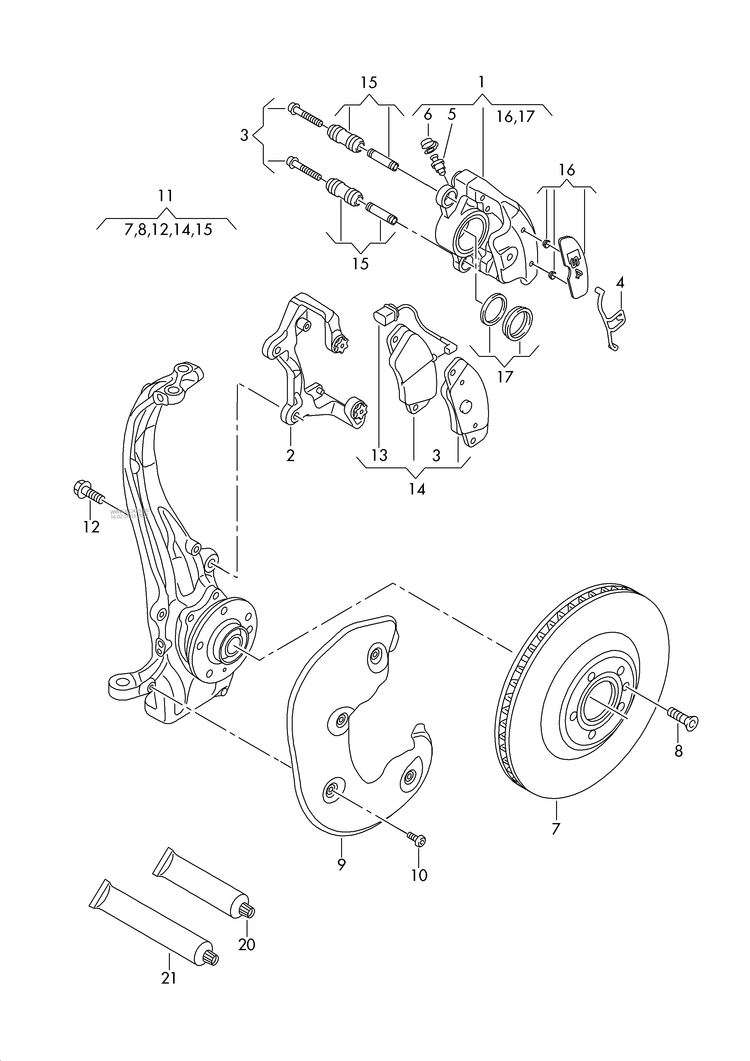

Collection: 615-055 A4 8K floating caliper brake brake caliper housing calliper carrier brake disc (vented) D - 20.06.2011>> S4+PR-1LJ TRW-GIRLING front 345X30MM 5/112
| № | Number | Description | Cnt | Date | |||
|---|---|---|---|---|---|---|---|
| floating caliper brake brake caliper housing calliper carrier brake disc (vented) D - 20.06.2011>> S4+PR-1LJ TRW-GIRLING front 345X30MM 5/112 |
|||||||
|
1
|
|
brake caliper housing
left
|
1
|
||||
|
(1)
|
|
brake caliper housing
right
|
1
|
||||
|
2
|
|
calliper carrier also use:
G 052 560 A2
|
2;1
|
||||
|
3
|
|
1 set attachment parts
|
2
|
||||
|
4
|
|
retaining spring
|
2
|
||||
|
5
|
|
breather valve
|
2
|
||||
|
6
|
|
dust cap
|
2
|
||||
|
7
|
116389
|
brake disc (vented)
345X30MM 5/112
|
2
|
||||
|
7
|
116389
|
brake disc (vented)
345X30MM 5/112
|
2
|
||||
|
8
|
|
hex socket countersunk bolt
M6X16
|
2
|
||||
|
(9)
|
|
cover plate for brake disc
left
|
1
|
||||
|
(9)
|
|
cover plate for brake disc
right
|
1
|
||||
|
10
|
|
hexagon socket flat head bolt
M6X14
|
8
|
||||
|
11
|
1 set brake discs with brake pads not for this model
|
||||||
|
12
|
|
bolt,hex.hd.with shoul.(combi)
M14X1,5X48
|
4
|
||||
|
13
|
113548
|
contacts for vehicles with brake pad wear indicator
|
1
|
||||
|
14
|
112166
|
1 set: brake pads with wear indicator for disc brake also use:
345X30MM
G 052 560 A2 |
1;;;1
|
||||
|
15
|
|
1 set protective sleeves with guide pins
|
2
|
||||
|
16
|
|
repair set trim with emblem
'S4'
|
2
|
||||
|
17
|
|
set of gaskets for brake caliper housing
|
2
|
||||
|
20
|
|
solid lubricant paste
100G
|
X
|
||||
|
(20)
|
|
assembly paste
100G
|
X
|
||||
|
21
|
|
lithium lubricating grease
180G
|
X
|
||||
