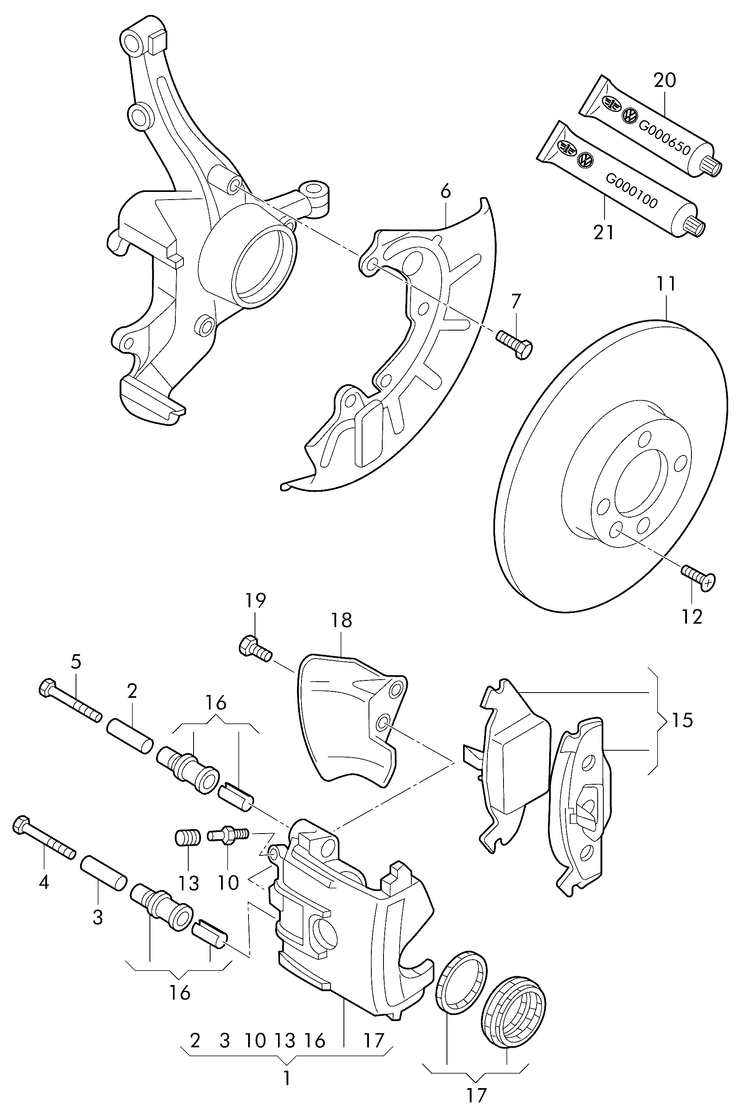

Collection: 615-020 VW Polo 6N 2000>2002 Front floating caliper brake brake caliper housing brake disc (vented) PR-1LM,1ZN, 1LB,1ZC
| № | Name | Ext. inf. | A* | Use of | Part number | A |
|---|---|---|---|---|---|---|
| disc brake | PR-1LB,1ZC, 1ZN,1LM |
|||||
| floating caliper brake brake caliper housing brake disc (vented) |
PR-1LM,1ZN, 1LB,1ZC |
|||||
| 1 | brake caliper housing | 1 | 6N0 615 123 B | 43 | ||
| (1) | brake caliper housing | 1 | 6N0 615 124 B | 44 | ||
| 2 | guide sleeve | 2 | 171 615 221 | 2 | ||
| 3 | guide sleeve | 2 | 171 615 221 A | 6 | ||
| 4 | socket head bolt with hexagon socket head |
2 | N 903 291 04 | - | ||
| 5 | socket head bolt with hexagon socket head |
2 | N 903 292 05 | - | ||
| 6 | cover plate for brake disc | 1 | 6N0 615 311 A | - | ||
| (6) | cover plate for brake disc | 1 | 6N0 615 312 A | - | ||
| 7 | hexagon bolt | 3 | N 905 293 01 | 1 | ||
| 10 | breather valve | 2 | 357 615 273 | 4 | ||
| 11 | brake disc (vented) | 2 | 6N0 615 301 C | 148 | ||
| 11 | brake disk (vented) 'eco' economy |
2 | JZW 615 301 L | - | ||
| 12 | countersunk bolt | 2 | N 101 126 03 | 11 | ||
| 13 | dust cap | 2 | 211 611 483 | 2 | ||
| 15 | 1 set of brake pads for disk brake |
PR-1LB,1ZC | 1 | 6N0 698 151 | 133 | |
| (15) | 1 set of brake pads for disk brake 'eco' economy |
PR-1LB,1ZC | 1 | JZW 698 151 E | 11 | |
| (15) | 1 set of brake pads for disk brake |
PR-1LM,1ZN | 1 | 6N0 698 151 C | 136 | |
| (15) | 1 set of brake pads for disk brake 'eco' economy |
PR-1LM,1ZN | 1 | JZW 698 151 E | 11 | |
| 16 | 1 set: guide bushes | 2 | 171 698 447 A | 13 | ||
| 17 | set of gaskets for brake caliper housing |
2 | 171 698 471 B | 33 | ||
| 18 | air guide | 1 | 6Q0 615 193 | - | ||
| (18) | air guide | 1 | 6Q0 615 194 | - | ||
| 19 | hexagon bolt | 4 | N 010 212 26 | - | ||
| 20 | lithium lubricating grease | X | G 052 150 A2 | 2 | ||
| 21 | solid lubricant paste | X | G 000 650 |
