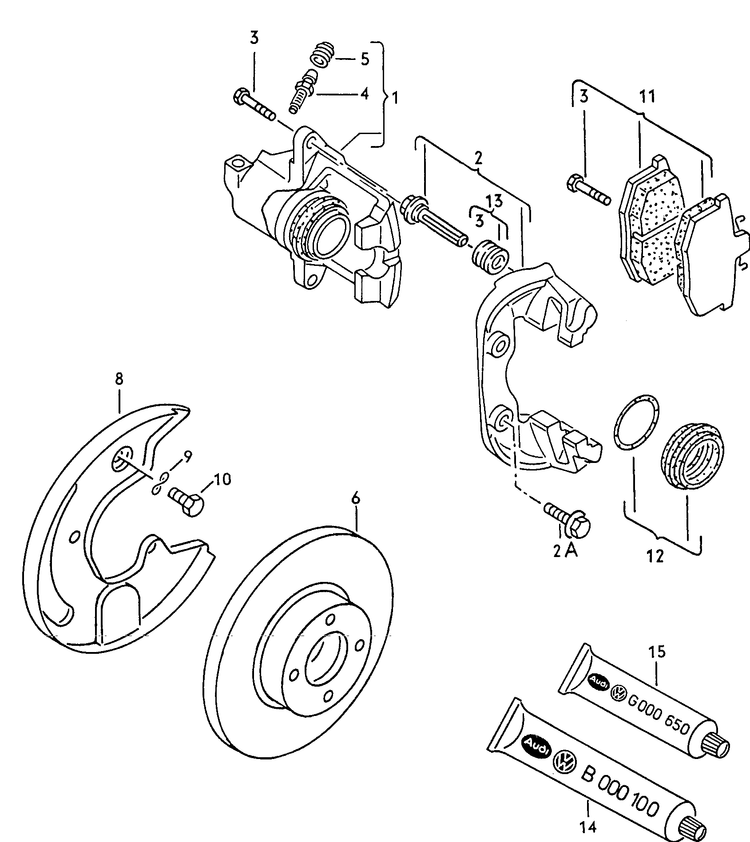

Collection: 615-020 G3 Front disc brake with caliper mark ii brake disc D - 01.06.1995>>* 1Z CL,GL:AEK ADZ automatic+ AAM,ADZ CL,GL:AEK
| № | Name | Ext. inf. | A* | Use of | Part number | A |
|---|---|---|---|---|---|---|
| disc brake | ||||||
| disc brake with caliper mark ii brake disc |
1Z | |||||
| 1 | brake caliper housing | 1 | ||||
| (1) | brake caliper housing | 1 | ||||
| (1) | brake caliper housing | 1 | ||||
| (1) | brake caliper housing | 1 | ||||
| 2 | brake carrier with pad retaining pin |
2 | ||||
| 3 | self-locking bolt | 4 | ||||
| 3 | self-locking bolt | 4 | ||||
| 3 | self-locking bolt | 4 | ||||
| 4 | bolt, hexagon head self-locking |
4 | 110710 | |||
| 5 | breather valve | 2 | 107504 | |||
| 6 | dust cap | 2 | ||||
| 7 | intermediate plate | 2 | ||||
| (8) | brake disc | 2 | 103525 | |||
| 9 | countersunk bolt | 2 | ||||
| 9 | countersunk bolt | 2 | ||||
| (10) | cover plate for brake disc | 2 | ||||
| 11 | hexagon bolt | 2 | ||||
| 11 | hexagon bolt | 2 | ||||
| 11 | hexagon bolt | 2 | ||||
| - | adhesive layer for brake pad |
1 | ||||
| 12 | 1 set of brake pads for disk brake |
1 | 103530 | |||
| (12) | 1 set of brake pads with wear display for disc brakes 'eco' economy |
1 | 103530A | |||
| 13 | 1 set protective sleeves for guide pins |
2 | ||||
| 14 | set of gaskets for brake caliper housing |
2 | 103627 | |||
| 15 | lithium lubricating grease | X | ||||
| 16 | solid lubricant paste | X | ||||
| - | air guide | 1 | ||||
| - | air guide | 1 | ||||
| - | air guide | 1 | ||||
| - | air guide | 1 | ||||
| - | air guide | 1 | ||||
| - | air guide | 1 | ||||
| - | air guide | 1 | ||||
| - | hexagon bolt | X |
