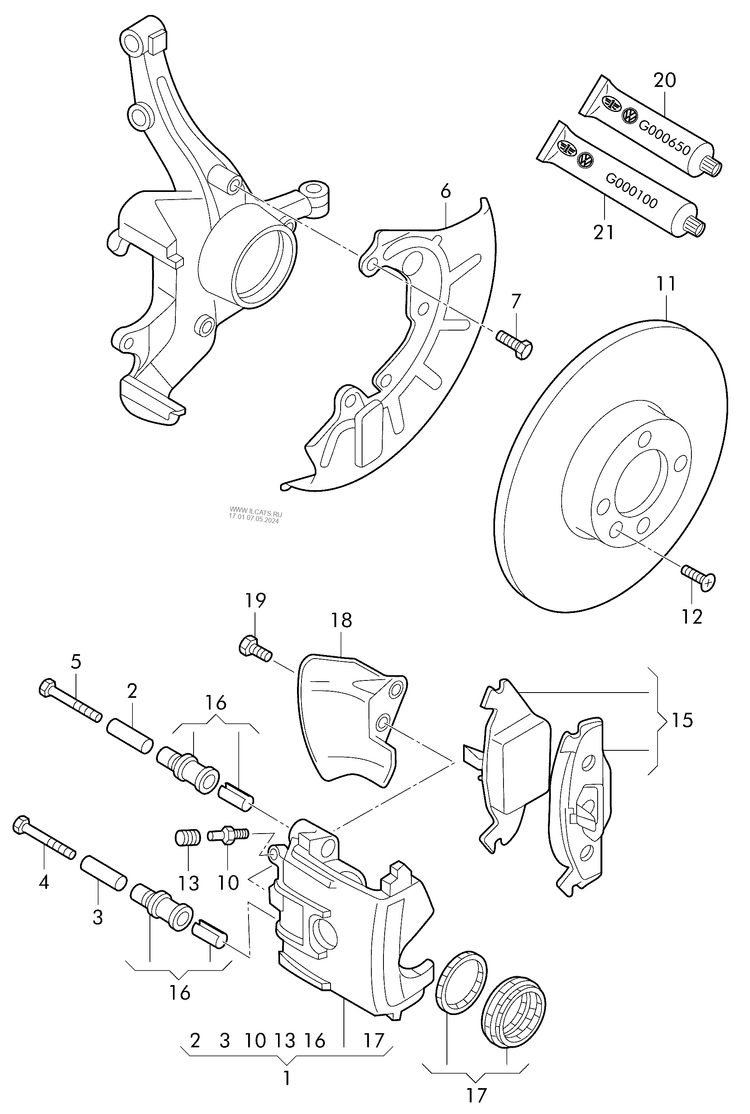

615-015 T4 Front calliper disc brakes; brake caliper housing PR-1LE

№ part code title note quantity data model
framed calliper disc brakes front PR-1LE
280X24MM
    framed calliper disc brakes front   PR-1LE
brake caliper housing 15" LUCAS
brake carrier with pad retaining pin
brake disc (vented)
1 344944 brake caliper housing left 1;1
also use: LUCAS
7D0 611 841 D
-1 344945 brake caliper housing right 1;1
also use: GIRLING
7D0 611 842 B
2 701 615 125 C brake carrier with pad retaining pin left 1
-2 701 615 126 C brake carrier with pad retaining pin right 1
3 no replacement part
- 701 698 461 AX 1 set brake caliper housing w. brake pads (complete) front 1;1;1
use if required: 7D0 611 841 D
Detail of the restored at the factory 7D0 611 842 B
4 701 615 263  locking pin 4
5 701 615 269  cup expander spring 2
6 113269 breather valve M10X1X29MM 2
7 114010 dust cap 2
8 701 615 143  socket head bolt with inner multipoint head M12X70 8
9 107691 brake disc (vented) 280X24 5/112 2
-10 104091 1 set of brake pads for disk brake 1
but without:
locking pin
11 6-1047 1 set protective sleeves for guide pins 2
12 110305 set of gaskets for brake caliper housing 2
13 701 611 841  retainer for brake hose left 1
-13 7D0 611 841 D retainer for brake hose left 1
-13 701 611 842  retainer for brake hose right 1
-13 7D0 611 842 B retainer for brake hose right 1
14 N  0143401 bolt, hex. hd. with shoulder, self-locking M6X10 2
15 N  90685401 hexagon bolt M16X1,5X48 4
16 N  90571201 socket head bolt with hexagon socket head M10X25X15 2
17 N  0111337 hexagon nut M10 4
19 G  052150A2 lithium lubricating grease 180G X
20 G  000650 solid lubricant paste 100G X
