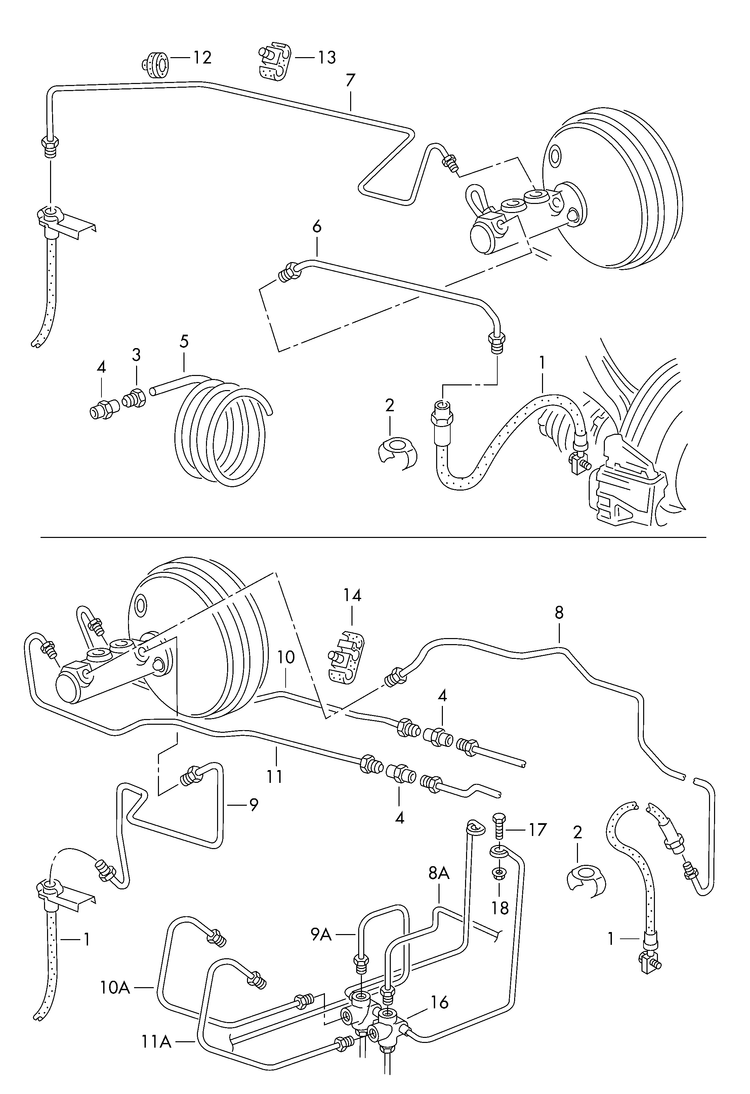

Collection: 611-020 VW Polo 6N 2000>2002 Front brake pipe brake hose
| № | Name | Ext. inf. | A* | Use of | Part number | A |
|---|---|---|---|---|---|---|
| brake pipe brake hose |
||||||
| brake pipe for abs anti-lock braking sys see illustration: |
||||||
| 1 | brake hose | 2 | 6N0 611 701 B | 61 | ||
| 2 | retaining spring | 2 | 4D0 611 715 B | 6 | ||
| 3 | pipe union nut | X | 1J0 611 731 | 3 | ||
| (3) | pipe union nut | X | 1H0 611 731 A | - | ||
| 4 | connecting piece | X | 411 611 789 | 3 | ||
| 5 | brake line in rolls of 5m 'order unit 5' |
* | 111 611 998 | - | ||
| 6 | shorten to: |
1 |
||||
| 7 | shorten to: |
1 |
||||
| 8A | shorten to: | AMF |
1 |
|||
| (8A) | shorten to: |
1 |
||||
| 9A | shorten to: |
AMF |
1 |
|||
| 9A | shorten to: |
1 |
||||
| 10A | shorten to: |
1 |
||||
| (10A) | shorten to: |
AMF |
1 |
|||
| 11A | shorten to: |
1 |
||||
| (11A) | shorten to: |
AMF |
1 |
|||
| 12 | grommet | 2 | 6N0 611 751 | - | ||
| 13 | bracket | X | 811 611 797 | - | ||
| 14 | bracket |
X |
893 611 797 | - | ||
| 16 | distributor for brake line | AMF | 1 | 6X0 611 838 A | - | |
| 16 | distributor for brake line | AMF | 1 | 6X0 611 838 | - | |
| (16) | distributor for brake line | 1 | 6X0 611 838 A | - | ||
| (16) | distributor for brake line | 1 | 6X0 611 838 | - | ||
| 17 | hexagon bolt | 2 | N 014 341 1 | - | ||
| 18 | hexagon collar nut | 2 | N 901 752 03 |
