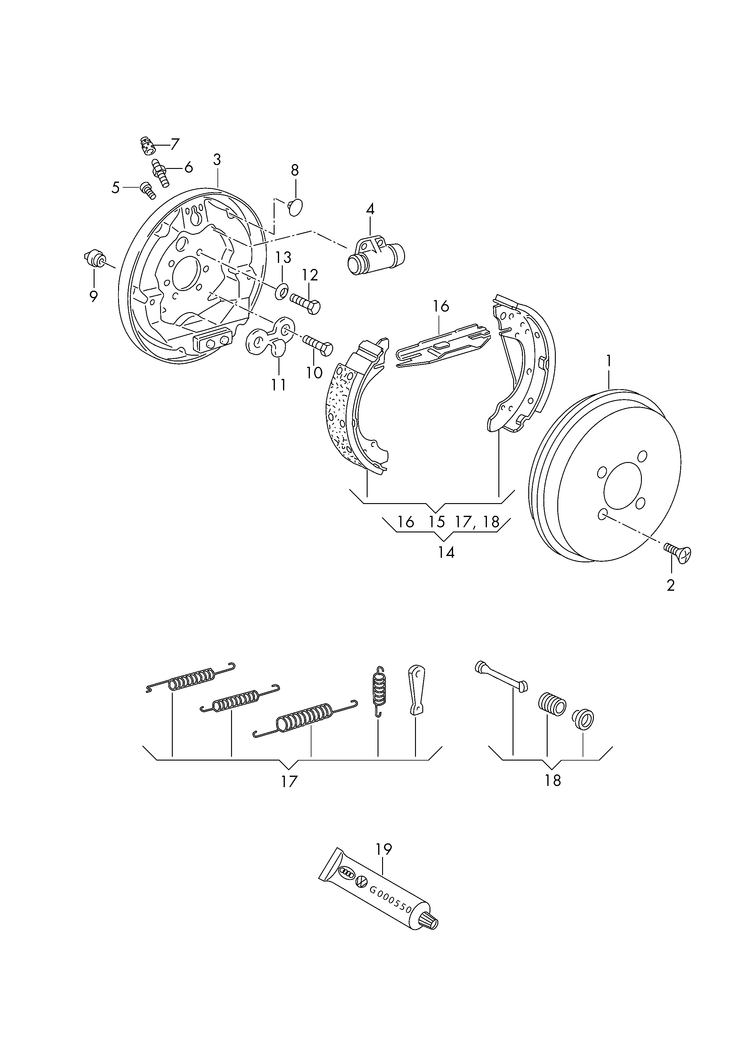

Collection: 609-020 VW Polo 6N 2000>2002 Rear drum brake/Shoes PR-1KH,1KM
| № | Name | Ext. inf. | A* | Use of | Part number | A |
|---|---|---|---|---|---|---|
| drum brake | PR-1KH,1KM | |||||
| 1 | brake drum | 2 | 6X0 609 617 A | 59 | ||
| 2 | countersunk bolt | 2 | N 101 126 03 | 11 | ||
| 3 | back plate for vehicles without anti- lock braking system |
1 | 1H0 609 425 E | - | ||
| (3) | back plate for vehicles without anti- lock braking system |
1 | 6Q0 609 425 E | - | ||
| (3) | back plate for models with anti-lock brake system -abs- |
1 | 6N0 609 425 B | - | ||
| (3) | back plate for vehicles without anti- lock braking system |
1 | 1H0 609 426 C | - | ||
| (3) | back plate for vehicles without anti- lock braking system |
1 | 6Q0 609 426 E | - | ||
| (3) | back plate for models with anti-lock brake system -abs- |
1 | 6N0 609 426 B | - | ||
| 4 | wheel brake cylinder | PR-1KH | 2 | 6N0 611 053 | 74 | |
| 4 | wheel brake cylinder | PR-1KH | 2 | 6Q0 611 053 C | 49 | |
| (4) | wheel brake cylinder | PR-1KM | 2 | 1H0 611 053 | 83 | |
| (4) | wheel brake cylinder | PR-1KM | 2 | 6Q0 611 053 B | 65 | |
| 5 | socket head bolt with hexagon socket head |
2 | N 908 183 01 | - | ||
| 6 | breather valve | 2 | 3A0 611 475 | 1 | ||
| 7 | dust cap | 2 | 211 611 483 | 2 | ||
| 8 | glide piece | 12 | 6N0 609 589 | - | ||
| 9 | bungs | 2 | 171 609 163 | - | ||
| 10 | hexagon head bolt (combi) | 4 | N 907 589 01 | - | ||
| 11 | guide for brake cable not for this model |
X | ||||
| 12 | hexagon head bolt (combi) | 4 | N 907 589 01 | - | ||
| 13 | belleville spring | 8 | 321 501 119 A | - | ||
| 14 | 1 set of brake shoes for drum brake (pre-assembled) associated item/items to be used as necessary: |
PR-1AC,1AT |
1 | 6R0 698 520 X | 13 | |
| 15 | 1 set: brake shoes with linings |
1 | 6R0 698 525 A | 91 | ||
| 16 | push rod | 1 | 357 609 819 | - | ||
| (16) | push rod | 1 | 357 609 820 | - | ||
| (14) | 1 set: brake shoes with linings assembled contains additional positions: |
1 | 1H0 698 520 X | 117 | ||
| (14) | 1 set: brake shoes with linings and brake cylinder contains additional positions: contains additional positions: |
PR-1KH | 1 2 1 |
1H0 698 511 X | 24 | |
| (14) | 1 set: brake shoes with linings and brake cylinder contains additional positions: contains additional positions: |
PR-1KM | 1 2 1 |
1H0 698 511 AX | 17 | |
| 16 | 1 set fastening parts for brake shoes |
1 | 1H0 698 545 A | 21 | ||
| 17 | 1 set fastening parts for brake shoes |
1 | 6R0 698 545 A | 1 | ||
| 18 | 1 set fastening parts for brake shoes |
1 | 6R0 698 545 B | 6 | ||
| 19 | solid lubricant paste | X | G 000 650 |
