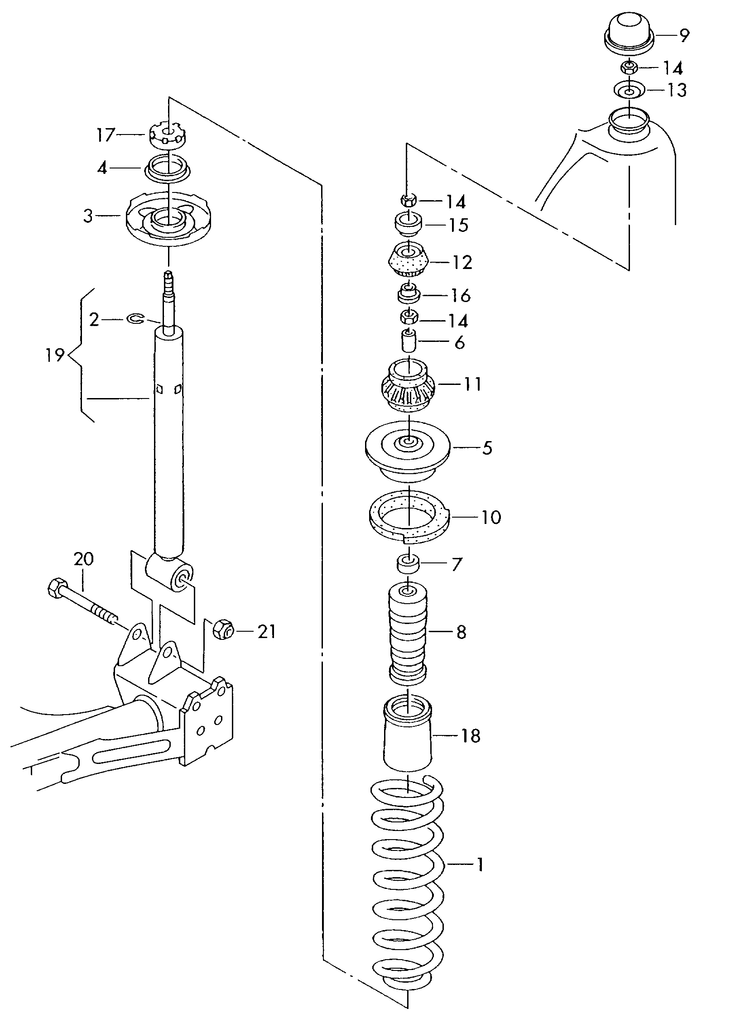

511-010 VW Polo 6N 2000>2002 Rear suspension shock absorbers AMF,AKU,AEF, AGD,ASX

№ Name Ext. inf. A* Use of Part number A
suspension
shock absorbers		 AMF,AKU,AEF,
AGD,ASX
(1) coil spring
F >> 6N-YY503 043
1 paint mark
1 paint mark
AMF,AEF,AGD,
AKU
2		 6N0 511 115 C  3
(1) coil spring
F 6N-YY503 044>> 6N-YY600 000*
F >> 6N-YD540 000*
2 paint marks
2 paint marks
AMF,AEF,AGD,
AKU
2		 6N0 511 115 G  11
(1) coil spring
F 6N-YY600 001>>*
F 6N-YD540 001>>*
2 paint marks
2 paint marks
PR-1JA:
AMF,AEF,AGD,
AKU,ASX
2		 6N0 511 115 G  11
(1) coil spring
F >> 6N-YY503 043
2 paint marks
1 paint mark
AMF,AEF,AGD,
AKU
2		 6N0 511 115 D  3
(1) coil spring 2 6K0 511 115 M  3
1 paint mark
F 6N-YY503 044>> 6N-YY600 000*
F >> 6N-YD540 000*
AMF,AEF,AGD,
AKU		 6K0 511 115 M 9 50 30
(1) coil spring 2 6K0 511 115 M  3
1 paint mark
F 6N-YY600 001>>*
F 6N-YD540 001>>*
PR-1JA:
AMF,AEF,AGD,
AKU,ASX		 6K0 511 115 M 9 50 30
2 snap ring 2 8D0 512 097   -
3 spring disc 2 6N0 512 103 A  1
4 underlay 2 321 512 109   1
5 spring disc 2 6N0 512 113   3
6 spacer sleeve 2 191 512 117   3
7 ring 2 191 512 119   15
(8) stop buffer 2 6K0 512 131 A  37
(9) protective cap 2 6N0 512 135   -
10 underlay 2 6N0 512 149   -
11 bearing ring 2 191 512 333   65
12 bearing ring 2 191 512 335   57
13 cup washer 2 191 512 337   3
14 hexagon nut 6 N  103 286 02  -
15 pressure washer 2 191 512 339   4
16 support washer 2 191 512 340   4
17 protective cap 2 191 513 269   -
(18) protective pipe 2 6N0 513 425 B  10
(19) gas shock absorber
F >> 6N-YY600 000*
F >> 6N-YD540 000*
AMF,AEF,AGD,
AKU
2		 6N0 513 031 L  54
(19) shock abs. 'eco'
economy
F >> 6N-YY600 000*
F >> 6N-YD540 000*
(use in pairs only)
AMF,AEF,AGD,
AKU

2		 JZW 513 025 Q  2
(19) gas shock absorber
F 6N-YY600 001>>*
F 6N-YD540 001>>*
PR-1JA:
AMF,AEF,AGD,
AKU,ASX
2		 6N0 513 031 L  54
(19) shock abs. 'eco'
economy
F 6N-YY600 001>>*
F 6N-YD540 001>>*

(use in pairs only)
PR-1JA:
AMF,AEF,AGD,
AKU,ASX

2		 JZW 513 025 Q  2
20 hexagon bolt 2 N  905 173 02  -
21 hexagon nut, self-locking 2 N  102 090 05
