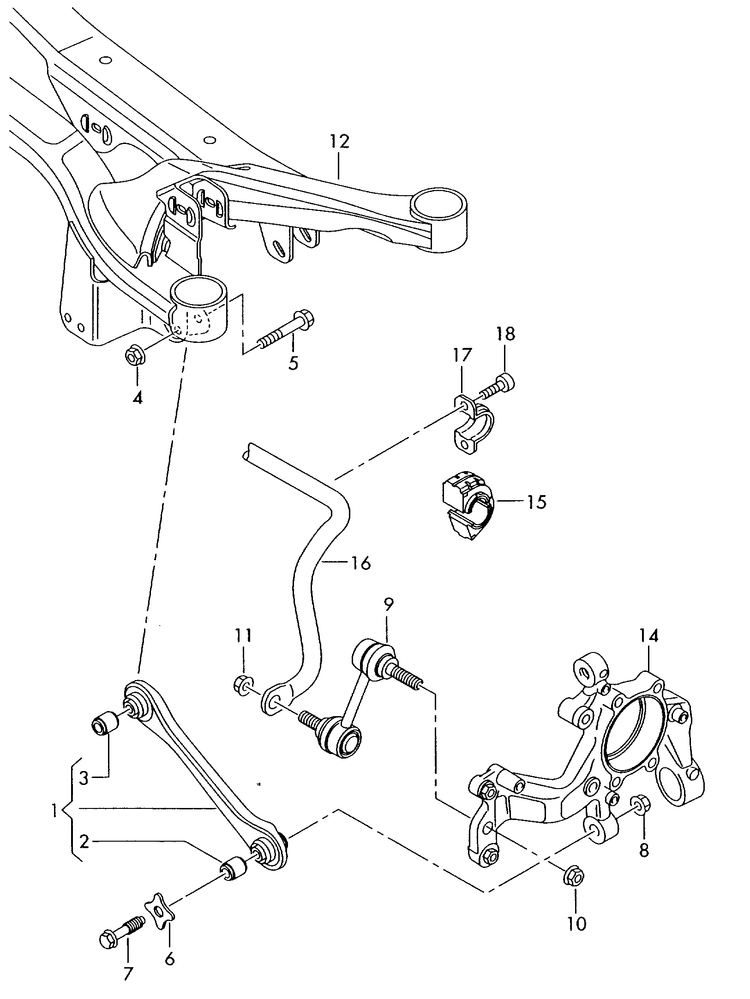

Collection: 501-030 Tiguan Rear track rod / coupling rod & anti-roll bar 4motion
|
1
|
110273
|
track rod D >> - 03.11.2008
left
|
1
|
|
|
(1)
|
110272
|
track rod D >> - 03.11.2008
right
|
1
|
|
|
(1)
|
113698
|
track rod D - 04.11.2008>> - 07.09.2009
|
2
|
|
|
(1)
|
110273
|
track rod D - 08.09.2009>>
left
|
1
|
|
|
(1)
|
110272
|
track rod D - 08.09.2009>>
right
|
1
|
|
|
2
|
not for this model
|
|||
|
3
|
not for this model
|
|||
|
4
|
116941
|
hexagon collar nut self-locking
M12X1,5
|
2
|
|
|
5
|
|
hex collared bolt
M12X1,5X90
|
2
|
|
|
6
|
|
washer
|
2
|
|
|
7
|
|
hexagon head bolt (combi)
M14X1,5X115
|
2
|
|
|
8
|
|
hexagon collar nut
M14X1,5
|
2
|
|
|
9
|
|
retaining washer
14,5X30X3
|
2
|
|
|
10
|
110062
|
coupling rod use if required:
WHT 000 226
|
2;X
|
|
|
(11)
|
116941
|
hexagon collar nut self-locking
M10
|
2
|
|
|
12
|
|
socket head bolt with inner multipoint head
M10X55
|
2
|
|
|
(13)
|
116941
|
hexagon collar nut self-locking
M10
|
2
|
|
|
(15)
|
113761
|
rubber bush D >> - 03.11.2008
3 protrusions
PR-0BC
|
2
|
|
|
(15)
|
110145
|
rubber bush D - 04.11.2008>> - 15.06.2009
1 protrusion
PR-0BC
|
2
|
|
|
(15)
|
110146
|
rubber bush D - 16.06.2009>>
3 protrusions
PR-0BC
|
2
|
|
|
(15)
|
113761
|
rubber bush D >> - 03.11.2008
4 nubs
PR-0BE
|
2
|
|
|
(15)
|
112308
|
rubber bush D - 04.11.2008>> - 15.06.2009
2 protrusions
PR-0BE
|
2
|
|
|
(15)
|
113761
|
rubber bush D - 16.06.2009>>
4 nubs
PR-0BE
|
2
|
|
|
(16)
|
|
anti-roll bar D >> - 03.11.2008
20,7X2,8
PR-0BC
|
1
|
|
|
(16)
|
|
anti-roll bar D - 04.11.2008>> - 15.06.2009 also use:
20,7X2,8
1K0 511 327 AR PR-0BC
|
1;;2
|
|
|
(16)
|
|
anti-roll bar D - 16.06.2009>>
20,7X2,8
PR-0BC
|
1
|
|
|
(16)
|
|
anti-roll bar D >> - 03.11.2008
21,7X3
PR-0BE
|
1
|
|
|
(16)
|
|
anti-roll bar D - 04.11.2008>> - 15.06.2009 also use:
21,7X3
1K0 511 327 AS PR-0BE
|
1;;2
|
|
|
(16)
|
|
anti-roll bar D - 16.06.2009>>
21,7X3
PR-0BE
|
1
|
|
|
17
|
113412
|
clamp
|
2
|
|
|
18
|
|
socket head collared bolt with inner multipoint head
M8X28
|
4
|
