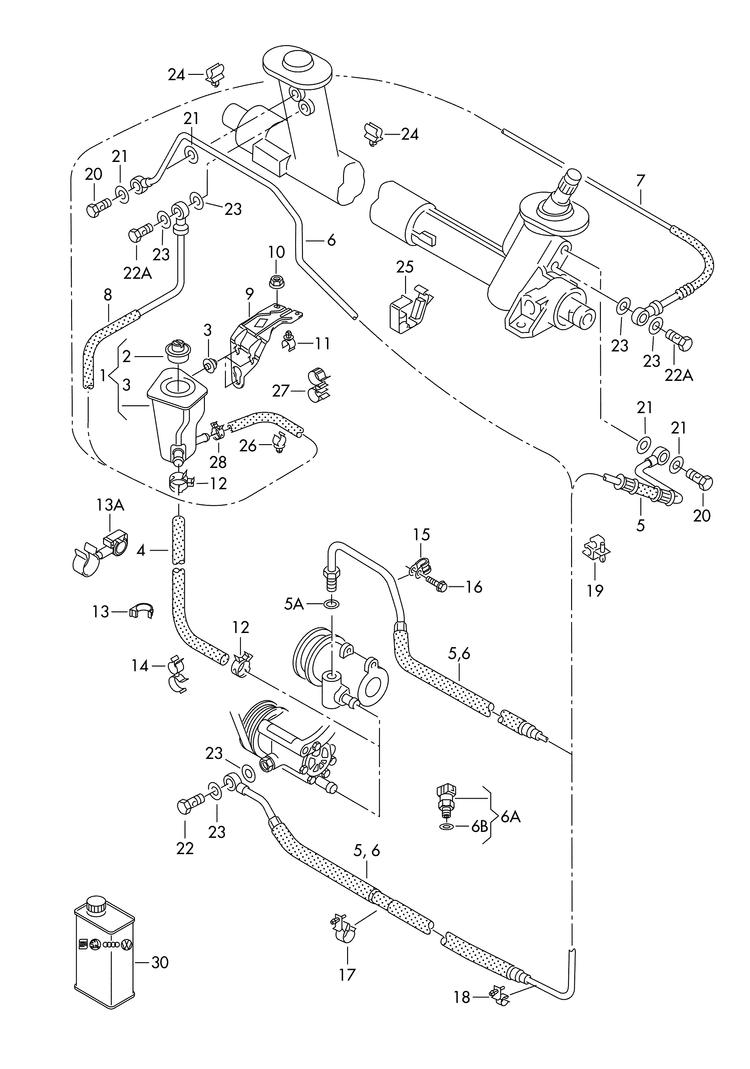

Collection: 422-060 VW Polo 6N 2000>2002 oil container and connection parts, hoses for power steering petrol eng.+ AFK,AHW,AKK, AKP,APE,AQQ, ARC,AUA,AUB, AUD,AVY+ PR-1N1,1N5
| № | Name | Ext. inf. | A* | Use of | Part number | A |
|---|---|---|---|---|---|---|
| oil container and connection parts, hoses for power steering |
petrol eng.+ AFK,AHW,AKK, AKP,APE,AQQ, ARC,AUA,AUB, AUD,AVY+ PR-1N1,1N5 |
|||||
| 1 | oil container | 1 | 6X0 422 371 | - | ||
| (1) | oil container | 1 | 1C0 422 371 D | - | ||
| 1 | oil container | 1 | 5C0 422 371 | - | ||
| 2 | end cap | 1 | 1J0 422 376 A | - | ||
| green | 1J0 422 376 A 6 11 | - | ||||
| 3 | grommet | 3 | 052 129 669 A | - | ||
| 4 | intake hose (vane type pump > oil reserv.) |
1 | 6X0 422 881 AB | - | ||
| 4 | intake hose | 1 | 6X0 422 881 N | - | ||
| (4) | intake hose (vane type pump > oil reserv.) for vehicles with air condit. D >> - 10.05.2001 use if required: |
1 1 |
6X0 422 881 P | - | ||
| - | double hose holder | 1 | N 105 177 01 | - | ||
| (4) | intake hose (vane type pump > oil reserv.) for vehicles with air condit. D - 11.05.2001>> |
1 | 6N0 422 881 C | - | ||
| 5 | expansion hose (vane type pump >steering box) |
1 | 6N1 422 893 H | 1 | ||
| (5) | expansion hose from vane pump to steering gear for vehicles with air condit. D >> - 10.05.2001 |
1 | 6N1 422 893 F | - | ||
| (5) | expansion hose (vane type pump >steering box) for vehicles with air condit. D - 11.05.2001>> |
1 | 6N1 422 893 P | - | ||
| 5A | o-ring | 1 | 1H0 422 999 | - | ||
| 5A | o-ring | 1 | 7M0 422 999 | - | ||
| 6 | expansion hose (vane type pump >steering box) |
1 | 6N2 422 893 H | - | ||
| (6) | expansion hose from vane pump to steering gear for vehicles with air condit. D >> - 10.05.2001 |
1 | 6N2 422 893 F | - | ||
| (6) | expansion hose (vane type pump >steering box) for vehicles with air condit. D - 11.05.2001>> |
1 | 6N2 422 893 P | - | ||
| 6A | oil pressure switch | 1 | 6N0 919 081 A | - | ||
| 6B | o-ring | 1 | N 013 811 5 | 5 | ||
| 7 | return hose (steering gear > fluid cont.) |
1 | 6X1 422 891 J | - | ||
| 8 | return hose (steering gear > fluid cont.) |
1 | 6X2 422 891 H | - | ||
| 9 | bracket for fluid reservoir | 1 | 6N0 422 847 | - | ||
| 10 | hexagon nut, self-locking | 2 | N 900 744 01 | 40 | ||
| 10 | hexagon nut, self-locking | 2 | N 900 744 04 | 39 | ||
| 11 | hose bracket | 1 | N 104 705 01 | - | ||
| 12 | spring band clamp | 2 | N 906 869 01 | - | ||
| (12) | spring band clamp | 2 | N 906 555 01 | - | ||
| 12 | spring band clamp | 2 | N 906 869 02 | - | ||
| 13 | bracket | 1 | 1J0 422 170 A | - | ||
| 13A | hose bracket for vehicles with air condit. |
1 | N 104 737 01 | - | ||
| 14 | double clip intake hose D >> - 07.09.1999 |
X | 701 422 921 | - | ||
| (14) | double hose holder intake hose D - 08.09.1999>> |
X | N 105 177 01 | - | ||
| (14) | double hose holder fuel line return hose |
ARC,AVY | 1 | N 104 204 01 | - | |
| 15 | clamp | 1 | N 103 001 02 | - | ||
| 15 | clamp | 1 | N 103 001 03 | - | ||
| 16 | hex collared bolt | 1 | N 019 533 4 | - | ||
| 17 | bracket expansion hose for vehicles with air condit. |
1 | 6X0 422 932 | - | ||
| 18 | bracket | 1 | 6X0 422 959 | - | ||
| 19 | bracket | 1 | 6N0 422 173 | - | ||
| 20 | banjo bolt | AKK,AKP,AUD, AHW,AUA,APE |
1 | N 903 580 03 | - | |
| 20 | banjo bolt | AHW,AKK,AKP, APE,AUA,AUD |
1 | N 903 580 04 | - | |
| (20) | non-return valve | AFK,AQQ,ARC, AUB,AVY |
1 | 8E0 422 529 | - | |
| 21 | o-ring | 4 | N 013 814 9 | 4 | ||
| 22 | banjo bolt | 1 | 1J0 422 269 B | - | ||
| 22 | banjo bolt | 1 | WHT 001 799 | - | ||
| 22A | banjo bolt | 1 | N 904 674 04 | - | ||
| 22A | banjo bolt | 2 | WHT 000 507 | - | ||
| 23 | o-ring | 2 | N 013 848 6 | - | ||
| 23 | o-ring | 6 | N 013 848 7 | 1 | ||
| 24 | bracket | 2 | 431 616 823 B | - | ||
| 25 | bracket | 1 | 1H0 422 941 | - | ||
| 26 | hose bracket | 1 | N 104 736 01 | - | ||
| 27 | bracket for vehicles with air condit. |
1 | N 103 284 01 | - | ||
| 28 | spring band clamp | 1 | N 102 922 01 | - | ||
| 28 | spring band clamp | 1 | N 906 867 01 | 5 | ||
| 30 | central hydraulic oil and steering gear oil |
X | G 002 000 | 11 | ||
| (30) | central hydraulic oil and steering gear oil |
X | G 002 000 A7 | - | ||
| (30) | central hydraulic oil and steering gear oil |
X | G 002 000 A8 | - | ||
| 30 | central hydraulic oil and steering gear oil |
X | G 004 000 M2 | 9 | ||
| (30) | central hydraulic oil and steering gear oil |
X | G 004 000 M7 | - | ||
| (30) | central hydraulic oil and steering gear oil |
X | G 004 000 M8 |
