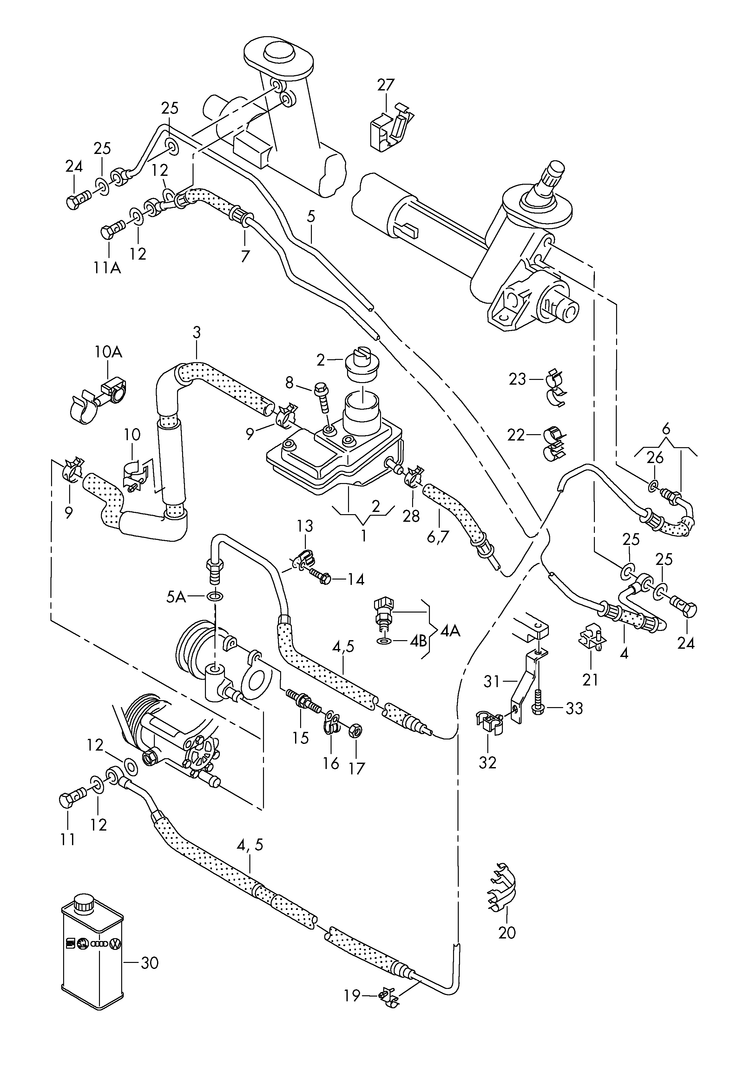

Collection: 422-052 VW Polo 6N 2000>2002 oil container and connection parts, hoses for power steering diesel eng.+ AEF,AGD,AKU, ASX+ PR-1N1,1N5
| № | Name | Ext. inf. | A* | Use of | Part number | A |
|---|---|---|---|---|---|---|
| oil container and connection parts, hoses for power steering |
diesel eng.+ AEF,AGD,AKU, ASX+ PR-1N1,1N5 |
|||||
| 1 | oil container | 1 | 6N0 422 371 D | - | ||
| 2 | end cap | 1 | 6N0 422 376 A | - | ||
| 3 | intake hose (vane type pump > oil reserv.) |
1 | 6X0 422 881 F | - | ||
| 4 | expansion hose from vane pump to steering gear |
1 | 6N1 422 893 G | 1 | ||
| 4A | oil pressure switch | 1 | 6N0 919 081 A | - | ||
| 4B | o-ring | 1 | N 013 811 5 | 5 | ||
| 5 | expansion hose from vane pump to steering gear |
1 | 6N2 422 893 G | - | ||
| 5A | o-ring | 1 | 1H0 422 999 | - | ||
| 5A | o-ring | 1 | 7M0 422 999 | - | ||
| 6 | return hose (steering gear > fluid cont.) |
1 | 6N1 422 891 B | - | ||
| 7 | return hose (steering gear > fluid cont.) |
1 | 6N2 422 891 E | - | ||
| 8 | hexagon bolt | 3 | N 904 130 04 | - | ||
| 8 | hexagon bolt | 3 | N 904 130 06 | - | ||
| 9 | spring band clamp | 2 | N 906 869 01 | - | ||
| 9 | spring band clamp | 2 | N 906 869 02 | - | ||
| 10 | bracket | 2 | 6X0 422 959 A | - | ||
| 10A | hose bracket | 1 | N 104 737 01 | - | ||
| 11 | banjo bolt | X | 1J0 422 269 B | - | ||
| 11 | banjo bolt | 1 | WHT 001 799 | - | ||
| 11A | banjo bolt | X | N 904 674 04 | - | ||
| 11A | banjo bolt | 1 | WHT 000 507 | - | ||
| 12 | o-ring | X | N 013 848 6 | - | ||
| 12 | o-ring | 4 | N 013 848 7 | 1 | ||
| 13 | clamp | 1 | N 103 001 02 | - | ||
| 13 | clamp | 1 | N 103 001 03 | - | ||
| 14 | hex collared bolt | 1 | N 019 533 4 | - | ||
| 15 | double stud with hexagon drive not for this model |
|||||
| 16 | clamp not for this model |
|||||
| 17 | hexagon collar nut not for this model |
|||||
| 19 | bracket | 1 | 6X0 422 959 | - | ||
| 20 | double hose holder | 1 | 6N0 422 959 B | - | ||
| 21 | bracket | 1 | 6N0 422 173 | - | ||
| 22 | double clip | X | N 103 251 01 | - | ||
| 23 | bracket for refrigerant hose |
1 | 893 260 791 | - | ||
| 24 | banjo bolt | 2 | N 903 580 04 | - | ||
| 25 | o-ring | 4 | N 013 814 9 | 4 | ||
| 26 | o-ring | 1 | 1H0 422 999 | - | ||
| 27 | bracket | 1 | 1H0 422 941 | - | ||
| 28 | spring band clamp | 1 | N 906 553 01 | - | ||
| 28 | spring band clamp | 1 | N 907 702 01 | - | ||
| 30 | central hydraulic oil and steering gear oil |
X | G 002 000 | 11 | ||
| (30) | central hydraulic oil and steering gear oil |
X | G 002 000 A7 | - | ||
| (30) | central hydraulic oil and steering gear oil |
X | G 002 000 A8 | - | ||
| 30 | central hydraulic oil and steering gear oil |
X | G 004 000 M2 | 9 | ||
| (30) | central hydraulic oil and steering gear oil |
X | G 004 000 M7 | - | ||
| (30) | central hydraulic oil and steering gear oil |
X | G 004 000 M8 |
