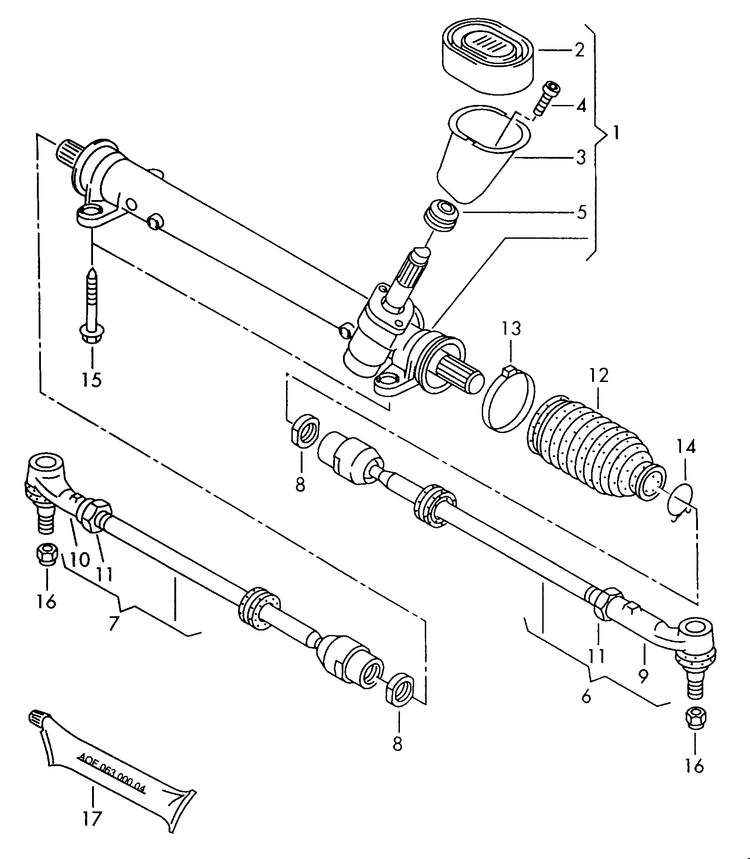

Collection: 419-010 VW Polo 6N 2000>2002 steering gear track rod for models without power steering PR-1N0
| № | Name | Ext. inf. | A* | Use of | Part number | A |
|---|---|---|---|---|---|---|
| steering gear track rod for models without power steering |
PR-1N0 | |||||
| - | power steering see illustration: |
PR-1N1,1N5 |
||||
| 1 | steering gear | 1 | 6N1 419 063 | 26 | ||
| (1) | steering gear | 1 | 6N2 419 063 | - | ||
| 2 | o-ring | 1 | 6N0 419 199 | - | ||
| 3 | pot | 1 | 6N1 419 193 | - | ||
| (3) | pot | 1 | 6N2 419 193 | - | ||
| 4 | socket head bolt with hexagon socket head (combination) |
2 | N 102 278 03 | - | ||
| 5 | o-ring | 1 | 171 419 329 A | - | ||
| 6 | track rod | 1 | 6X0 419 803 A | 43 | ||
| 7 | track rod | 1 | 6X0 419 804 A | 49 | ||
| 8 | nut | 2 | 171 419 855 | - | ||
| 9 | tie rod end | 1 | 6N0 419 811 | 65 | ||
| 10 | tie rod end | 1 | 6N0 419 812 | 68 | ||
| 11 | hexagon nut | 2 | N 102 187 08 | 17 | ||
| 11 | hexagon nut | 2 | N 011 113 5 | 5 | ||
| (11) | hexagon nut | 2 | N 102 187 04 | 2 | ||
| 12 | protective sleeve | 2 | 6N0 419 831 | 43 | ||
| 13 | clamp | 2 | N 903 550 01 | - | ||
| 14 | clamping ring | 2 | 171 419 838 | 3 | ||
| 15 | hex collared bolt | 4 | N 906 330 02 | - | ||
| 16 | hexagon nut, self-locking | 2 | N 906 350 01 | 4 | ||
| 17 | steering gear grease | 1 | G 052 168 A1 | - |
