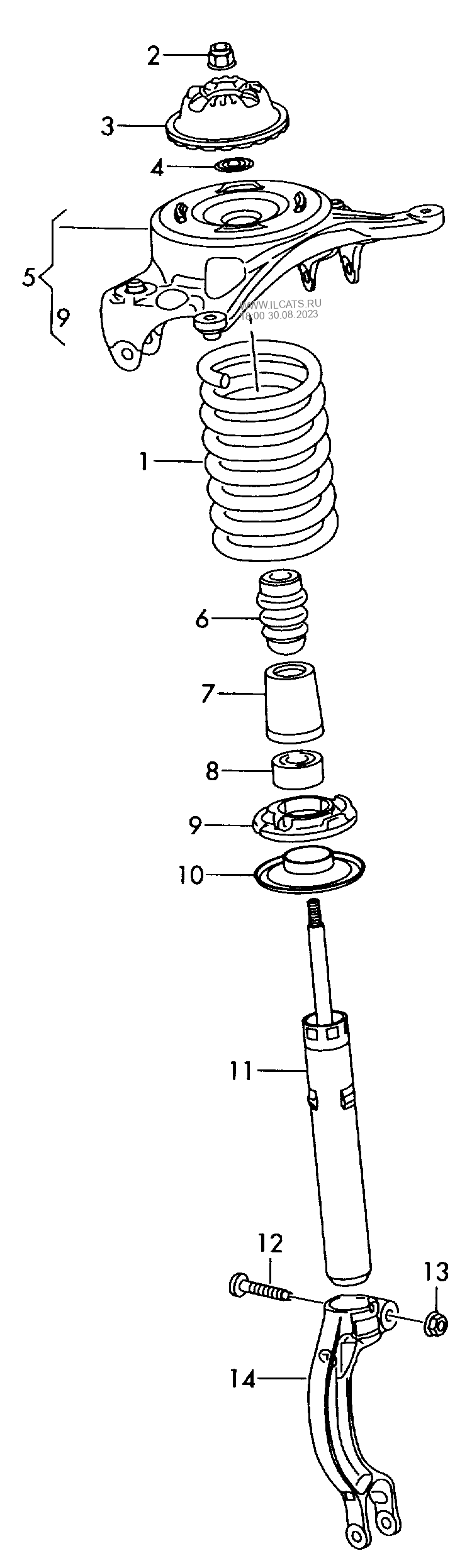

411-000 Touareg 7L Front coil spring anti-roll bar shock absorbers PR-1BA,1BE

6A

clamp
2
7A
116945
hex collared bolt
M10X62X45
4
8

rubber bush marked with:
blue
PR-1BA
4
(8)

rubber bush marked with:
yellow
PR-1BE
4
9
 110964
coupling rod
2
10

hex collared bolt
M12X1,5X60
2
11

hexagon nut
M12X1,5
4
12

hex collared bolt
M12X1,5X125
2
14

hex collared bolt
M14X1,5X102
2
15

hexagon nut
M14X1,5
2
16
111546
protective sleeve
2
17

rubber stop for shock absorber
58MM
2
18
114557
mounting
upper
2
19

bearing plate
upper
2
20

cap
2
21

hexagon collar nut self-locking
M12X1,5
2
23

hexagon collar nut self-locking
M8
8
24

bolt,hex.hd.with shoul.(combi)
M10X37
6
25

gas shock absorber F >> 7L-9-045 000 *
left
PR-1BA
1
11.2006 - 01.2009
(25)

gas shock absorber F >> 7L-9-045 000 *
right
PR-1BA
1
11.2006 - 01.2009
25
110635
gas shock absorber also use:
left
*>>7L-9-045000
7L6 413 032 S
PR-1BA
1;;1
(25)
110636
gas shock absorber also use:
right
*>>7L-9-045000
7L6 413 031 S
PR-1BA
1;;1
(25)

gas shock absorber F >> 7L-9-045 000 * for sports suspension
left
PR-1BE
1
11.2006 - 01.2009
(25)

gas shock absorber F >> 7L-9-045 000 * for sports suspension
right
PR-1BE
1
11.2006 - 01.2009
(25)

gas shock absorber F 7L-9-045 001>> * for sports suspension
left
PR-1BE
1
02.2009 - 05.2010
(25)
gas shock absorber F 7L-9-045 001>> * for sports suspension
right
PR-1BE
1
02.2009 - 05.2010
