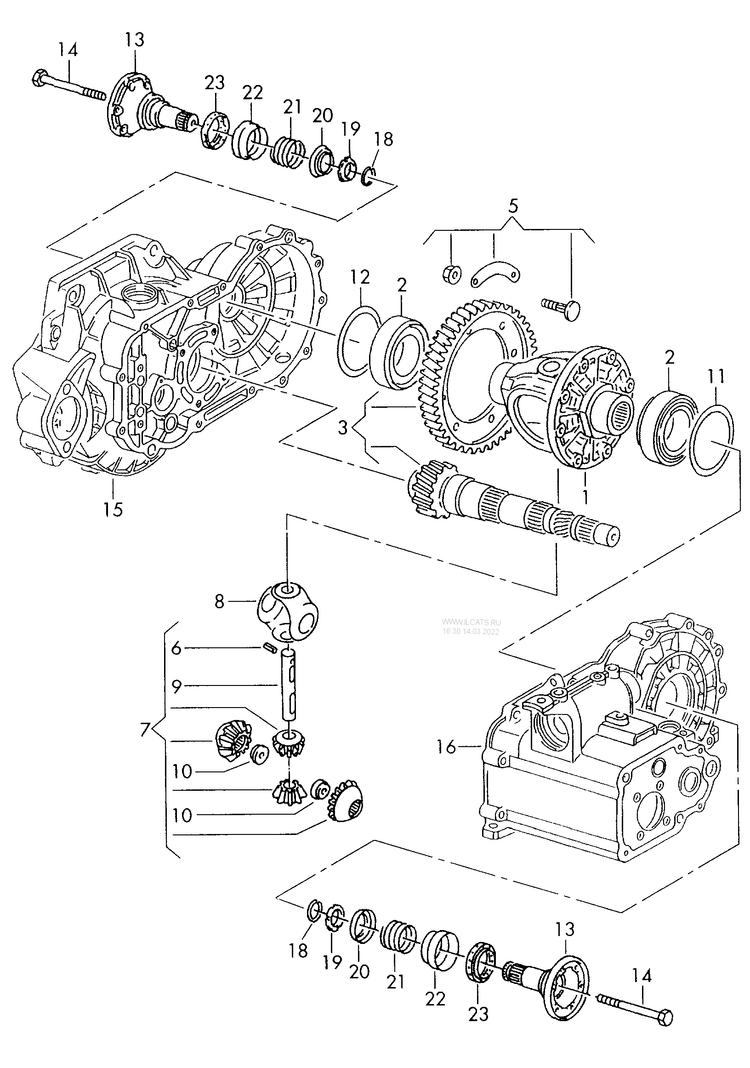

Collection: 409-020 Golf mk4 1998>2004 differential pinion gear set for 5 speed manual transmiss. DUS,DUU,DUW, ERT
| № | Number | Description | Cnt | Date | |||
|---|---|---|---|---|---|---|---|
| differential pinion gear set for 5 speed manual transmiss. DUS,DUU,DUW, ERT |
|||||||
|
1
|
|
differential housing G >> 09 07 1
ERT
|
1
|
||||
|
(1)
|
|
differential housing G 10 07 1>>
ERT
|
1
|
||||
|
(1)
|
|
differential housing G >> 09 07 1
DUS,DUU,DUW
|
1
|
||||
|
(1)
|
|
differential housing G 10 07 1>>
DUS,DUU,DUW
|
1
|
||||
|
2
|
|
taper roller bearing
38,1X65X18
|
2
|
||||
|
3
|
pinion gear set G >> 09 07 1
67/15
DUW
|
1
|
|||||
|
(3)
|
|
pinion gear set G 10 07 1>>
67/15
DUW
|
1
|
||||
|
(3)
|
|
pinion gear set G >> 09 07 1
68/16
DUU,DUS,ERT
|
1
|
||||
|
(3)
|
|
pinion gear set G 10 07 1>>
68/16
DUU,DUS,ERT
|
1
|
||||
|
5
|
|
1 set fixing parts for output wheel on differential casing G >> 09 07 1
|
1
|
||||
|
(5)
|
|
1 set fixing parts for output wheel on differential casing G 10 07 1>>
|
1
|
||||
|
6
|
|
spannhuelse
5,4X28,5
|
1
|
||||
|
7
|
|
1 set: differential pinions
DUU,DUS,DUW
|
1
|
||||
|
(7)
|
|
1 set: differential pinions
ERT
|
1
|
||||
|
8
|
|
thrust washer assembly
DUU,DUS,DUW
|
1
|
||||
|
(8)
|
|
thrust washer assembly
ERT
|
1
|
||||
|
9
|
|
shaft - differential pinion
DUU,DUS,DUW
|
1
|
||||
|
9
|
|
shaft - differential pinion
ERT,DUU,DUS,
DUW |
1
|
||||
|
10
|
|
flange shaft nut
|
1
|
||||
|
(11)
|
|
1 set shims
0,65-1,25
|
X
|
||||
|
12
|
|
adjusting washer
1
|
X
|
||||
|
13
|
|
flanged shaft
90MM
DUU,DUS,DUW
|
2
|
||||
|
(13)
|
|
flanged shaft
100MM
ERT
|
2
|
||||
|
14
|
|
socket head bolt with hexagon socket head
M8X68X12
|
2
|
||||
|
18
|
|
snap ring
28,5
|
2
|
||||
|
19
|
|
tapered ring
|
2
|
||||
|
20
|
|
thrust washer
|
2
|
||||
|
21
|
|
pressure spring
|
2
|
||||
|
22
|
|
sleeve
|
1
|
||||
|
23
|
107548
|
shaft oil seal
50X65X10
|
2
|
||||
|
-
|
|
sealing grease for radial shaft oil seal
50G
|
X
|
||||
