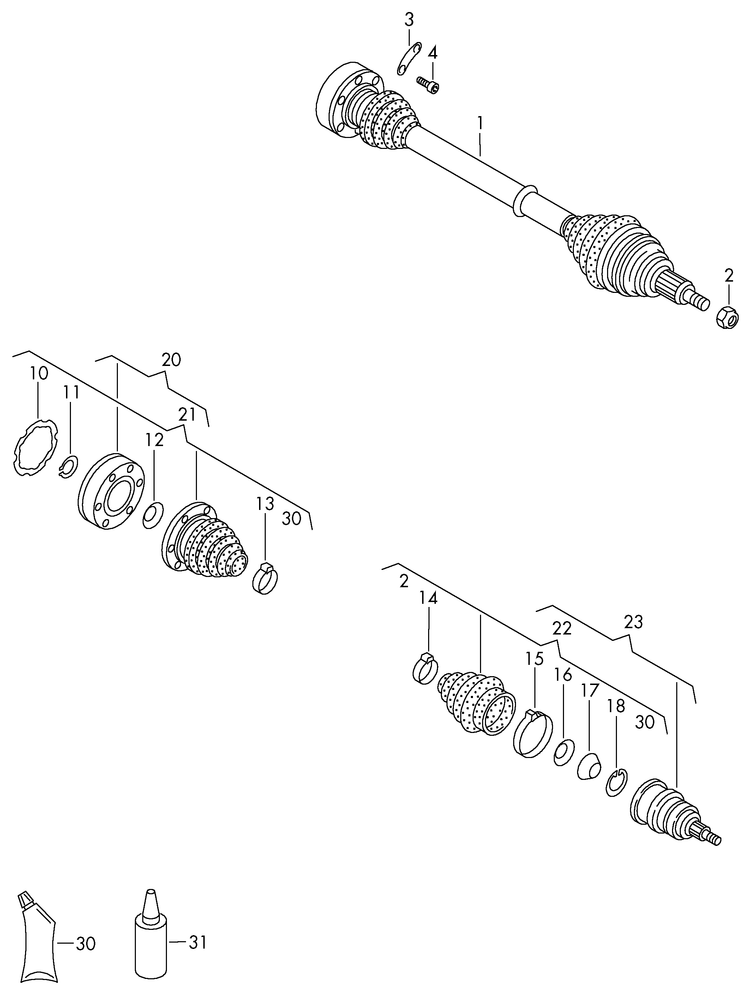

407-032 VW Polo 6N 2000>2002 drive shaft for 4-speed automatic gearbox for vehicles with no air conditioning system ARC,AVY

№ Name Ext. inf. A* Use of Part number A
drive shaft
for 4-speed automatic gearbox
for vehicles with no air
conditioning system		 ARC,AVY
1 drive shaft with constant
velocity joints		 1 6N0 407 271 Q  1
(1) drive shaft with constant
velocity joints		 1 6N0 407 272 R  4
(1) drive shaft with constant
velocity joints		 1 6N0 407 452 GX  -
2 12 point socket shouldered nut
self-locking		 2 N  905 876 02  39
3 spacer 6 1K0 407 357 B  -
3 spacer 6 1J0 407 357   -
4 socket head bolt with inner
multipoint head		 12 N  911 082 01  4
4 socket head bolt with inner
multipoint head		 12 893 407 237   4
10 sealing plate 2 1H0 407 309 A  -
11 snap ring 2 113 517 279   1
12 belleville spring
(internal gears)		 2 113 501 327 A  1
13 clamp 2 N  904 425 01  5
14 clamp 2 N  904 425 01  5
15 clamp 2 N  907 724 01  3
16 belleville spring 2 321 407 287   1
17 thrust ring 2 321 407 295 A  10
18 snap ring 2 171 407 297 C  5
20 constant velocity joint with
boot, attachment parts and
grease		 2 6N0 498 103 A  -
(20) constant velocity joint with
boot, attachment parts and
grease		 2 6N0 498 103 AX  -
21 joint protective boot with
assembly items and grease
also use:		 2

1		 1K0 498 201 B  37
22 joint protective boot with
assembly items and grease		 2 6X0 498 203   46
23 outer joint with
assembly parts		 2 6X0 498 099   44
(23) outer joint with
assembly parts		 2 6X0 498 099  X  24
30 high temperature grease X G  052 133 A2  1
(30) high temperature grease X G  052 133 A3  -
31 sealant X D  454 300 A2  -
(31) lubricating oil X G  052 135 A1
407-032 VW Polo 6N 2000>2002 drive shaft for 4-speed automatic gearbox for vehicles with no air conditioning system ARC,AVY
