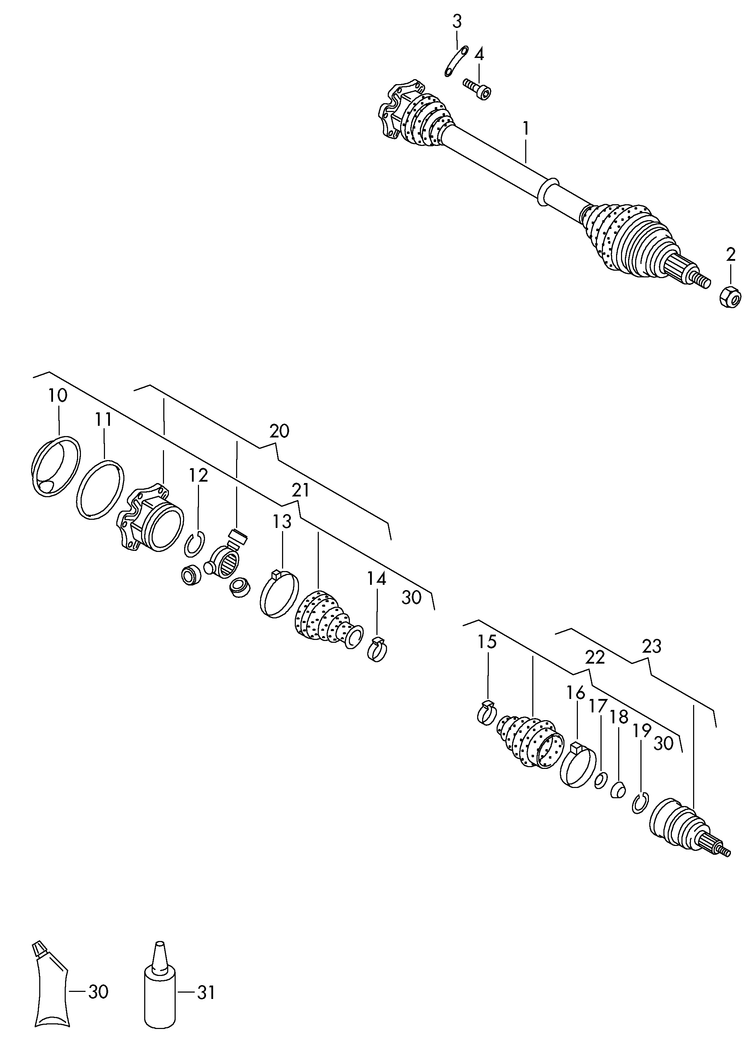

Collection: 407-030 VW Polo 6N 2000>2002 drive shaft for 4-speed automatic gearbox for vehicles with air condit. AHW,AKK,AKP, APE,AUA,AUD
| № | Name | Ext. inf. | A* | Use of | Part number | A |
|---|---|---|---|---|---|---|
| drive shaft for 4-speed automatic gearbox for vehicles with air condit. |
AHW,AKK,AKP, APE,AUA,AUD |
|||||
| 1 | drive shaft with constant velocity joints |
1 | 6N0 407 271 AA | - | ||
| 1 | drive shaft with constant velocity joints |
1 | 6N0 407 271 K | 3 | ||
| (1) | drive shaft with constant velocity joints |
1 | 6N0 407 451 CX | 3 | ||
| (1) | drive shaft with constant velocity joints |
1 | 6N0 407 272 K | 3 | ||
| (1) | drive shaft with constant velocity joints |
1 | 6N0 407 452 BX | 3 | ||
| 2 | 12 point socket shouldered nut self-locking |
2 | N 905 876 02 | 39 | ||
| 3 | spacer | 6 | 1J0 407 357 A | - | ||
| 3 | spacer | 6 | 1K0 407 357 C | - | ||
| 4 | socket head bolt with inner multipoint head |
12 | N 908 083 02 | - | ||
| 4 | socket head bolt with inner multipoint head |
12 | N 908 083 01 | - | ||
| 10 | end cap | 2 | 1J0 407 115 B | - | ||
| 11 | o-ring | 2 | N 908 366 01 | - | ||
| 12 | securing ring | 2 | N 104 336 01 | - | ||
| 13 | clamp | 2 | N 907 810 01 | - | ||
| 14 | clamp | 2 | N 904 425 01 | 5 | ||
| 15 | clamp | 2 | N 904 425 01 | 5 | ||
| 16 | clamp | 2 | N 904 706 01 | - | ||
| 17 | belleville spring | 2 | 321 407 287 | 1 | ||
| 18 | thrust ring | 2 | 321 407 295 A | 10 | ||
| 19 | snap ring | 2 | 171 407 297 C | 5 | ||
| 20 | constant velocity joint with boot, attachment parts and grease |
2 | 6Q0 498 103 D | 10 | ||
| (20) | constant velocity joint with boot, attachment parts and grease |
2 | 6Q0 498 103 DX | - | ||
| 21 | joint protective boot with assembly items and grease |
2 | 1J0 498 201 K | 24 | ||
| 21 | joint protective boot with assembly items and grease |
2 | 1J0 498 201 B | 31 | ||
| 22 | joint protective boot with assembly items and grease also use: |
2 1 |
6N0 498 203 | 51 | ||
| 23 | outer joint with assembly parts economy also use: |
2 1 |
JZW 498 340 CX | 7 | ||
| 23 | outer joint with assembly parts |
2 | 6N0 498 099 | 59 | ||
| (23) | outer joint with assembly parts |
2 | 6N0 498 099 X | 29 | ||
| 30 | high temperature grease | X | G 052 133 A2 | 1 | ||
| (30) | grease for triple roller joint |
X | G 052 186 A3 | 2 | ||
| 30 | high temperature grease | X | G 052 161 A1 | - | ||
| 31 | sealant | X | D 454 300 A2 | - | ||
| (31) | lubricating oil | X | G 052 135 A1 |
