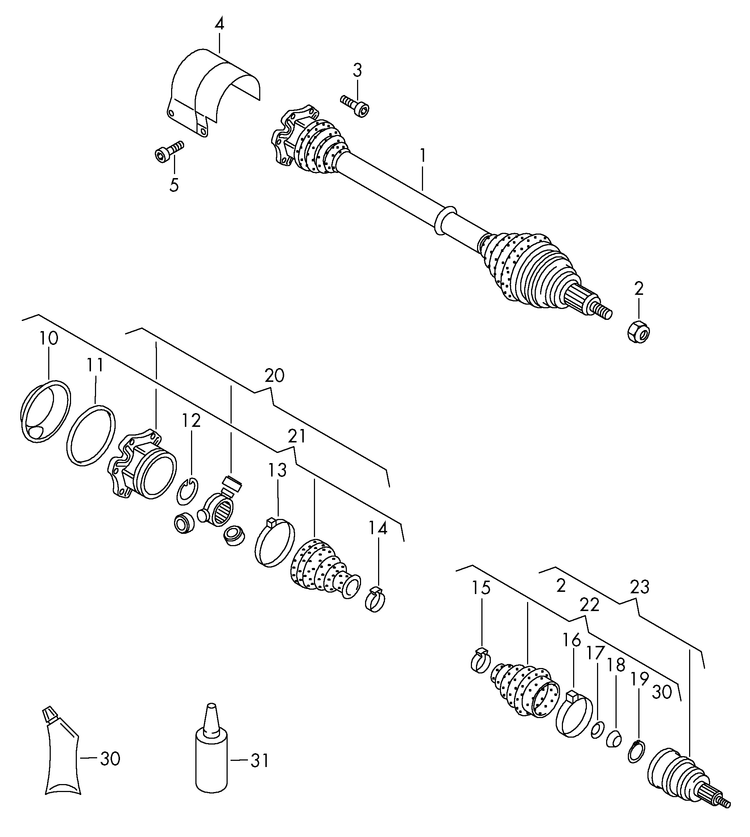

Collection: 407-022 VW Polo 6N 2000>2002 drive shaft for 5 speed manual transmiss. for gearbox code: AMF
| № | Name | Ext. inf. | A* | Use of | Part number | A |
|---|---|---|---|---|---|---|
| drive shaft for 5 speed manual transmiss. for gearbox code: |
AMF | |||||
| 1 | jointed shaft with universal joint and absorber weight |
1 | 6X0 407 271 H | 22 | ||
| 1 | jointed shaft with universal joint and absorber weight |
1 | 6X0 407 271 K | 27 | ||
| (1) | jointed shaft with universal joint and absorber weight D >> - 04.03.2001 |
1 | 6X0 407 451 X | 21 | ||
| (1) | drive shaft with universal 'eco' joints economy |
1 | JZW 407 451 BX | - | ||
| (1) | jointed shaft with universal joint and absorber weight D - 05.03.2001>> |
1 | 6X0 407 451 AX | 20 | ||
| (1) | drive shaft with universal 'eco' joints D - 05.03.2001>> economy |
1 | JZW 407 451 AX | - | ||
| (1) | drive shaft with constant velocity joints |
1 | 6X0 407 272 E | 29 | ||
| (1) | drive shaft with constant velocity joints |
1 | 6X0 407 452 X | 22 | ||
| (1) | drive shaft with universal 'eco' joints economy |
1 | JZW 407 450 PX | - | ||
| 2 | 12 point socket shouldered nut self-locking |
2 | N 905 876 02 | 39 | ||
| 3 | socket head bolt with inner multipoint head |
12 | N 904 411 03 | - | ||
| 3 | socket head bolt with inner multipoint head |
12 | N 904 411 02 | - | ||
| 4 | heat shield plate | 1 | 6X0 407 721 B | - | ||
| 4 | heat shield plate | 1 | 6X0 407 721 A | - | ||
| 5 | hexagon bolt | 2 | N 101 705 12 | - | ||
| 5 | hexagon bolt | 2 | N 100 111 03 | - | ||
| 10 | end cap | 2 | 8D0 407 375 | - | ||
| 11 | o-ring | 2 | N 908 366 01 | - | ||
| 12 | securing ring | 2 | N 104 336 01 | - | ||
| 13 | clamp D >> - 04.03.2001 |
2 | N 907 810 01 | - | ||
| (13) | clamp D - 05.03.2001>> |
2 | N 909 965 01 | - | ||
| 14 | terminal not for this model D >> - 04.03.2001 |
|||||
| (14) | clamp D - 05.03.2001>> |
2 | N 904 425 01 | 5 | ||
| 15 | clamp | 2 | N 904 425 01 | 5 | ||
| 16 | clamp | 2 | N 907 724 01 | 3 | ||
| 17 | belleville spring | 2 | 321 407 287 | 1 | ||
| 18 | thrust ring | 2 | 321 407 295 A | 10 | ||
| 19 | snap ring | 2 | 171 407 297 C | 5 | ||
| 20 | constant velocity joint with boot, attachment parts and grease |
2 | 1J0 498 103 K | 31 | ||
| (20) | constant velocity joint with boot, attachment parts and grease |
2 | 1J0 498 103 KX | 14 | ||
| 21 | joint protective boot with assembly items and grease |
2 | 1J0 498 201 J | 40 | ||
| 21 | joint protective boot with assembly items and grease |
2 | 1J0 498 201 D | 36 | ||
| 22 | joint protective boot with assembly items and grease |
2 | 6X0 498 203 | 46 | ||
| 23 | outer joint with assembly parts |
2 | 6X0 498 099 | 44 | ||
| (23) | outer joint with assembly parts |
2 | 6X0 498 099 X | 24 | ||
| 30 | high temperature grease | X | G 052 133 A3 | - | ||
| (30) | grease for triple roller joint |
X | G 052 186 A3 | 2 | ||
| 30 | high temperature grease | X | G 052 161 A1 | - | ||
| 31 | sealant | X | D 454 300 A2 | - | ||
| (31) | lubricating oil | X | G 052 135 A1 |
