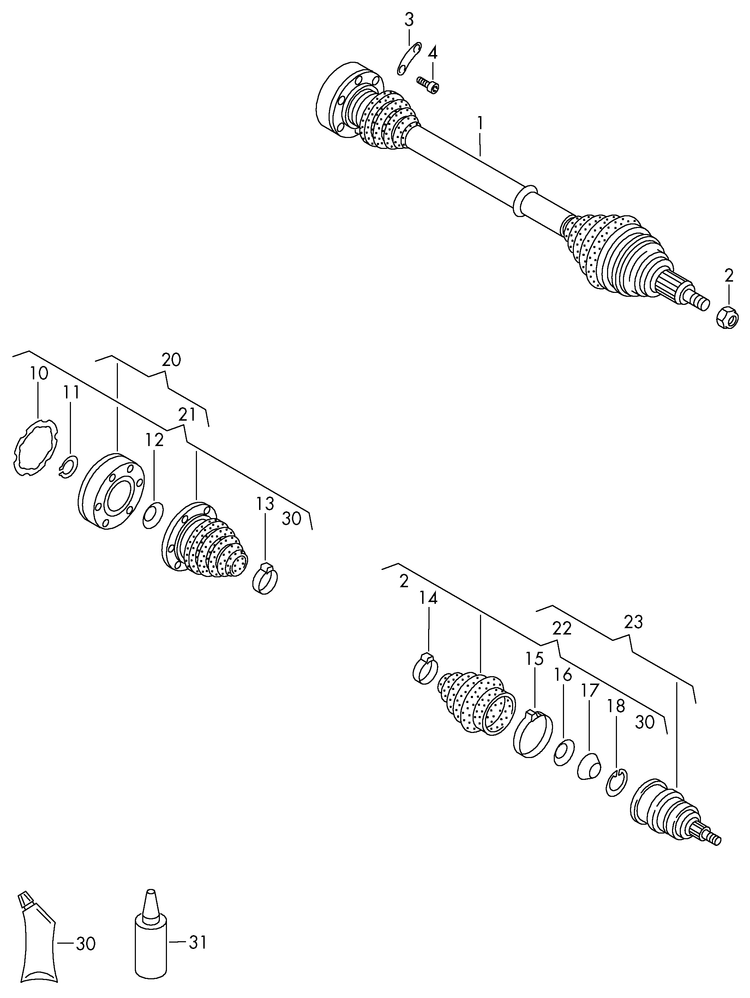

Collection: 407-020 VW Polo 6N 2000>2002 drive shaft for 5 speed manual transmiss. AEF,AFK,AGD, AHW,AKK,AKP, AKU,ALD,AQQ, ASX,AUA,AUB, AUC,AUD
| № | Name | Ext. inf. | A* | Use of | Part number | A |
|---|---|---|---|---|---|---|
| drive shaft for 5 speed manual transmiss. |
AEF,AFK,AGD, AHW,AKK,AKP, AKU,ALD,AQQ, ASX,AUA,AUB, AUC,AUD |
|||||
| 1 | drive shaft with constant velocity joints |
1 | 6N0 407 271 H | 26 | ||
| (1) | drive shaft with constant velocity joints |
1 | 6N0 407 272 L | 16 | ||
| (1) | drive shaft with constant velocity joints |
1 | 6E0 407 452 AX | 15 | ||
| 1 | drive shaft with constant velocity joints |
1 | 6N0 407 451 BX | 15 | ||
| (1) | drive shaft with universal 'eco' joints economy |
1 | JZW 407 451 X | 6 | ||
| (1) | drive shaft with universal 'eco' joints economy |
1 | JZW 407 450 KX | 5 | ||
| 2 | 12 point socket shouldered nut self-locking |
2 | N 905 876 02 | 39 | ||
| 3 | spacer | 6 | 1K0 407 357 B | - | ||
| 3 | spacer | 6 | 1J0 407 357 | - | ||
| 4 | socket head bolt with inner multipoint head |
12 | N 911 082 01 | 4 | ||
| 4 | socket head bolt with inner multipoint head |
12 | 893 407 237 | 4 | ||
| 10 | sealing plate | 2 | 1H0 407 309 A | - | ||
| 11 | snap ring | 2 | 113 517 279 | 1 | ||
| 12 | belleville spring (internal gears) |
2 | 113 501 327 A | 1 | ||
| 13 | clamp | 2 | N 904 425 01 | 5 | ||
| 14 | clamp | 2 | N 904 425 01 | 5 | ||
| 15 | clamp | 2 | N 904 706 01 | - | ||
| 16 | belleville spring | 2 | 321 407 287 | 1 | ||
| 17 | thrust ring | 2 | 321 407 295 A | 10 | ||
| 18 | snap ring | 2 | 171 407 297 C | 5 | ||
| 20 | constant velocity joint with boot, attachment parts and grease |
2 | 6N0 498 103 | 38 | ||
| (20) | constant velocity joint with boot, attachment parts and grease |
2 | 6N0 498 103 X | 6 | ||
| (20) | constant velocity joint with boot, attachment parts and grease |
2 | 6N0 498 350 X | 4 | ||
| 20 | universal joint with joint protect. sleeve, assmbly parts and 'eco' lub. grease economy |
2 | JZW 498 350 CX | 1 | ||
| 21 | joint protective boot with assembly items and grease |
2 | 6N0 498 201 | 44 | ||
| 22 | joint protective boot with assembly items and grease also use: |
2 1 |
6N0 498 203 | 51 | ||
| 23 | outer joint with assembly parts |
2 | 6N0 498 099 | 59 | ||
| (23) | outer joint with assembly parts |
2 | 6N0 498 099 X | 29 | ||
| 23 | outer joint with assembly parts economy also use: |
2 1 |
JZW 498 340 CX | 7 | ||
| 30 | high temperature grease | X | G 052 133 A2 | 1 | ||
| 31 | sealant | X | D 454 300 A2 | - | ||
| (31) | lubricating oil | X | G 052 135 A1 |
