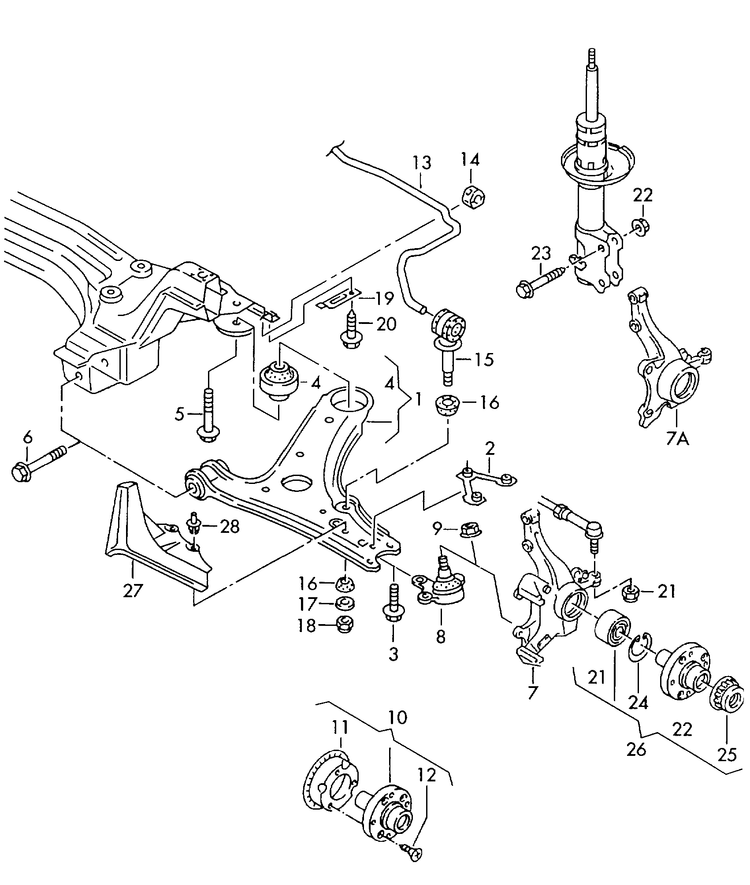

Collection: 407-005 VW Polo 6N 2000>2002 wishbone wheel bearing housing anti-roll bar ALD,AUC,AKK, AKP,AUD,AHW, AUA,AFK,AUB, ARC,APE,AVY, AQQ
| № | Name | Ext. inf. | A* | Use of | Part number | A |
|---|---|---|---|---|---|---|
| wishbone wheel bearing housing anti-roll bar |
ALD,AUC,AKK, AKP,AUD,AHW, AUA,AFK,AUB, ARC,APE,AVY, AQQ |
|||||
| 1 | wishbone | 2 | 6N0 407 151 A | 100 | ||
| 2 | retaining plate | 2 | 6N0 407 175 A | 14 | ||
| 3 | hex collared bolt | 6 | N 101 277 06 | 1 | ||
| 4 | bonded rubber bush | 2 | 6N0 407 181 | 74 | ||
| 5 | hexagon head bolt (combi) | 2 | N 103 199 01 | 3 | ||
| 6 | hex collared bolt | 2 | N 102 415 03 | 5 | ||
| 7 | wheel bearing housing with - brake carrier |
PR-1LB,1LM, 1ZC,1ZN: ALD,AUC,AKK, AKP,AUD |
1 | 6N0 407 255 B | - | |
| (7) | wheel bearing housing with - brake carrier |
PR-1LB,1LM, 1ZC,1ZN: ALD,AUC,AKK, AKP,AUD |
1 | 6N0 407 256 B | - | |
| 7 | wheel bearing housing with - brake carrier for vehicles without anti- lock braking system |
PR-1LB,1LM, 1ZC,1ZN: AHW,AUA,APE |
1 | 6N0 407 255 B | - | |
| (7) | wheel bearing housing with - brake carrier for vehicles without anti- lock braking system |
PR-1LB,1LM, 1ZC,1ZN: AHW,AUA,APE |
1 | 6N0 407 256 B | - | |
| 7A | wheel bearing housing for models with anti-lock brake system -abs- |
PR-1ZE,1ZJ, 1ZK,1LX: AHW,AUA,APE |
1 | 6N0 407 255 C | - | |
| (7A) | wheel bearing housing for models with anti-lock brake system -abs- |
PR-1ZE,1ZJ, 1ZK,1LX: AHW,AUA,APE |
1 | 6N0 407 256 C | - | |
| 7A | wheel bearing housing | PR-1ZE,1ZJ, 1ZK,1LX: AFK,AUB,ARC, AMF,AVY,AQQ |
1 | 6N0 407 255 C | - | |
| (7A) | wheel bearing housing | PR-1ZE,1ZJ, 1ZK,1LX: AFK,AUB,ARC, AMF,AVY,AQQ |
1 | 6N0 407 256 C | - | |
| 8 | guide joint see workshop manual |
PR-1LB,1LM, 1ZC,1ZN |
1 | 6N0 407 365 | 82 | |
| (8) | guide joint see workshop manual |
PR-1LB,1LM, 1ZC,1ZN |
1 | 6N0 407 365 A | 86 | |
| 8 | guide joint for vehicles with tyres: see workshop manual |
PR-1ZE,1ZJ, 1ZK,1LX |
1 | 6N0 407 365 | 82 | |
| (8) | guide joint for vehicles with tyres: see workshop manual |
PR-1ZE,1ZJ, 1ZK,1LX |
1 | 6N0 407 365 A | 86 | |
| 9 | hexagon collar nut self-locking |
2 | N 104 220 01 | - | ||
| 10 | wheel hub with rotor | 2 | 6N0 407 613 | 29 | ||
| 11 | rotor for speed sensor for abs anti-lock braking sys |
2 | 357 614 150 | 3 | ||
| front/centre/rear | 357 614 150 E OT | 1 | ||||
| 12 | countersunk bolt | 6 | N 102 316 01 | - | ||
| (13) | anti-roll bar also use: |
PR-0AB | 1 1 |
6N0 411 309 D | - | |
| (13) | anti-roll bar also use: |
PR-0AD | 1 1 |
6N0 411 309 E | - | |
| (13) | anti-roll bar F >> 6N-1-017 839 marked with: also use: |
PR-0AH |
1 1 |
6N0 411 309 F | - | |
| (13) | anti-roll bar F 6N-1-017 840>> |
PR-0AH |
1 |
6N0 411 309 F | - | |
| 14 | rubber bush | PR-0AB | 2 | 6X0 411 313 | 37 | |
| (14) | rubber bush | PR-0AD,0AH | 2 | 6X0 411 313 A | 37 | |
| (15) | coupling rod | PR-0AB | 2 | 6N0 411 315 C | 69 | |
| (15) | coupling rod | PR-0AD,0AH | 2 | 6N0 411 315 D | 62 | |
| 16 | bearing ring | 4 | 6N0 411 329 | 59 | ||
| 17 | cup spacer | 2 | 191 411 331 | 23 | ||
| 18 | hexagon nut, self-locking | 2 | N 011 184 9 | 20 | ||
| 19 | strap | 2 | 6X0 411 337 | - | ||
| 20 | hex collared bolt | 2 | N 019 519 4 | - | ||
| 21 | hexagon nut, self-locking | 2 | N 903 213 02 | 9 | ||
| 22 | hexagon collar nut self-locking |
4 | N 903 237 04 | 9 | ||
| 23 | hex collared bolt | 4 | N 101 740 02 | 2 | ||
| 24 | securing ring | 2 | N 901 152 01 | 2 | ||
| 25 | 12 point socket shouldered nut self-locking |
2 | N 905 876 02 | 39 | ||
| 26 | wheel bearing with assembly parts |
2 | 6N0 498 625 | 80 | ||
| 27 | air guide | PR-1LB,1LM, 1ZC,1ZN |
1 | 6N0 615 447 A | - | |
| (27) | air guide | PR-1LB,1LM, 1ZC,1ZN |
1 | 6N0 615 448 A | - | |
| (28) | spreader rivet | PR-1LB,1LM, 1ZC,1ZN |
X | N 038 549 1 |
