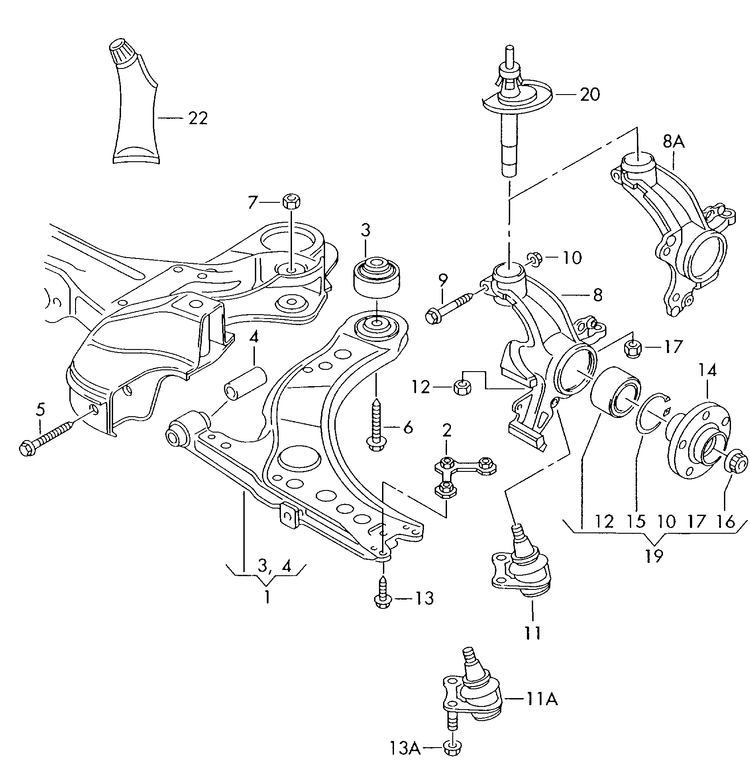

Collection: 407-005 Golf mk4 (1J) Front wishbone wheel bearing housing 4motion+ AZJ,AQN,BDE
| № | Number | Description | Qty |
Date | |||
|---|---|---|---|---|---|---|---|
| wishbone wheel bearing housing 4motion+ AZJ,AQN,BDE front |
|||||||
|
(1)
|
|
wishbone Left complete with ball joint
|
1
|
||||
|
1
|
|
wishbone Right complete with ball joint
|
1
|
||||
|
2
|
|
retaining plate
|
2
|
||||
|
3
|
|
bonded rubber bush
rear
|
2
|
||||
|
4
|
|
bonded rubber bush
front
|
2
|
||||
|
(8)
|
|
wheel bearing housing with - brake carrier
left
PR-1LS,1ZM,
1ZP/ saloon+ AZJ |
1
|
||||
|
(8)
|
|
wheel bearing housing with - brake carrier optional:
left
PR-1LS,1ZM,
1ZP/ saloon+ AZJ |
1
|
||||
|
(8)
|
|
wheel bearing housing with - brake carrier
right
PR-1LS,1ZM,
1ZP/ saloon+ AZJ |
1
|
||||
|
(8)
|
|
wheel bearing housing with - brake carrier optional:
right
PR-1LS,1ZM,
1ZP/ saloon+ AZJ |
1
|
||||
|
(8A)
|
|
wheel bearing housing
left
PR-1LJ,1ZD,
1ZE/ saloon+ AQN,BDE |
1
|
||||
|
(8A)
|
|
wheel bearing housing
right
PR-1LJ,1ZD,
1ZE/ saloon+ AQN,BDE |
1
|
||||
|
(8)
|
|
wheel bearing housing with - brake carrier
left
PR-1LS,1ZM,
1ZP/ estate+ AZJ |
1
|
||||
|
(8)
|
|
wheel bearing housing with - brake carrier optional:
left
PR-1LS,1ZM,
1ZP/ estate+ AZJ |
1
|
||||
|
(8)
|
|
wheel bearing housing with - brake carrier
right
PR-1LS,1ZM,
1ZP/ estate+ AZJ |
1
|
||||
|
(8)
|
|
wheel bearing housing with - brake carrier optional:
right
PR-1LS,1ZM,
1ZP/ estate+ AZJ |
1
|
||||
|
(8A)
|
|
wheel bearing housing
left
PR-1LJ,1ZD,
1ZE/ estate+ AQN,BDE |
1
|
||||
|
(8A)
|
|
wheel bearing housing
right
PR-1LJ,1ZD,
1ZE/ estate+ AQN,BDE |
1
|
||||
|
10
|
|
hexagon collar nut self-locking
M12X1,5
|
2
|
||||
|
(11)
|
|
ball joint
left
|
1
|
||||
|
(11)
|
|
ball joint
right
|
1
|
||||
|
14
|
|
wheel hub with rotor F >> 1J-3-100 000 *
5/100
|
2
|
04.2002 - 06.2002
|
|||
|
(14)
|
|
wheel hub with rotor F 1J-3-100 001>> *
5/100
PR-1LS,1ZM,
1ZP |
2
|
06.2002 - 06.2006
|
|||
|
(14)
|
|
wheel hub with rotor F 1J-3-100 001>> *
5/100
PR-1LJ,1ZD,
1ZE |
2
|
06.2002 - 06.2006
|
|||
|
16
|
|
12 point socket shouldered nut self-locking
M20X1,5
|
2
|
||||
|
19
|
|
wheel bearing with assembly parts
74MM
|
2
|
||||
