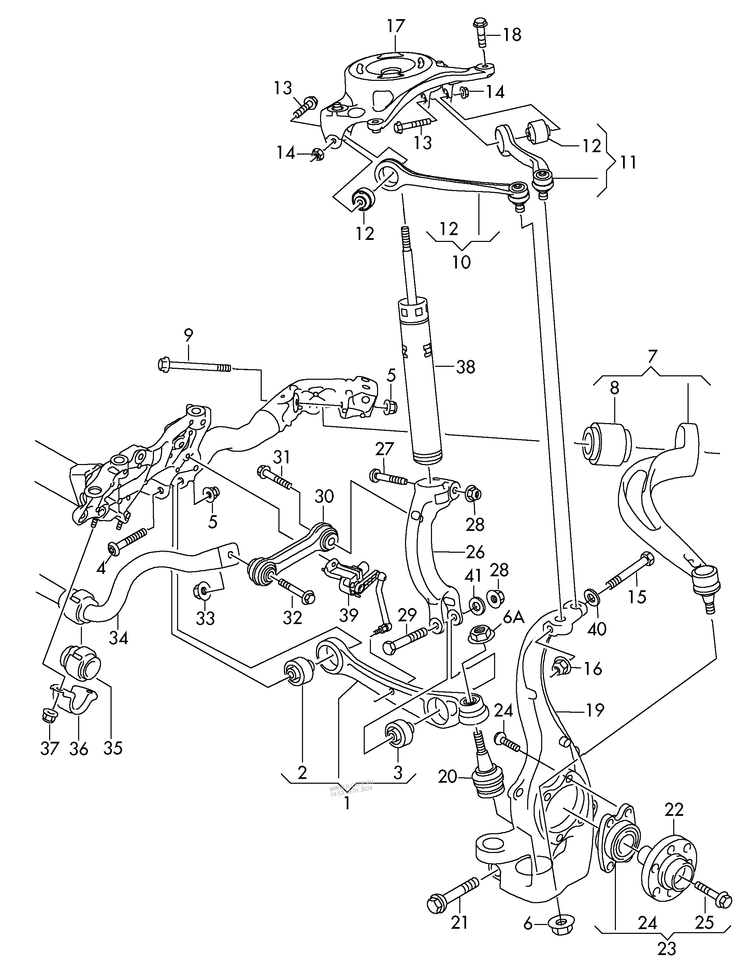

Collection: 407-001 Tiguan Front wishbone / wheel bearing housing & anti-roll bar frt.-wh.dr.+ CBAA,CBAB, CFFB,CFFD
|
(1)
|
111989
|
wishbone D >> - 02.11.2009 (cast version)
aluminium
|
2
|
|
|
(1)
|
113942
|
wishbone D - 03.11.2009>> (sheet metal version)
left
|
1
|
|
|
(1)
|
113945
|
wishbone D - 03.11.2009>> (sheet metal version)
right
|
1
|
|
|
2
|
110060
|
bonded rubber bush
|
2
|
|
|
(3)
|
111084
|
bracket
|
2
|
|
|
(4)
|
|
hex collared bolt
M12X1,5X110
|
2
|
|
|
(5)
|
|
hex collared bolt
M10X70
|
4
|
|
|
6
|
102986
|
wheel bearing housing
left
|
1
|
|
|
(6)
|
1029987
|
wheel bearing housing
right
|
1
|
|
|
7
|
110061
|
guide joint
left
|
1
|
|
|
(7)
|
110063
|
guide joint
right
|
1
|
|
|
(8)
|
|
hexagon nut, self-locking
M12X1,5
|
2
|
|
|
9
|
|
hexagon collar nut
M10
|
6
|
|
|
(10)
|
|
hexagon nut, self-locking
M12X1,5
|
2
|
|
|
(11)
|
116274
|
ball screw
M12X1,5X45
|
8
|
|
|
13
|
27388
|
oval hexagon socket head bolt
M12X1,5X80
|
2
|
|
|
14
|
116941
|
hexagon collar nut self-locking
M12X1,5
|
2
|
|
|
(15)
|
|
hexagon bolt
M8X55
|
4
|
|
|
(16)
|
|
stabilizer, complete
23MM
PR-0AE
|
1
|
|
|
(16)
|
177075
|
stabilizer, complete
23,6MM
PR-0AK
|
1
|
|
|
17
|
110135
|
coupling rod
|
2
|
|
|
(18)
|
|
hexagon collar nut
M12X1,50
|
2
|
|
|
(19)
|
|
hexagon collar nut
M12X1,50
|
2
|
|
|
(20)
|
|
hex collared bolt
M12X1,5X100
|
2
|
|
|
(21)
|
|
dodecagonal head bolt D >> - 18.04.2011
M16X1,5X70
|
2
|
|
|
(21)
|
|
dodecagonal head bolt
M16X1,5X70
|
2
|
|
|
24
|
111081
|
wheel bearing with assembly parts D >> - 18.04.2011
|
2
|
|
|
24
|
111081
|
wheel bearing with assembly parts D - 19.04.2011>>
|
2
|
