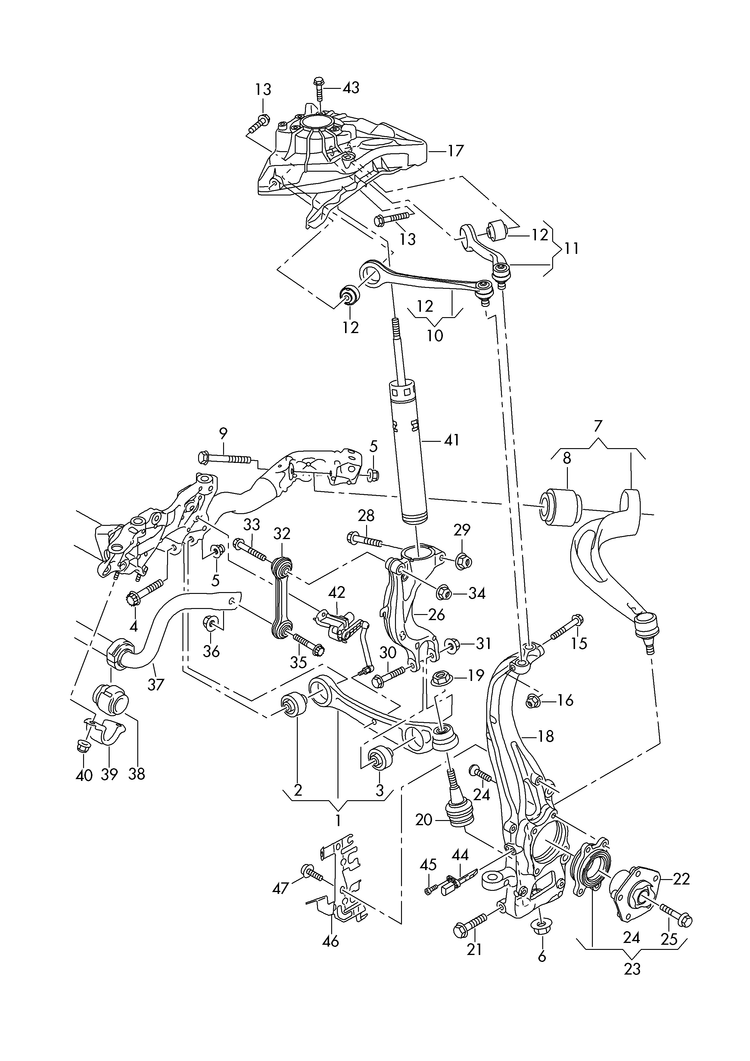

Collection: 407-000 Audi A4 8W 2015>front wishbone links, suspension guide, wheel bearing housing
| № | Name | Ext. inf. | Qty |
Use of | Part number |
|---|---|---|---|---|---|
| front wishbone link suspension guide wheel bearing housing suspension forks |
|||||
| 1 | front wishbone link | 1 | LH | 629707 | |
| (1) | front wishbone link | 1 | RH | 629708 | |
| 2 | bonded rubber bush | 2 | 113966 | ||
| 3 | bonded rubber bush | 2 | 110467 | ||
| 4 | round hd. screw | M12X1,5X92 | 2 | ||
| 5 | hex. nut, self-locking with washer |
M12X1,5 | 4 | ||
| 6 | hexagon collar nut self-locking |
M14X1,5 | 2 | ||
| 7 | suspension guide | 1 | LH | 176371 | |
| (7) | suspension guide | 1 | RH | 176369 | |
| 8 | hydro-mounting | 2 | 113966 | ||
| 9 | hex collared bolt | M12X1,5X110X90 | 2 | ||
| 10 | guide | 1 | LH | 629713 | |
| (10) | guide | 1 | RH | 629714 | |
| 11 | guide | 1 | LH | 629715 | |
| (11) | guide | 1 | RH | 629716 | |
| 12 | bonded rubber bush | 4 | 634445 | ||
| 13 | hexagon flange screw (combi) |
M10X85 | 4 | ||
| 15 | hexagon flange screw | M10X130 | 2 | 113967KP4 | |
| 16 | hexagon collar nut self-locking |
M10 | 2 | ||
| 17 | suspension strut dome cover see illustration, item: |
803-000,6 |
|||
| 18 | wheel bearing housing | 1 | |||
| (18) | wheel bearing housing | 1 | |||
| 19 | hexagon collar nut self-locking |
M14X1,5 | 2 | ||
| 20 | swivel joint | 2 | 114357 | ||
| 21 | hex collared bolt | M10X65 | 2 | ||
| 22 | wheel hub | 2 | 180507 | ||
| 23 | wheel bearing with assembly parts D >> - 30.11.2015 |
2 |
"CDN" |
172413 | |
| (23) | wheel bearing with assembly parts D - 30.11.2015>> |
2 |
"CDN" |
172413 | |
| (23) | wheel bearing with assembly parts |
2 |
"CDN" |
172413 | |
| (23) | wheelhub with bearing contains additional positions: |
22 |
2 | 172413 | |
| 24 | screw with int. serrations | M12X1,25X42 | 8 | ||
| 25 | socket head bolt with inner multipoint head |
M16X1,5X72 | 2 | ||
| 26 | suspension forks D >> - 30.05.2016 |
1 | PR-K8B,K8D+ 1BA,1BE,1BL, 1BQ,1BR |
||
| 26 | suspension forks D - 30.05.2016>> - 11.07.2016 |
1 | PR-K8B,K8D+ 1BA,1BE,1BL, 1BQ,1BR |
||
| (26) | suspension forks D - 11.07.2016>> |
1 | PR-K8B,K8D+ 1BA,1BL,1BQ, 1BR |
||
| (26) | suspension forks D >> - 30.05.2016 |
1 | PR-K8X+1BP, 2MN |
||
| (26) | suspension forks D - 30.05.2016>> |
1 | PR-K8X+1BP, 2MN |
||
| (26) | suspension forks | 1 | PR-2MV | ||
| (26) | suspension forks D - 11.07.2016>> |
1 | PR-1BE | ||
| (26) | suspension forks | 1 | PR-1BD | ||
| (26) | suspension forks D >> - 30.05.2016 |
1 | PR-K8B,K8D+ 1BA,1BE,1BL, 1BQ,1BR |
||
| 26 | suspension forks D - 30.05.2016>> - 11.07.2016 |
1 | PR-K8B,K8D+ 1BA,1BE,1BL, 1BQ,1BR |
||
| (26) | suspension forks D - 11.07.2016>> |
1 | PR-K8B,K8D+ 1BA,1BL,1BQ, 1BR |
||
| (26) | suspension forks D >> - 30.05.2016 |
1 | PR-K8X+1BP, 2MN |
||
| (26) | suspension forks D - 30.05.2016>> |
1 | PR-K8X+1BP, 2MN |
||
| (26) | suspension forks | 1 | PR-2MV | ||
| (26) | suspension forks D - 11.07.2016>> |
1 | PR-1BE | ||
| (26) | suspension forks | 1 | PR-1BD | ||
| 28 | hex collared bolt | M10X80 | 2 | ||
| 29 | hexagon collar nut self-locking |
M10 | 2 | ||
| 30 | hexagon flange screw | M12X1.5X85 | 2 | ||
| 31 | hex. nut, self-locking with washer |
M12X1,5 | 2 | ||
| 32 | coupling rod | 2 | PR-1BA,1BE, 1BL,1BD,1BQ, 2MV |
113367 | |
| (32) | coupling rod | 2 | PR-1BR,1BP, 2MN |
113367A | |
| 33 | 12-point head bolt | M10X85 | 2 | ||
| 34 | hexagon collar nut self-locking |
M10 | 2 | 116946 | |
| 35 | 12-point head bolt | M10X62 | 2 | ||
| 36 | hexagon collar nut self-locking |
M10 | 2 | 116946 | |
| 37 | anti-roll bar associated item/items to be used as necessary: |
38 |
1 | PR-1BA | |
| (37) | anti-roll bar associated item/items to be used as necessary: |
38 |
1 | PR-1BD,1BE, 2MV |
|
| (37) | stabilizer, complete | 1 | PR-1BR,1BL, 1BQ,1BP,2MN |
||
| 38 | rubber bush | 24,8MM | 2 | PR-1BA | 107988 |
| (38) | rubber bush | 26MM | 2 | PR-1BD,1BE, 2MV |
|
| (38) | rubber bush ** not exchangeable ** included in position: |
37 |
PR-1BR,1BL, 1BQ,1BP,2MN |
||
| 39 | clamp | 2 |
