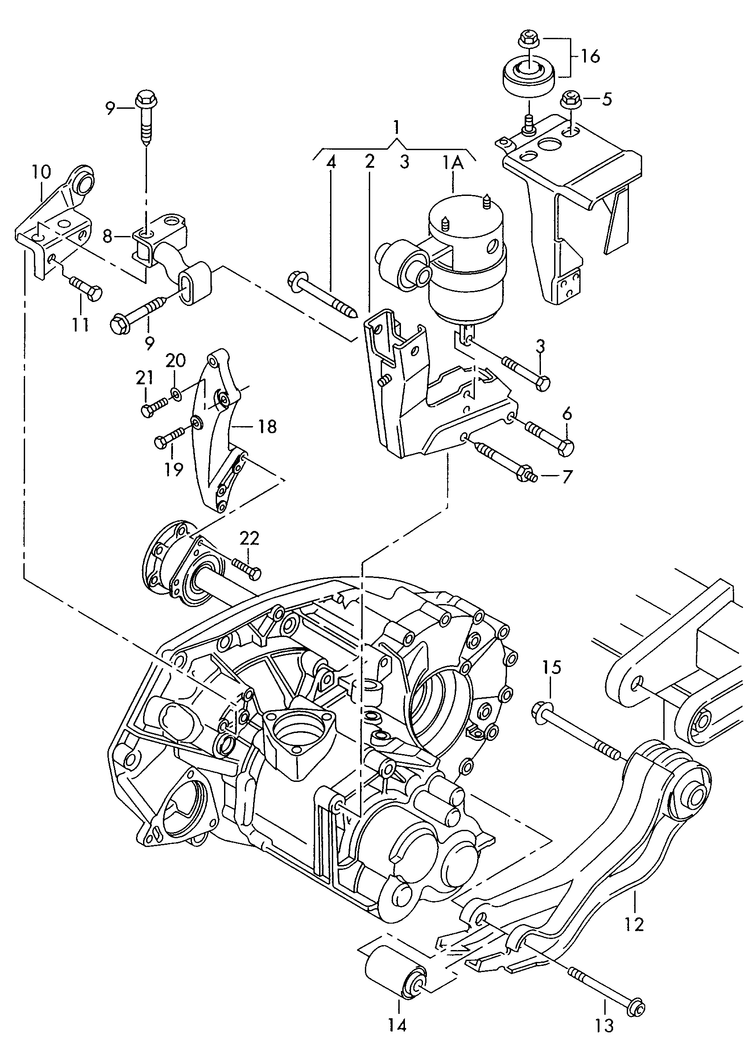

Collection: 399-015 T4 (7D) transmission securing parts for 5 speed manual transmiss. DVC,DCX,DCU, DCW,DKA,DJZ, AFK,AFL

part code title note quantity data model information
    transmission securing parts
for 5 speed manual transmiss.
1 gearbox support 1 4-cylinder
for mechanical clutch operation
-1 gearbox support 1 4-cylinder
for vehicles with hydraulic clutch actuation
-1 110314 gearbox support 1 5-cylinder
-1 gearbox support 1 6-cylinder
1A gearbox support 1
no replacement part
included in position:
2 gearbox support 1
no replacement part
included in position:
3 hexagon head bolt (combi) M12X1,5X35 2
4 hex collared bolt M10X80 1
5 hexagon collar nut M10 2
6 hexagon bolt M10X60 1
7 double stud with hexagon drive M10X65/M8X10 1
8 support 1
9 hexagon head bolt (combi) 3
10 see illustration: 711-30 1
11 see illustration: 711-40 3
12 110141 pendelum rod 1 4-cylinder
-12 174698 pendelum rod 1 5-cylinder
-12 pendelum rod 1 6-cylinder
13
socket head bolt with hexagon socket head (combination) M12X1,5X95X49 1
14 110124 bearing bush 1
15
hex collared bolt M16X1,50X115 1
16 balance weight 199-20 1
see illustration:
18 transmission carrier 1 4-cylinder
-18
transmission carrier 1 5-cylinder
-18 transmission carrier 1 6-cylinder
19 hex collared bolt M10X70 1
20 hexagon bolt M10X50 2
21 washer 10 2
22 hex collared bolt M8X25 2 4-cylinder
-22 hex collared bolt M8X25 2 5-,6-cyl
