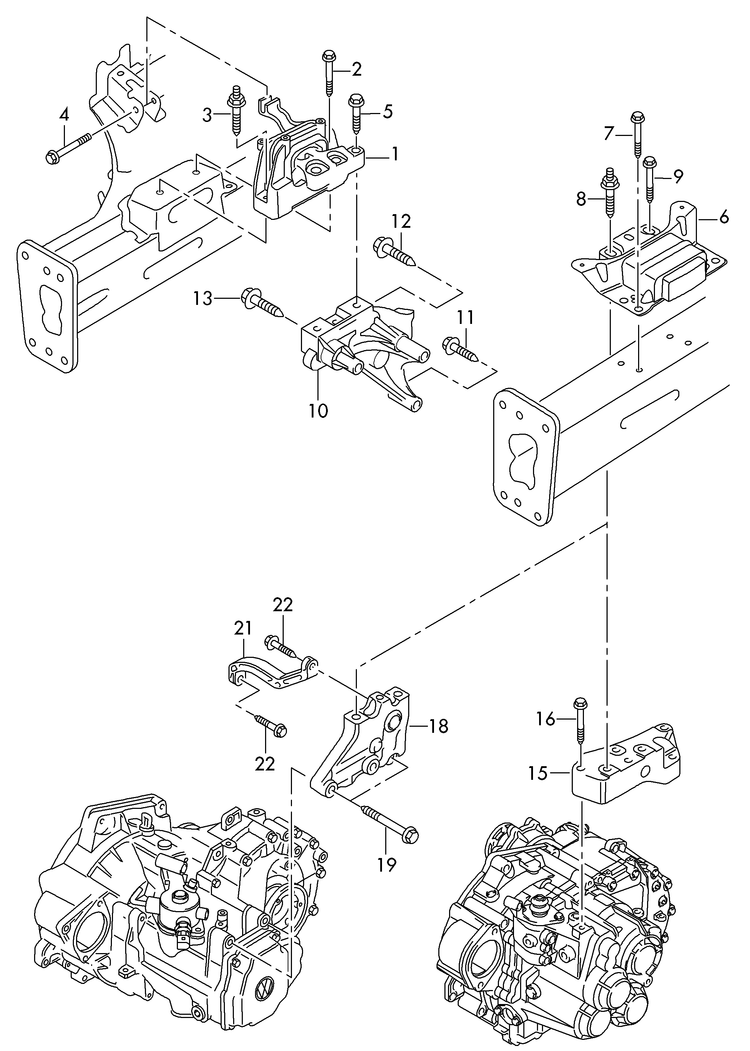

Collection: 199-030 VW Caddy 2011>2015 mounting parts for engine and transmission 1.6ltr. diesel eng.+ manual gearbox+ CAYD,CAYE
| № | Name | Ext. inf. | Q* | Use of | Part number |
|---|---|---|---|---|---|
| mounting parts for engine and transmission |
1.6ltr. | diesel eng.+ manual gearbox+ CAYD,CAYE |
|||
| 1 | engine mounting R/H | 1 | 113920 | ||
| 2 | bolt, hex. hd. with shoulder, self-locking |
M10X55X32 | 1 | ||
| 3 | double stud with hexagon drive | M10X55/M6X12 | 1 | ||
| 4 | hexagon bolt | M8X50 | 1 | ||
| 5 | hex collared bolt | M12X1,5X70 | 2 | ||
| 6 | gearbox mounting L/H | 1 | 110761 | ||
| 7 | hex collared bolt | M10X35 | 4 | ||
| 8 | double stud with hexagon drive | M12X1,5X70/ M8X16 |
1 | ||
| 9 | hex collared bolt | M12X1,5X70 | 2 | ||
| 10 | engine support | 1 | |||
| 11 | double stud with hexagon drive | M10X90/M6X20 | 1 | ||
| 12 | hexagon collared bolt with multi-point socket head (duo) |
M10X115 | 1 | ||
| 13 | hexagon collared bolt with multi-point socket head (duo) |
M10X75 | 1 | ||
| 15 | console not for this model |
||||
| 16 | hex collared bolt not for this model |
||||
| 18 | console | 1 |
