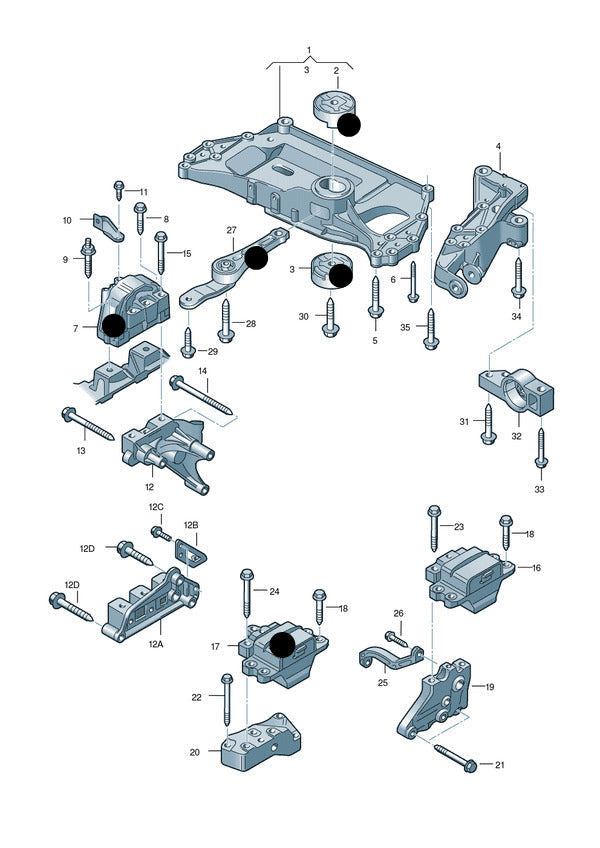

Collection: 199-025 mounting parts for engine and transmission 1.8-2.5ltr. 4-cylinder+ Petrol eng.+ CBFA,CCTA, CCZB,CDAA, CDLC,CDLF, CDLG 5-cylinder+ Petrol eng.+ CBTA,CBUA
| mounting parts for engine and transmission |
1.8-2.5ltr. | X | 4-cylinder+ Petrol eng.+ CBFA,CCTA, CCZB,CDAA, CDLC,CDLF, CDLG 5-cylinder+ Petrol eng.+ CBTA,CBUA |
||
| 1 | Assembly carrier | 1 | |||
| 2 | 110137 | Bonded rubber bush | upper | 1 | |
| 3 | 110134 | Bonded rubber bush | lower | 1 | |
| 4 | 55950 | Console | left | 1 | |
| (4) | 55951 | Console | right | 1 | |
| 5 | Hex collared bolt | M12X1,5X75 | 2 | ||
| 6 | Hex collared bolt | M8X75 | 4 | ||
| (6) | Hex collared bolt | M10X76 | 3 | ||
| 7 | 110159 | engine mounting | right | 1 | CBFA,CCTA, CCZB,CDAA |
| (7) | Engine support | 1 | CBTA,CBUA | ||
| (7) | engine mounting | right | 1 | CDLC,CDLF, CDLG |
|
| 8 | bolt, hex. hd. with shoulder, self-locking |
M10X55X32 | 1 | CBFA,CCTA, CCZB,CDAA, CDLC,CDLF, CDLG |
|
| (8) | Hex collared bolt | M10X55 | 2 | CBTA,CBUA | |
| 9 | double stud with hexagon drive | M10X55/M6X12 | 1 | CBFA,CCTA, CCZB,CDAA, CDLC,CDLF, CDLG |
|
| (9) | Hex collared bolt | M10X55 | 2 | CBTA,CBUA | |
| (9) | Hexagon bolt | M10X35 | 1 | CBTA,CBUA | |
| 10 | Support | right | 1 | CBFA,CCTA, CCZB,CDAA, CDLC,CDLF, CDLG |
|
| (10) | Support | right | 1 | CBTA,CBUA | |
| 11 | Hex collared bolt | M8X25 | 2 | ||
| (12) | timing case see illustration, item: |
109-092,1 | CBTA,CBUA | ||
| 12 | Engine support | right | 1 | CBFA,CCTA, CCZB,CDAA |
|
| (12) | Engine support | right | 1 | CDLC,CDLF, CDLG |
|
| 12A | Support Not for this model |
||||
| 12B | Support Not for this model |
||||
| 12C | Hex collared bolt Not for this model |
||||
| 12D | Hex collared bolt Not for this model |
||||
| 13 | Hexagon bolt | M10X95 | 2 | CDLC,CDLF, CDLG |
|
| (13) | Socket head bolt with inner multipoint head |
M10X65 | 3 | CBFA,CCTA, CCZB,CDAA |
|
| 14 | Hex collared bolt | M10X70X32 | 1 | CDLC,CDLF, CDLG |
|
| 15 | Hex collared bolt | M12X1,5X70 | 2 | ||
| 16 | 110761 | gearbox mounting | left | 1 | Manual gearbox+ CDAA |
| (16) | 110129 | gearbox mounting | left | 1 | 5-speed man.g/box.+ CBTA,CBUA |
| (16) | 176511 | gearbox mounting | 1 | 6-speed automatic+ CBTA,CBUA |
|
| 17 | 110762 | gearbox mounting | left | 1 | 6-speed man.g/box+ CBFA,CCTA, CCZB,CDLG |
| (17) | 110762 | gearbox mounting | left | 1 | 6-speed dual clutch gearbox+ CBFA,CCTA, CCZB |
| (17) | 110129 | gearbox mounting | left | 1 | 7-speed dual clutch gearbox+ CDAA |
| (17) | 22932 | gearbox mounting | left | 1 | 6-speed man.g/box+ CDLC,CDLF |
| (17) | 177313 | gearbox mounting | left | 1 | 6-speed dual clutch gearbox+ CDLC,CDLF, CDLG |
| 18 | bolt, hex. hd. with shoulder, self-locking |
M10X55X32 | 4 | ||
| 19 | Console | left | 1 | Manual gearbox+ CBTA,CBUA, CDAA |
|
| (20) | Console | left | 1 | 6-speed dual clutch gearbox+ CBFA,CCTA, CCZB,CDLC, CDLF,CDLG |
|
| 20 | Console | left | 1 | 6-speed man.g/box+ CBFA,CCTA, CCZB,CDLC, CDLF,CDLG |
|
| (20) | Console | left | 1 | 7-speed dual clutch gearbox+ CDAA |
|
| (20) | Console | left | 1 | 6-speed automatic+ CBTA,CBUA |
|
| 21 | Hex collared bolt | M10X70 | 3 | Manual gearbox+ CBTA,CBUA CDAA |
|
| 22 | Hex collared bolt | M12X1,5X78 | 2 | 6-speed man.g/box+ CBFA,CCTA, CCZB,CDLC, CDLF,CDLG |
|
| (22) | double stud with hexagon drive | M12X78/M8X16 | 1 | 6-speed man.g/box+ CBFA,CCTA, CCZB,CDLC, CDLF,CDLG |
|
| (22) | Hex collared bolt | M10X55 | 3 | 6-speed dual clutch gearbox+ CBFA,CCTA, CCZB,CDLC, CDLF,CDLG |
|
| (22) | Hex collared bolt | M10X55 | 3 | 6-speed automatic+ CBTA,CBUA |
|
| (22) | double stud with hexagon drive | M10X55/M8X16 | 1 | 7-speed dual clutch gearbox+ CDAA |
|
| (22) | double stud with hexagon drive | M10X55/M8X16 | 1 | 6-speed dual clutch gearbox+ CBFA,CCTA, CCZB,CDLC, CDLF,CDLG |
|
| (22) | double stud with hexagon drive | M10X55/M8X16 | 1 | 6-speed automatic+ CBTA,CBUA |
|
| (22) | Hex collared bolt | M10X55 | 2 | 7-speed dual clutch gearbox+ CDAA |
|
| 23 | Hex collared bolt | M12X1,5X70 | 2 | Manual gearbox+ CBTA,CBUA, CDAA |
|
| (23) | Hex collared bolt | M12X1,5X70 | 3 | 6-speed automatic+ CBTA,CBUA |
|
| 24 | Hex collared bolt | M12X1,5X70 | 3 | CBFA,CCTA, CCZB,CDLC, CDLF,CDLG |
|
| 24 | Hex collared bolt | M12X1,5X70 | 2 | 7-speed dual clutch gearbox+ CDAA |
|
| 25 | Gearbox support | 1 | Manual gearbox+ CBTA,CDAA |
||
| 26 | Hex collared bolt | M8X45 | 2 | 6-speed man.g/box+ CDAA |
|
| 27 | 110132 | Pendulum support | rear | 1 | |
| 28 | bolt,hex.hd.with shoul.(combi) | M10X75 | 1 | ||
| 29 | hexagon head bolt (combi) | M10X35 | 1 | ||
| 30 | hexagon head bolt (combi) | M14X1,5X70 | 1 | ||
| 31 | Hex collared bolt | M10X76 | 4 | ||
| 32 | 111020 | Bracket | left | 1 | |
| 32 | 111020 | Bracket D >> - 28.02.2010 |
left | 1 | Driving sch. |
| (32) | 114403 | Bracket D - 01.03.2010>> |
left | 1 | Driving sch. |
| (32) | 111021 | Bracket | right | 1 | |
| (32) | 111021 | Bracket D >> - 28.02.2010 |
right | 1 | Driving sch. |
| (32) | 114404 | Bracket D - 01.03.2010>> |
right | 1 | Driving sch. |
