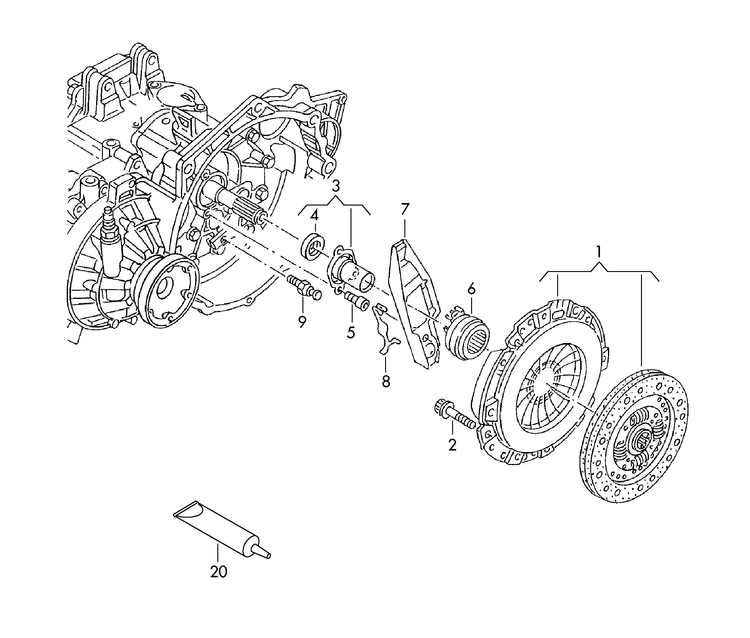

Name |
Ext. inf. |
q |
Use of |
Part number |
|
Clutch |
1.4ltr. |
|
diesel eng.+
CUSA,CUSB,
CUTA,CYZA,
CYZB |
|
| 1 |
clutch plate and
pressure plate
D >> - 25.05.2015
note
technical product information: |
228MM LUK
2039968 |
1 |
|
|
| 1 |
clutch plate and
pressure plate
D >> - 25.05.2015
note
technical product information: |
228MM LUK
2039968 |
1 |
|
|
| 1 |
clutch pressure plate
D - 26.05.2015>> - 01.11.2015
note
technical product information:
to use for: |
228MM
2039968
04B 105 269 A |
1 |
|
|
| 1 |
clutch plate
D - 26.05.2015>> - 01.11.2015
note
technical product information:
to use for: |
228MM
2039968
04B 105 269 A |
1 |
|
|
| 1 |
clutch pressure plate
D - 02.11.2015>>
observe
technical service handbook:
to use for: |
228MM VALEO
2039968
04B 105 269 |
1 |
|
|
| 1 |
clutch plate
D - 02.11.2015>>
note
technical product information:
to use for: |
228MM VALEO
2039968
04B 105 269 |
1 |
|
|
| 2 |
socket head bolt with inner
multipoint head
to use for: |
M6X16
03L 141 025 Q |
9 |
|
|
| 2 |
12-point head bolt
to use for: |
M7X26X15
04B 141 025 |
6 |
|
|
| 3 |
guide sleeve
with hydraulic operation |
|
1 |
|
100353 |
| 4 |
shaft oil seal |
21,8X35X7 |
1 |
|
101776 |
| 5 |
socket head bolt with inner
multipoint head |
M7X14 |
3 |
|
|
| 6 |
release bearing |
|
1 |
|
990198 |
| 6 |
release bearing |
|
1 |
|
100352 |
| 7 |
clutch operating lever |
|
1 |
|
109642 |
| 8 |
retaining spring |
|
1 |
|
114366 |
| 9 |
ball stud |
|
1 |
|
109644 |
