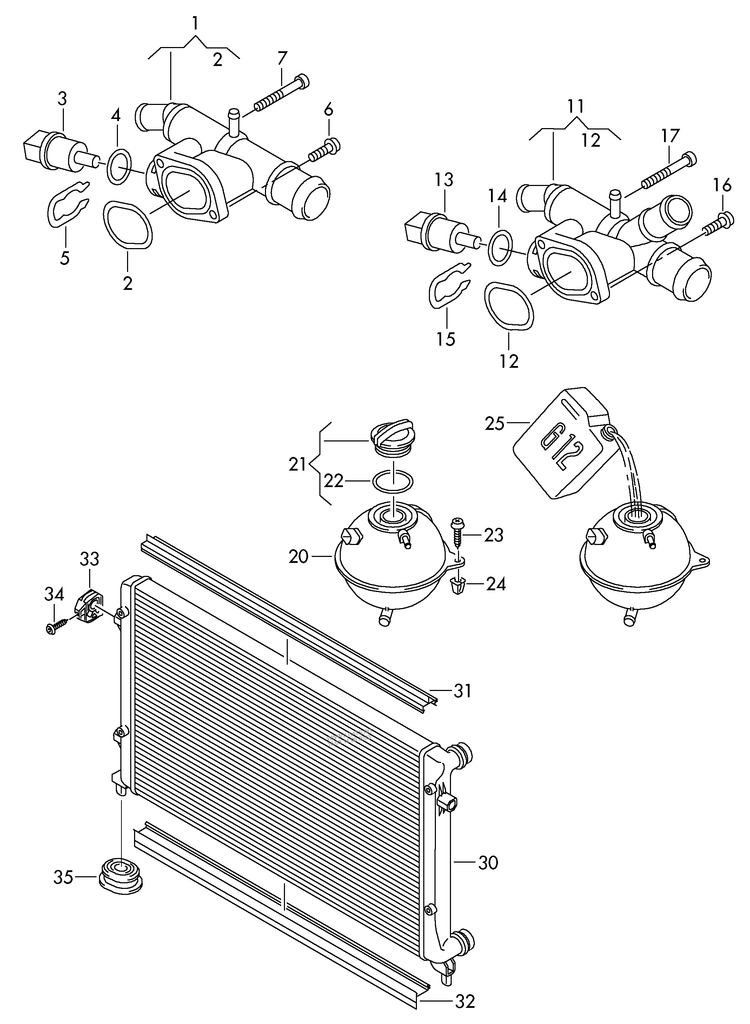

Collection: 121-086 Tiguan flange reservoir cooler for coolant 4-cylinder+ diesel eng.+ CBAA,CBAB, CBBB,CBBA 2.0 ltr.
|
1
|
116354
|
flange with sealing ring D >> - 02.08.2009
|
1
|
|
|
2
|
|
seal D >> - 02.08.2009
60,74X45,6X4,5
|
1
|
|
|
3
|
109896
|
coolant temperature sender D >> - 02.08.2009
|
1
|
|
|
4
|
104529
|
o-ring D >> - 02.08.2009
19,6X3,65
|
1
|
|
|
5
|
107319
|
retaining spring D >> - 02.08.2009
|
1
|
|
|
6
|
|
double stud with hexagon drive D >> - 02.08.2009
M6X22/M6X12
|
1
|
|
|
7
|
|
hexagon head bolt (combi) D >> - 02.08.2009
M6X75X37
|
1
|
|
|
11
|
116532
|
flange with sealing ring D - 03.08.2009>>
|
1
|
|
|
12
|
|
seal D - 03.08.2009>>
60,74X45,6X4,5
|
1
|
|
|
13
|
109896
|
coolant temperature sender D - 03.08.2009>>
|
1
|
|
|
14
|
104529
|
o-ring D - 03.08.2009>>
19,6X3,65
|
1
|
|
|
15
|
107319
|
retaining spring D - 03.08.2009>>
|
1
|
|
|
16
|

|
double stud with hexagon drive D - 03.08.2009>>
M6X22/M6X12
|
1
|
|
|
17
|
|
hexagon head bolt (combi) D - 03.08.2009>>
M6X75X37
|
1
|
|
|
20
|
110055
|
coolant expansion tank
|
1
|
|
|
21
|
118075
|
end cap
|
1
|
|
|
22
|
103007
|
o-ring
28,5X3,8
|
1
|
|
|
23
|
|
oval head self-tapping screw
5X20
|
3
|
|
|
24
|
107617 |
insert nut
|
3
|
|
|
25
|
38200
|
coolant concentrate
1.0 ltr.
|
X
|
|
|
(25)
|
|
coolant concentrate
60ltr.
|
X
|
|
|
(25)
|
|
coolant concentrate
210 l
|
X
|
|
|
(25)
|
|
coolant additive, plus-plus
5.0 ltr.
|
1
|
|
|
30
|
|
cooler for coolant
648X450MM
|
1
|
|
|
30
|
|
cooler for coolant
648X450MM
|
1
|
|
|
31
|
|
seal
upper
|
1
|
|
|
32
|
|
seal
lower
|
1
|
|
|
32
|
|
seal
lower
|
1
|
|
|
33
|
104149
|
bracket
|
2
|
|
|
34
|
|
hexagon socket head panel bolt
6X18,5
|
2
|
|
|
35
|
112412
|
bush
lower
|
2
|
