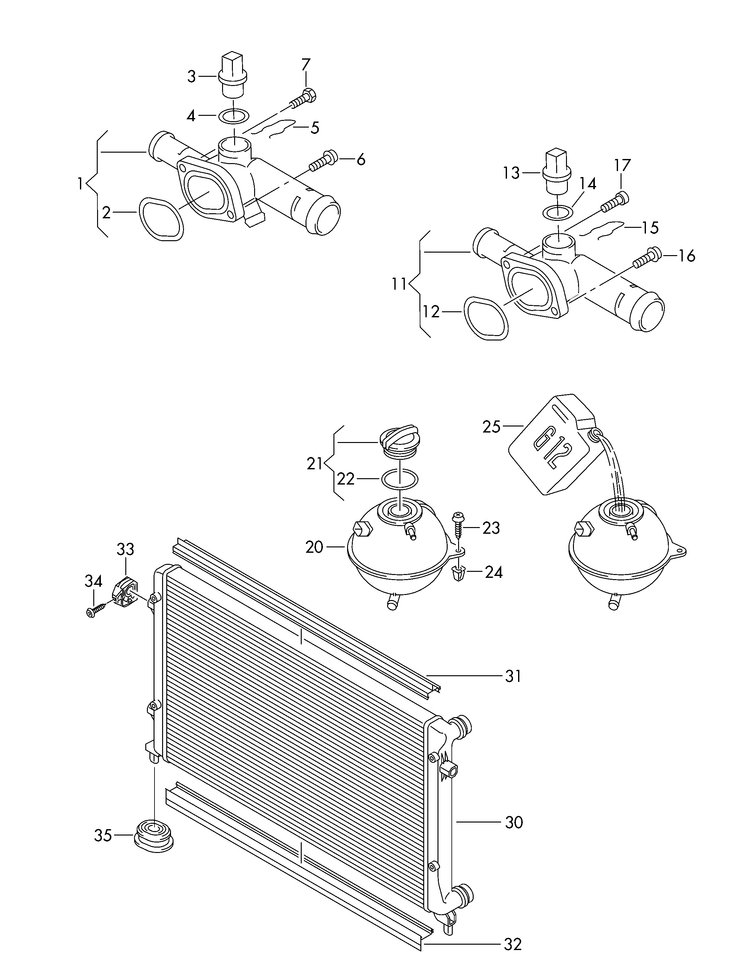

Collection: 121-076 Golf mk5 (1K) 2004>2009 cooler for coolant flange reservoir 4-cylinder+ BSE,BSF diesel eng.+ BDK,BMM,BLS, BMN,BVB
| № | Name | Ext. inf. | Qty* | Part number |
|---|---|---|---|---|
| cooler for coolant flange reservoir |
4-cylinder+ BSE,BSF diesel eng.+ BDK,BMM,BLS, BMN,BVB |
|||
| 1 | flange with sealing ring | automatic+ BSE |
1 | 110364 |
| 1 |
flange with sealing ring | BDK | 1 |
110361 |
| 2 |
o-ring | BSE,BDK | 1 |
100722 |
| 3 |
double temperature sensor | automatic+ BSE |
1 |
109385 |
| 3 |
coolant temperature sender | BDK |
1 |
109896 |
| 4 |
o-ring | BSE,BDK | 1 |
104529 |
| 5 |
retaining spring | BSE,BDK | 1 |
107319 |
| 11 |
flange with sealing ring | manual gearbox+ BSE,BSF |
1 |
110363 |
| 11 |
flange with sealing ring | BMM,BLS,BMN | 1 |
110360 |
| 11 |
flange with sealing ring | BLS,BMM,BMN, BVB |
1 |
110360 |
| 12 |
o-ring | BSE,BSF,BMM. BLS,BMN |
1 |
100722 |
| 12 |
o-ring | BLS,BMM,BMN, BVB |
1 |
N/A |
| 13 |
coolant temperature sender | BSE,BSF,BMM, BLS,BMN,BVB |
1 |
109896 |
| 14 |
o-ring | BSE,BSF,BMM, BLS,BMN,BVB |
1 |
104529 |
| 15 |
retaining spring | BSE,BSF,BMM, BLS,BMN,BVB |
1 |
107319 |
| 20 |
coolant expansion tank | 1 |
110085 | |
| 21 |
expansion tankcap | 1 |
111023 | |
| 22 |
o-ring | 1 |
103007 | |
| 24 |
insert nut | X |
107617 | |
| 25 |
coolant additive, plus-plus | X |
38200 |
