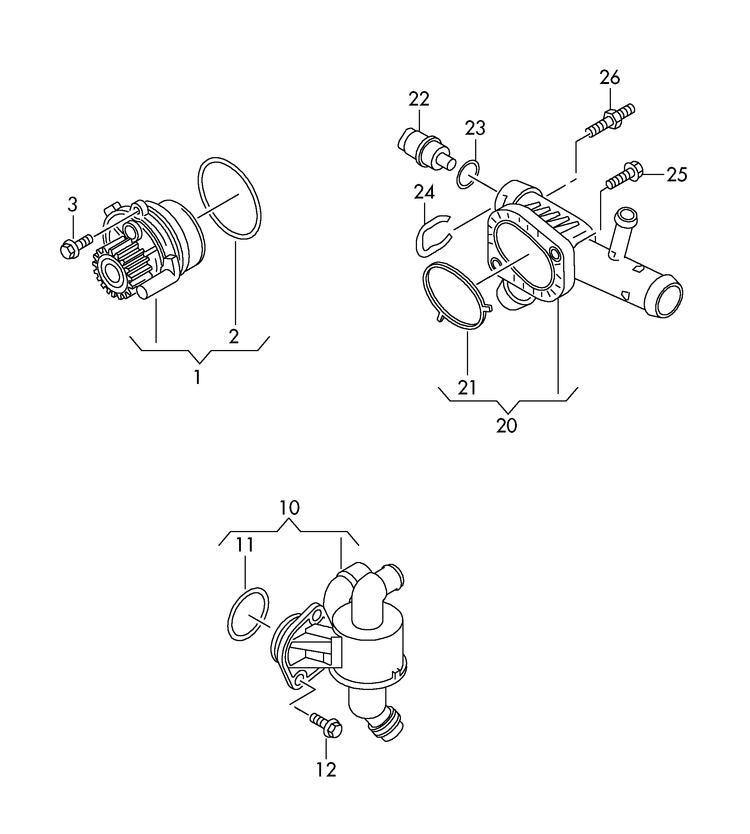

Collection: 121-006 A4 8K 2008> coolant pump coolant regulator flange with sealing ring 4-cylinder+ diesel eng.+ CJCB
| № | Name | Ext. inf. | QTY | Use of | Part number | |
|---|---|---|---|---|---|---|
| coolant pump coolant regulator flange with sealing ring |
4-cylinder+ diesel eng.+ CJCB |
|||||
| 1 | coolant pump with sealing ring (2) |
1 | 113132 | |||
| 1 | ||||||
| 2 | o-ring | 1 | ||||
| 3 | hexagon socket head bolt with shoulder |
3 | ||||
| 10 |
coolant regulator housing with thermostat |
1 | 104761 | |||
| 11 | o-ring | 1 | 116418 | |||
| 12 | hexagon socket head bolt with shoulder |
2 | ||||
| 20 | flange with sealing ring | 1 | ||||
| 21 | seal | 1 | ||||
| 22 | coolant temperature sender | 1 | 109896 | |||
| 23 | o-ring | 1 | 104529 | |||
| 24 | retaining spring | 1 | 107319 |
