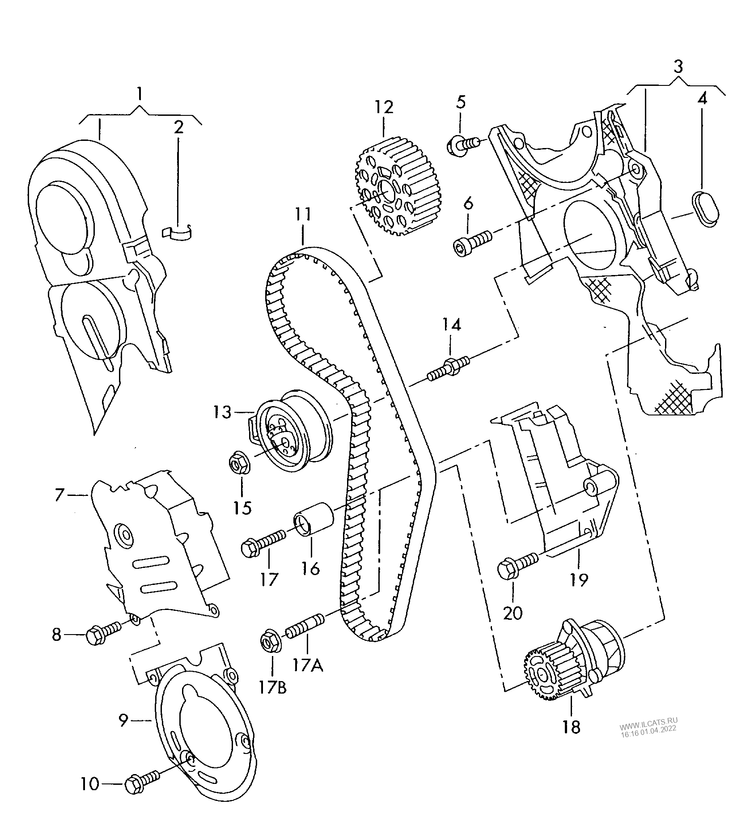

109-072 Passat 3B toothed belt toothed belt guard diesel eng.+ AVB,AVF,AWX 1.9ltr. upto: 2002

№  Number Description Cnt Date
toothed belt toothed belt guard
diesel eng.+
AVB,AVF,AWX
1.9ltr.
(1)

toothed belt guard
upper
1
1

toothed belt guard
upper
1
2

spring clip
2
3

cover plate
1
4

bungs
1
4

bungs
1
5

hexagon head bolt (combi)
M6X16
1
6

socket head bolt with hexagon socket head
M8X20
1
(7)

toothed belt guard
center
1
7

toothed belt guard
center
1
8

hexagon head bolt (combi)
M6X16
3
(9)

toothed belt guard
lower
1
9

toothed belt guard
lower
1
10

hexagon head bolt (combi)
M6X16
2
(11)
109353
toothed belt
Z=120
1
11
109353
toothed belt
Z=120
1
13
108252
tensioning roller also use:
038 109 454 A
1;1
14

threaded pin
M10XM8X73
1
15

hexagon collar nut
M8
1
16
108253
idler pulley
1
17

hex collared bolt
M8X40
1
19
109143
belt tensioner damper
1
20

hexagon socket head bolt with shoulder
M7X21,5
2
