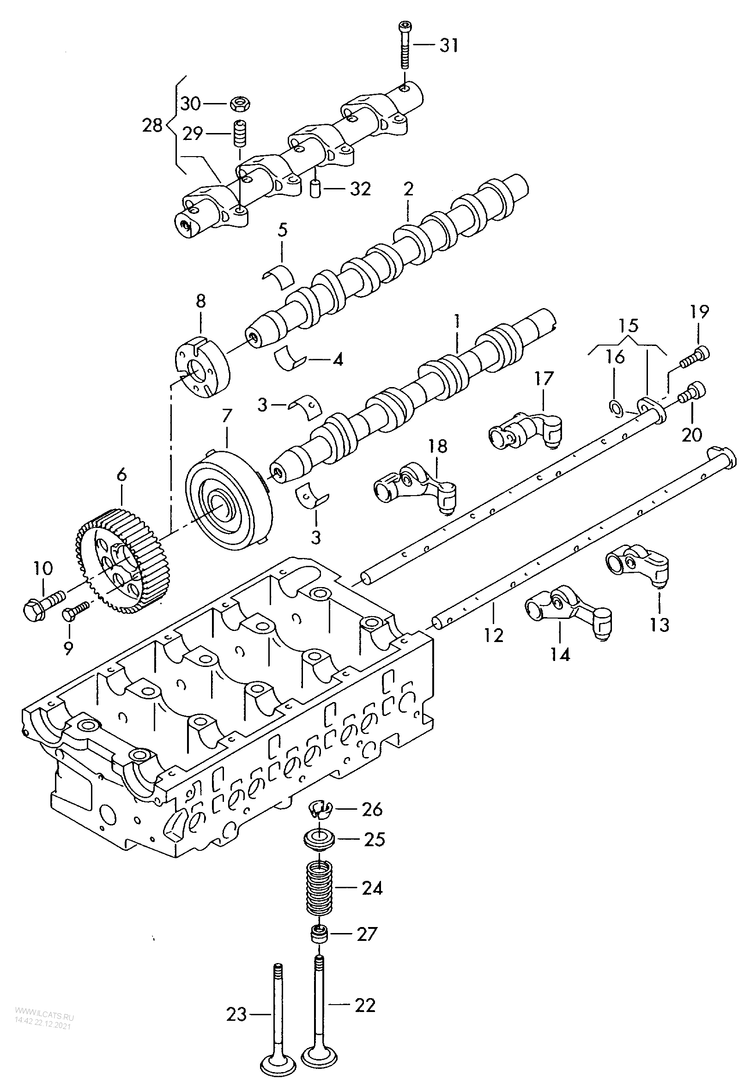

Collection: 109-025 Golf MK5 camshaft, valves diesel eng.+ AZV,BKD,BMN 2.0 ltr.

№	Number	Description	Cnt	Date
camshaft, valves diesel eng.+ AZV,BKD,BMN 2.0 ltr.
1	647228	camshaft inlet	1
2	647229	camshaft outlet AZV,BKD	1
(2)	647240	camshaft outlet BMN	1
3		camshaft bearing shell inlet	10
4		camshaft bearing shell outlet lower	5
5		camshaft bearing shell outlet upper	5
6		toothed belt pulley	2
(7)		hub inlet BMN	1
(7)		hub inlet BMN	1
8		hub outlet	1
9		hex collared bolt M8X30	6
10		hexagon head bolt (combi) M12X1,5X35	2
12		axle inlet	1
13	111628	roller rocker arm inlet	4
14	111629	roller rocker arm inlet	4
15		axle outlet	1
16		o-ring 12X1,9	1
17	111630	roller rocker arm outlet	4
18	111631	roller rocker arm outlet	4
19		fillister head bolt with multi-point socket head M6X18	1
19		socket head bolt with hexagon socket head M6X18	1
20		hexagon socket head bolt M8X12	1
22	110200	inlet valve 87,8	8
23	110198	exhaust valve 87,5	8
24		valve spring	16
25		spring disc upper	16
26	01017	cotter, split	32
27	107502	valve stem seal 6MM	16
(28)		rocker arm shaft with rocker arm F >> 1K-6B061 177 * F >> 1K-6P016 004 * F >> 1K-6U009 189 * F >> 1K-6W061 588 *	1	05.2005 - 09.2005
28		rocker arm shaft with rocker arm also use: WHT 002 791	1;;4
-		ball pin 8	X
-		ball pin	X
29	115129	adjusting screw with ball- head M12X1,25X26,75	4
29	115129	adjusting screw with ball- head M12X1,25X26,75	4
30		hexagon nut M12X1,25	4
31		socket head bolt with inner multipoint head M8X58	5
32		cylinder pin 6X12	1
