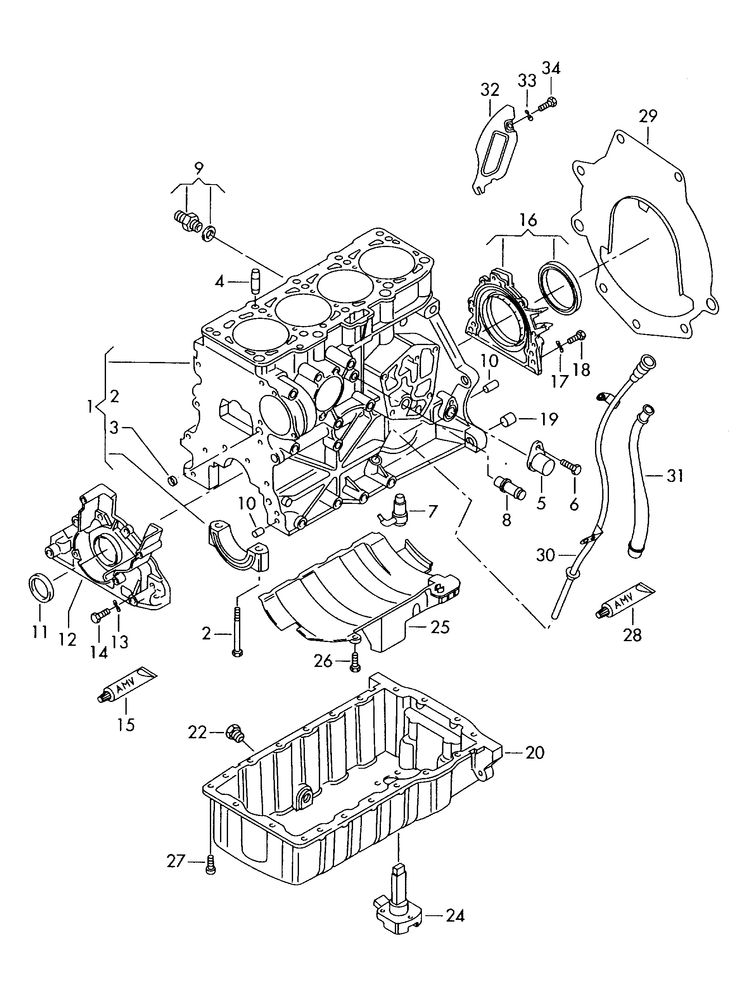

Collection: 103-010 Tiguan crankcase housing oil sump balancer shaft petrol eng.+ CAWA,CAWB, CCTA,CCZA, CCZC 2.0 ltr.
|
14
|
117042
|
sealing flange see workshop manual
rear
|
1
|
|
|
14
|
117042
|
sealing flange
rear
|
1
|
|
|
15
|
109660
|
silicone sealant
70ml
|
X
|
|
|
16
|
|
hexagon socket flat head bolt
M6X12
|
8
|
|
|
17
|
|
pipe
|
1
|
|
|
18A
|
|
repair set for balancer shafts
|
1
|
|
|
18A
|
|
repair set for balancer shafts
|
1
|
|
|
19
|
112883
|
shaft oil seal
36,3X7
|
1
|
|
|
21
|
|
hexagon socket flat head bolt
M6X12
|
2
|
|
|
22
|
|
intermediate shaft
|
1
|
|
|
23
|
|
o-ring
10,3X2,4
|
1
|
|
|
24
|
|
chain sprocket
|
1
|
|
|
25
|
|
thrust washer
8,2X28X3
|
1
|
|
|
26
|
|
socket head bolt with inner multipoint head
M8X55
|
1
|
|
|
27
|
171356
|
timing case
|
1
|
|
|
-
|
109660
|
silicone sealant
70ml
|
1
|
|
|
28
|
113630
|
shaft oil seal
60X8
|
1
|
|
|
29
|
|
bungs
|
1
|
|
|
30
|
|
oval hexagon socket head bolt
M6X16
|
15
|
|
|
31
|
|
pulley
|
1
|
|
|
32
|
|
hexagon collared bolt with multi-point socket head (duo)
M6X16,5
|
1
|
|
|
33
|
|
toothed belt guard
|
1
|
|
|
34
|
|
oval hexagon socket head bolt
M6X30
|
1
|
|
|
(34)
|
|
hexagon socket flat head bolt
M6X12
|
1
|
|
|
35
|
|
oil separator
|
1
|
|
|
36
|
789960
|
seal
|
1
|
|
|
37
|
|
fillister head bolt with multi-point socket head
M6X18
|
9
|
|
|
38
|
113320 |
engine oil sump upper part
CAWA,CAWB,
CCTA |
1
|
|
|
(38)
|
113320
|
engine oil sump upper part
CCZA,CCZC
|
1
|
|
|
39
|
screw with int. serrations
M8X20
CAWA,CAWB,
CCTA |
12
|
||
|
(39)
|
|
screw with int. serrations
M8X20
CCZA,CCZC
|
11
|
|
|
40
|
|
hexagon socket head bolt
M8X85
|
2
|
|
|
41
|
|
insert
CAWA,CAWB,
CCTA |
1
|
|
|
(41)
|
|
insert
CCZA,CCZC
|
1
|
|
|
(41)
|
|
insert
CCZA,CCZC
|
1
|
|
|
42
|
|
non-return valve
|
1
|
|
|
43
|
|
seal
|
1
|
|
|
44
|
|
oval hexagon socket head bolt
M6X30
|
1
|
|
|
45
|
|
oval hexagon socket head bolt
M6X20
|
2
|
|
|
46
|
|
oil sump-lower part also use:
03G 103 707
038 103 196 N 015 082 13 PR-QG0
PR-QG0 PR-QG0 |
1;1;1;3
|
|
|
(46)
|
|
oil sump-lower part
|
1
|
|
|
46
|
113320
|
oil sump-lower part also use:
03G 103 707
038 103 196 N 015 082 13 PR-QG0
PR-QG0 PR-QG0 |
1;1;1;3
|
|
|
-
|
115032
|
cover for oil sump
PR-QG0
|
1
|
|
|
-
|
115439
|
seal ring
PR-QG0
|
1
|
|
|
-
|
|
hexagon collar nut
M6
PR-QG0
|
3
|
|
|
47
|
|
sealing plug
M14X1,5
|
1
|
|
|
47
|
118431
|
seal ring
14X20
|
1
|
|
|
49
|
109660
|
silicone sealant
70ml
|
X
|
