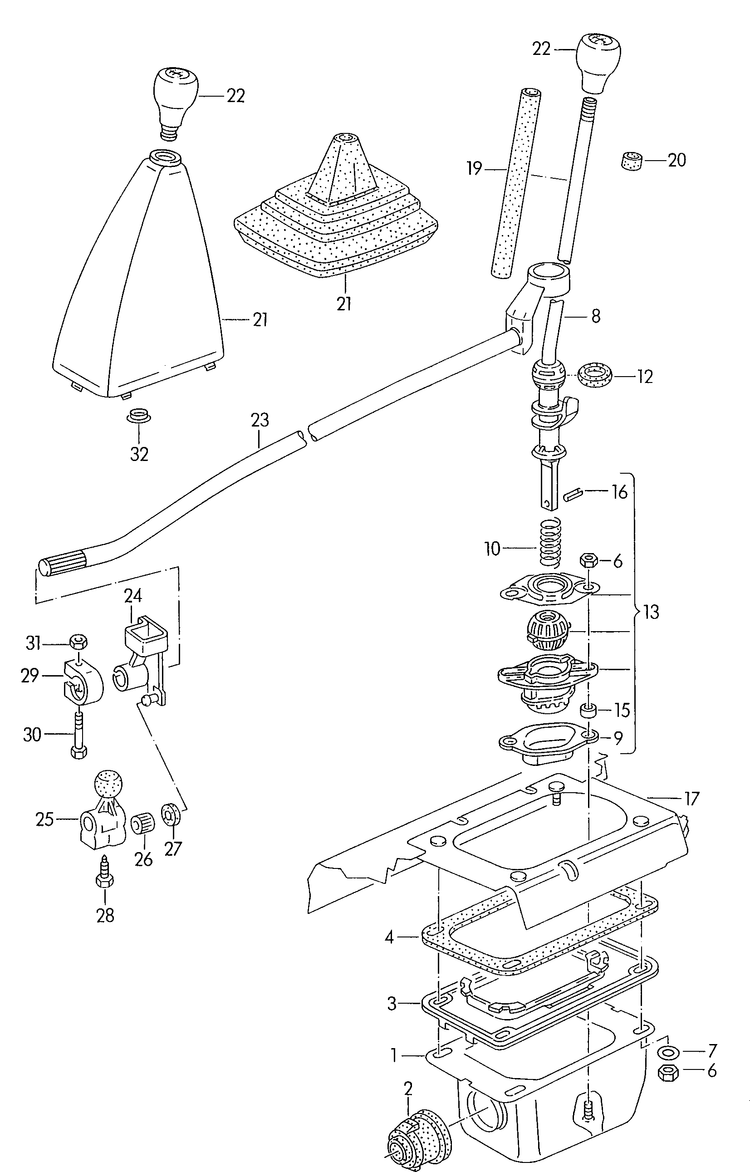

Collection: 046-000 VW Polo 1985>1994 Gear selector mechanism
| № | Name | Ext. inf. | A* | Use of | Part number | A |
|---|---|---|---|---|---|---|
| selector mechanism | ||||||
| 1 | housing for shift mechanism |
1 | 867 711 061 A | - | ||
| 2 | bearing ring | 1 | 191 711 190 A | 5 | ||
| 2 | bearing ring | 1 | 191 711 190 B | 6 | ||
| 3 | stop plate | 1 | 867 711 246 | - | ||
| 4 | seal | 1 | 867 711 267 A | - | ||
| 6 | hexagon nut, self-locking | 6 | N 022 148 12 | - | ||
| 6 | hexagon nut, self-locking | 6 | N 022 148 11 | - | ||
| 7 | washer | 4 | N 011 666 10 | 1 | ||
| 7 | washer | 4 | N 011 666 20 | - | ||
| 7 | washer | 4 | N 011 666 15 | - | ||
| 8 | gearshift lever | 1 | 867 711 117 | - | ||
| 9 | underlay | 1 | 861 711 193 | - | ||
| 10 | pressure spring | 1 | 823 711 197 A | - | ||
| 12 | intermediate ring | 1 | 867 711 238 | - | ||
| 13 | repair kit for gearstick | 1 | 191 798 116 A | 12 | ||
| 15 | spacer bush | 2 | 861 711 555 | 1 | ||
| 16 | spannhuelse | 1 | N 043 314 1 | 1 | ||
| 17 | reinforcement | 1 | 867 711 255 A | - | ||
| 19 | hose for vehicles with centre console |
4-speed man. gearbox |
1 | N 900 319 02 | - | |
| 20 | hose for vehicles with centre console |
5-speed- man. gearbox |
1 | 803 711 127 | - | |
| (19) | hose for vehicles with centre console shorten to: |
5-speed- man. gearbox |
1 | N 900 319 02 | - | |
| 20 | hose for vehicles with centre console |
5-speed- man. gearbox |
1 | 191 711 236 | - | |
| 21 | gearshift lever trim | 1 | 171 711 115 | - | ||
| black | 171 711 115 0 5T | - | ||||
| (21) | gearshift lever trim for vehicles with centre console |
4-speed man. gearbox |
1 | 321 711 110 | - | |
| satin black | 321 711 110 0 1C | - | ||||
| (21) | gearshift lever trim (leatherette) for vehicles with centre console |
5-speed- man. gearbox |
1 | 321 711 113 C | - | |
| black | 321 711 113 C 5 CY | - | ||||
| (21) | gearshift lever trim (leather) | 1 | 867 711 113 A | - | ||
| black | 867 711 113 A 1 BX | - | ||||
| 22 | gearstick knob | 1 | 191 711 141 | 3 | ||
| satin black | 191 711 141 0 1C | 1 | ||||
| (22) | gearstick knob | 1 | 191 711 141 B | 3 | ||
| satin black | 191 711 141 B 0 1C | 1 | ||||
| (22) | gearstick knob (leather) | 1 | 357 711 141 A | - | ||
| black | 357 711 141 A 1 BX | - | ||||
| 23 | selector shaft | 1 | 867 711 155 B | - | ||
| 24 | selector rod guide | 1 | 867 711 211 | - | ||
| 25 | shift finger | 1 | 191 711 233 | 12 | ||
| (25) | shift finger | diesel eng. | 1 | 867 711 233 | - | |
| 26 | bearing bush | 1 | 191 711 209 | 3 | ||
| 27 | washer | 1 | N 901 237 01 | - | ||
| 28 | hexagon bolt | 1 | N 901 239 02 | - | ||
| 29 | clamp | 1 | 443 711 603 | - | ||
| 29 | clamp | 1 | 1J0 711 603 | - | ||
| 30 | hexagon bolt | 1 | N 010 340 4 | 2 | ||
| 31 | hexagon nut, self-locking | 1 | N 902 891 01 | - | ||
| 31 | hexagon collar nut self-locking |
1 | N 902 264 04 | - | ||
| 31 | hexagon collar nut self-locking |
1 | N 902 264 03 | 1 | ||
| 32 | clamping ring | 1 | 357 711 687 | - | ||
| - | poly lubricant | X | G 052 142 A2 | - | ||
| - | grease | X | G 000 450 02 |
-
