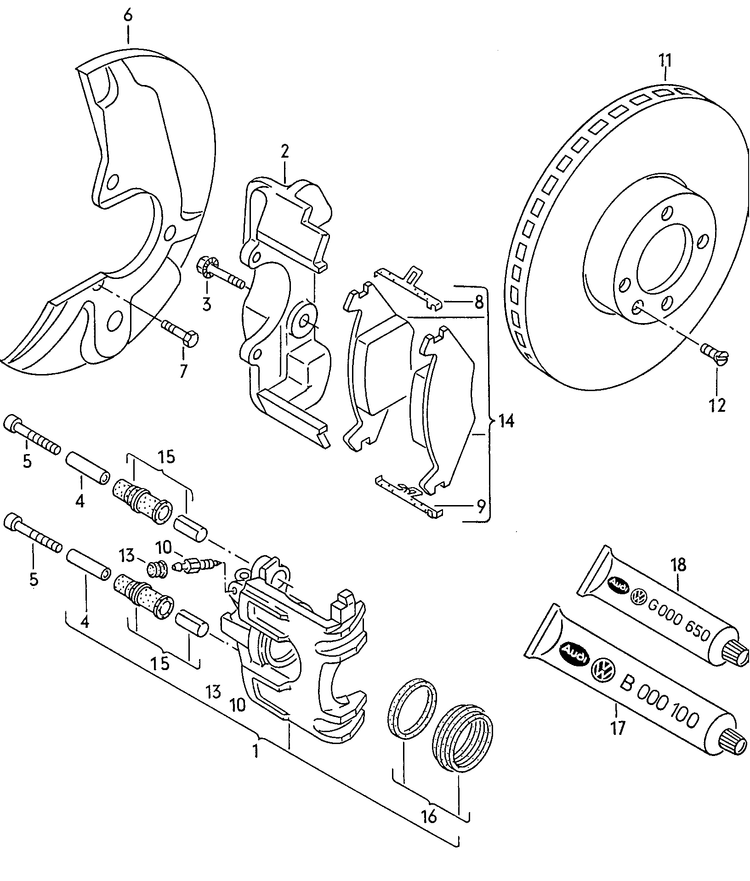

045-015 VW Polo G40 1991>1994 Front floating caliper brake brake caliper housing brake carrier with pad retaining pin brake disc G40

№ Name Ext. inf. A* Use of Part number A
floating caliper brake
front		 G40
floating caliper brake
brake caliper housing
brake carrier with
pad retaining pin
brake disc		 G40
1 brake caliper housing 1 171 615 123 B  74
(1) brake caliper housing 1 171 615 124 B  75
1 brake caliper housing 1 1H0 615 123 C  48
1 brake caliper housing 1 1H0 615 123 A  69
(1) brake caliper housing 1 1H0 615 124 C  46
(1) brake caliper housing 1 1H0 615 124 A  70
- 1 set: brake caliper with
brake pads (without brake
carrier)
also use:		 1 1H0 698 461  X  -
(2) calliper carrier
use if required:		 2 321 615 127 B  -
3 self-locking bolt 4 N  900 689 02  -
4 guide sleeve 2 171 615 221   2
4A guide sleeve 2 171 615 221 A  6
5 socket head bolt with
hexagon socket head		 2 N  044 755 3  1
5A socket head bolt with
hexagon socket head		 2 N  014 715 3  1
6 cover plate for brake disc 1 867 615 311 B  3
(6) cover plate for brake disc 1 867 615 312 B  3
7 hexagon bolt 6 N  905 293 02  -
7 hexagon bolt 6 N  905 293 01  1
7 hexagon bolt 6 N  010 210 7  1
8 retaining spring 1
1		 191 615 269 A  1
9 retaining spring 1
1		 191 615 270 A  2
10 breather valve 2 357 615 273   4
11 brake disc (vented) 2 321 615 301 C  144
11 brake disk (vented) 'eco'
economy		 2 JZW 615 301 K  -
12 countersunk bolt 2 N  014 226 5  2
13 dust cap 2 211 611 483   2
- adhesive layer for
brake pad		 1 171 698 993   -
14 1 set of brake pads for
disk brake		 1 191 698 151 L  59
14 1 set of brake pads for
disk brake		 1 191 698 151 G  121
15 1 set: guide bushes 2 171 698 447 A  13
16 set of gaskets for brake
caliper housing		 2 171 698 471 B  33
17 brake cylinder paste X B  000 100   -
17 lithium lubricating grease X G  052 150 A2  2
18 solid lubricant paste X G  000 650
045-015 VW Polo G40 1991>1994 Front floating caliper brake brake caliper housing brake carrier with pad retaining pin brake disc G40
