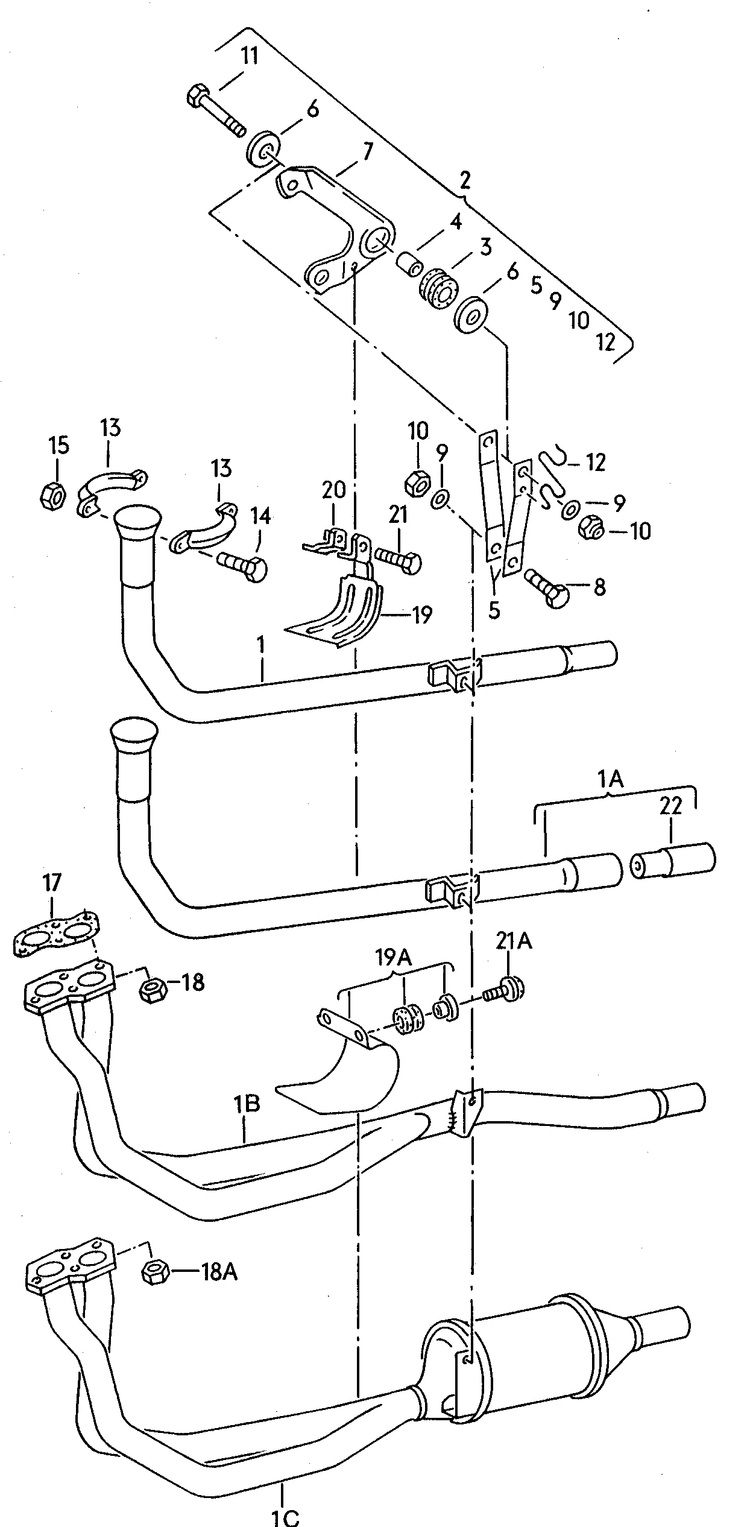

024-010 VW Polo 1991>1994 exhaust pipe catalytic converter HZ,AAU,NZ, AAV,2G,3F, PY,ACM diesel eng.+ 1W

№ Name Ext. inf. A* Use of Part number A
exhaust pipe
catalytic converter		 HZ,AAU,NZ,
AAV,2G,3F,
PY,ACM
diesel eng.+
1W
(1) exhaust pipe HZ,ACM 1 867 253 091 B  18
1 exhaust pipe
for vehicles without exhaust-
gas treatment system		 2G 1 867 253 091 C  15
(1) exhaust pipe
(long-life version)		 1W 1 867 253 091 E  14
(1A) exhaust pipe with catalyst
(long-life version)		 HZ,ACM 1 867 253 206  X  1
1B exhaust pipe
for vehicles without catalytic
converter		 3F 1 871 253 091   8
(1B) exhaust pipe
(long-life version)
for vehicles without catalytic
converter
also use:		 PY 1



1
1		 871 253 091 D  -
(1C) exhaust pipe with catalyst
(long-life version)		 NZ,3F,AAV 1 867 253 208  X  25
(1C) exhaust pipe with catalyst
(long-life version)		 AAU 1 867 253 208 GX  23
(1C) exhaust pipe with catalyst
(long-life version)		 HZ,2G,ACM 1 867 253 208 AX  7
(1C) exhaust pipe with catalyst
(long-life version)		 PY 1 871 253 208  X  4
(1C) exhaust pipe with catalyst
(long-life version)
(for modified vehicles)
(UMRUESTUNG :01/90>>11/95)		 PY,NZ,3F,AAV 1 871 253 208  X  4
2 no longer available 1
2 bracket 1 868 253 093   -
(2) bracket 1 861 253 093   -
3 rubber bush 1 823 253 149 A  5
4 spacer pipe 1 431 253 205 B  -
5 strap 2 861 253 209   -
6 washer 2 N  904 772 01  -
7 bracket 1 861 253 253   -
8 hexagon bolt 1 N  010 239 29  2
8 hexagon bolt 1 N  010 239 11  3
9 washer 1 N  011 525 27  4
9 washer 1 N  011 525 20  63
9 washer 1 N  011 525 13  4
10 hexagon nut, self-locking 2 N  022 146 4  13
11 hexagon bolt 1 N  010 247 8  1
11 hexagon bolt 1 N  010 244 21  -
11 hexagon bolt 1 N  010 244 25  9
11 hexagon bolt 1 N  010 244 16  9
12 bracket 1 868 721 343   -
13 clamping piece 2 861 253 269   10
(13) repair set
clamping piece		 1 861 298 269   4
14 hexagon bolt 2 N  010 350 6  1
15 hexagon nut, self-locking 2 N  022 146 4  13
17 seal AAU,NZ,AAV,
2G,3F		 1 036 253 115 A  27
(17) seal PY 1 871 253 115 A  -
18 hexagon nut, self-locking PY 4 N  900 876 02  4
18 hexagon nut, self-locking PY 4 N  102 090 09  2
18 hexagon nut, self-locking PY 4 N  102 090 05  6
18A hexagon nut, self-locking AAU,NZ,AAV,
2G,3F		 4 N  022 146 4  13
(18A) hexagon nut, self-locking PY 4 N  102 090 09  2
(18A) hexagon nut, self-locking PY 4 N  102 090 05  6
19A guard plate AAU,NZ,AAV,
2G,3F,PY		 1 867 253 701 A  -
21A hex collared bolt 2 N  019 502 4  -
21A hex collared bolt 2 N  019 502 2
024-010 VW Polo 1991>1994 exhaust pipe catalytic converter HZ,AAU,NZ, AAV,2G,3F, PY,ACM diesel eng.+ 1W
