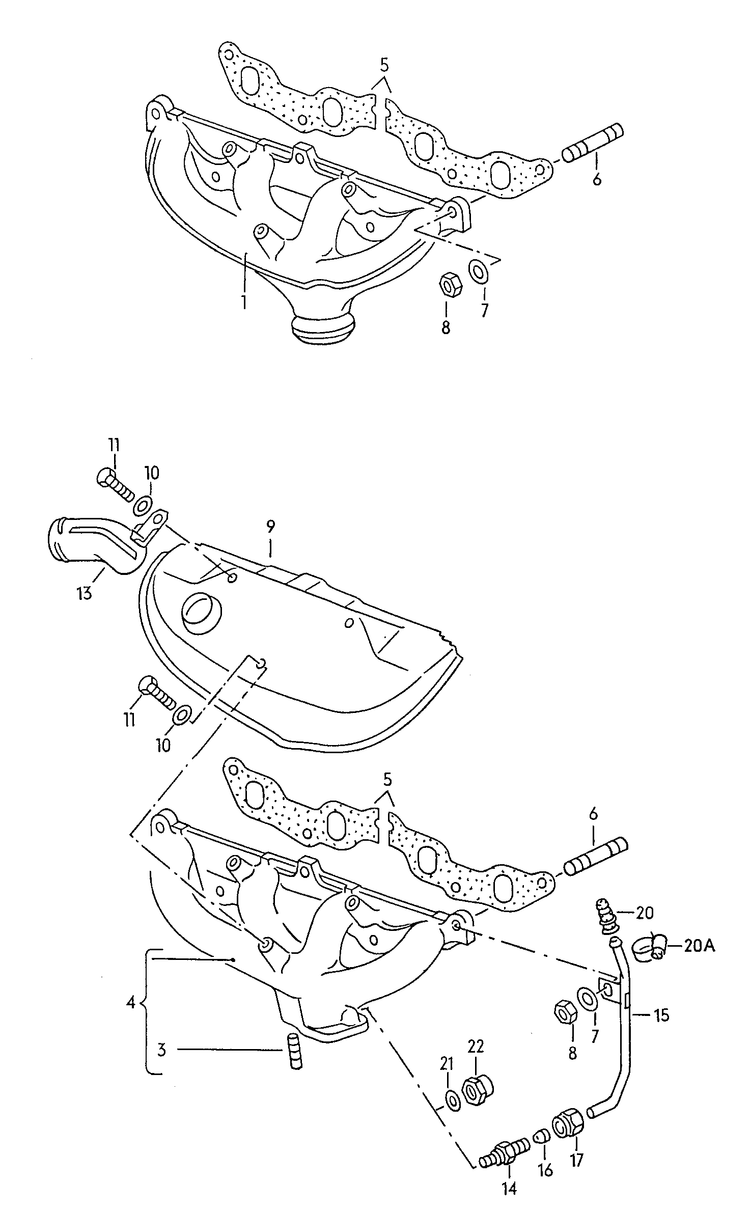

023-000 VW Polo 1991>1994 exhaust manifolds HZ,ACM,AAU, NZ,AAV,2G, 3F,PY; diesel eng.+ 1W

№ Name Ext. inf. A* Use of Part number A
exhaust manifolds HZ,ACM,AAU,
NZ,AAV,2G,
3F,PY;
diesel eng.+
1W
1 exhaust manifolds
for vehicles without exhaust-
gas treatment system		 HZ,ACM,2G;
diesel eng.+
1W		 1 030 129 591   -
3 threaded pin AAU,NZ,AAV,
2G,3F		 4 N  044 512 2  -
(3) threaded pin PY 4 N  900 717 02  -
4 exhaust manifolds

also use:
for vehicles without catalytic
converter		 AAU,NZ,AAV,
2G,3F,HZ;
3F		 1

1
1		 030 129 587 J  4
(4) exhaust manifolds PY 1 030 129 587 Q  -
5 seal 2 100579 20
6 threaded pin 5 N  044 410 4  1
7 washer 5 N  011 558 13  62
7 washer 5 N  011 558 11  64
8 hexagon nut, self-locking 5 108578  8
8 hexagon nut, self-locking 5 N  900 850 01  4
9 warm air deflector plate HZ,ACM,AAU,
NZ,AAV,2G,3F		 1 030 253 043   -
10 washer 3 N  015 276 1  -
11 hexagon bolt 3 N  010 212 26  -
13 warm air elbow HZ,ACM,AAU,
NZ,AAV,2G,3F		 1 052 253 513 B  -
14 connection piece 1 N  020 801 2  -
15 pipe for co sampling
for models with emission
control system
F >> 80-P-280 000*
AAU,NZ,AAV,
2G,3F


1		 030 129 701   -
(15) pipe for co sampling
for models with emission
control system		 PY 1 030 129 701 A  -
16 die ring 1 N  020 829 2  -
17 union nut 1 N  021 022 2  1
(20) cap closure
for models with emission
control system		 1 034 133 335 D  -
20A clamp 1 N  102 582 01  1
21 o-ring 1 N  013 830 2  7
(21) o-ring PY,3F 1 N  013 818 2  6
22 cap nut 1 043 131 737   1
22 cap nut 1 4A0 131 737 A  2
(22) sealing plug PY,3F 1 N  016 153 1
023-000 VW Polo 1991>1994 exhaust manifolds HZ,ACM,AAU, NZ,AAV,2G, 3F,PY; diesel eng.+ 1W
