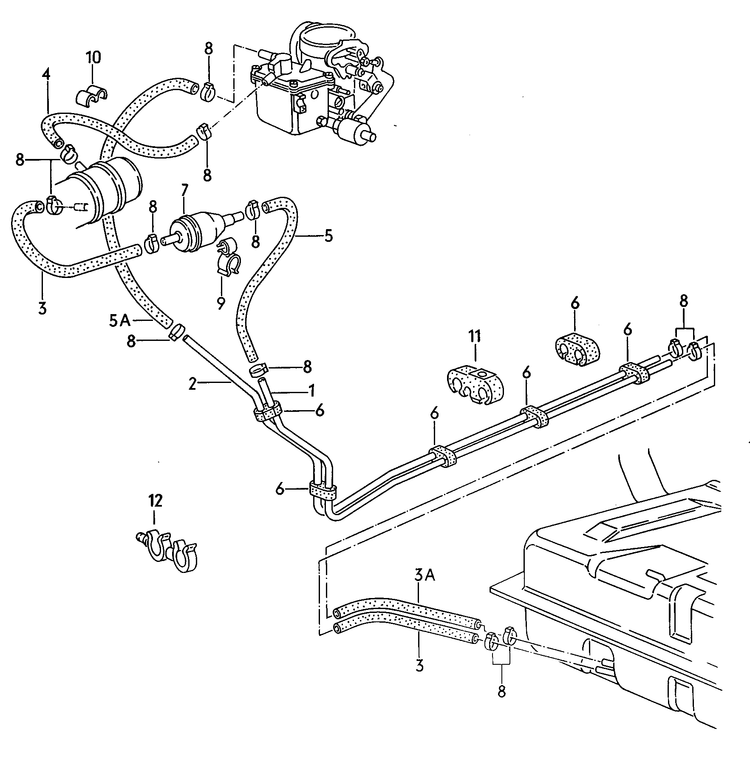

022-000 VW Polo fuel line / fuel filter

№ Name Ext. inf. A* Use of Part number A
fuel line
fuel filter		 carburetor
engine
1 fuel line 1 867 201 361 C  -
(2) fuel line 1 867 201 351   -
- hose in coils of 5m
'order unit 5'		 * N  020 281 1  -
- hose in coils of 5m
'order unit 5'		 * N  900 996 01  -
(3) shorten to: 1
(4) shorten to: 1
(5) shorten to: 1
(5) shorten to:
1
- hose in coils of 5m
'order unit 5'		 * N  900 996 03  -
3A shorten to: 1
5A shorten to: 1
- clamp X N  102 036 01  -
- clamp X N  100 497 01  -
6 protective hose 9 861 201 245 A  -
(7) fuel filter 1 191 201 511 A  55
(8) clamp X N  901 072 03  -
(8) clamp X N  024 528 1  -
9 hose bracket 1 861 201 815   -
(9) hose bracket 1 171 201 815 A  -
10 terminal 1 321 201 443   -
11 clip X 867 201 449   -
12 bracket X 867 201 687   -
- retainer for fuel line 1 191 201 248   -
- retainer for fuel line X 867 201 248
022-000 VW Polo fuel line / fuel filter
