Original Equipment Quality
188161 Febi New T5.1 (7E) 2010>2015 6speed manual Driveshaft
188161 Febi New T5.1 (7E) 2010>2015 6speed manual Driveshaft
Regular price
£440.04 GBP
Regular price
£552.30 GBP
Sale price
£440.04 GBP
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability

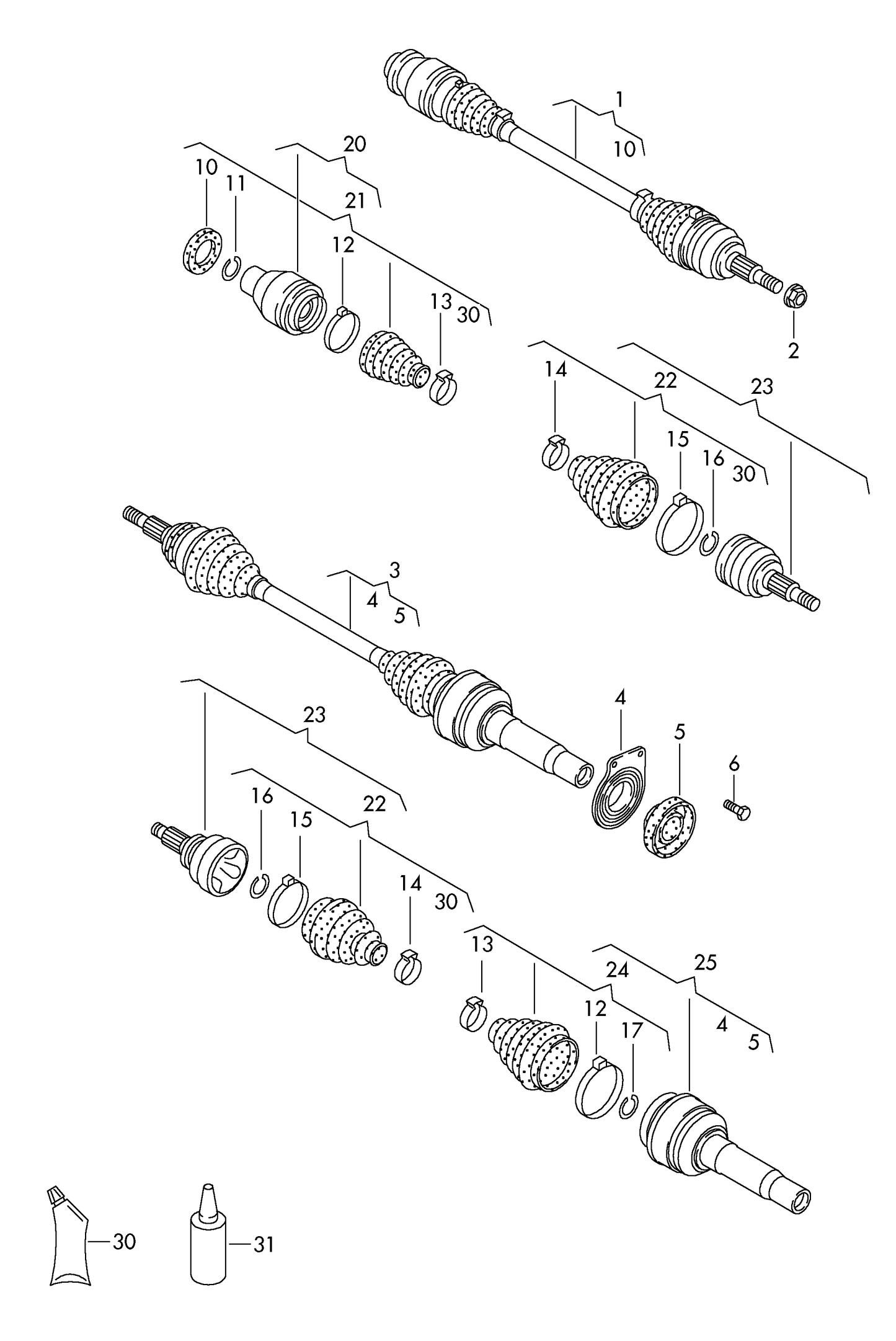

| drive shaft for 6 speed manual gearbox |
front Model data: fr.wheel drv |
| 1 |
|
|
drive shaft with constant velocity joints also use: |
left G 060 735 A2 |
| 1 |
|
Cancelled since 01.10.2012 |
drive shaft with constant velocity joints |
left |
| (1) |
|
|
drive shaft with constant velocity joints also use: |
left 0A5 409 343 B G 060 735 A2 |
| 2 |
|
|
12 point socket shouldered nut self-locking |
M20X1,5 |
| 3 |
|
Cancelled since 01.03.2012 |
drive shaft with constant velocity joints |
right |
| (3) |
|
Cancelled since 01.11.2012 |
drive shaft with constant velocity joints |
right |
| (3) |
|
Cancelled since 01.09.2012 |
drive shaft with constant velocity joints |
right |
| 3 |
|
|
drive shaft with constant velocity joints also use: |
right 0A5 409 343 A G 060 735 A2 |
| (3) | 306004 |
|
|
drive shaft with constant velocity joints also use: |
right 0A5 409 343 A G 060 735 A2 |
| 4 |
|
|
mounting |
right inner |
| 5 |
|
|
protective cap |
right inner |
| 6 |
|
|
hexagon bolt |
M8X22 |
| 10 |
|
|
protective cap |
left inner |
| 11 |
|
|
securing ring |
|
| 12 |
|
|
terminal |
83,5X10X1 |
| 13 |
|
|
clamp |
37,5X10X0,8 |
| 14 |
|
|
terminal D >> - 25.04.2010 |
38X10X0,8 |
| (14) |
|
|
clamp D - 26.04.2010>> |
37,5X10X0,8 |
| 15 |
|
|
terminal D >> - 25.04.2010 |
107X10X1 |
| (15) |
|
|
clamp D - 26.04.2010>> |
110,5X10X1 |
| 16 |
|
|
securing ring D >> - 25.04.2010 |
|
| (16) |
|
|
securing ring D - 26.04.2010>> |
31,5X2 |
| 17 |
|
|
snap ring |
|
| 20 |
|
Cancelled since 01.01.2013 |
constant velocity joint with boot, attachment parts and grease also use: |
left inner G 060 735 A2 |
| 20 |
|
Cancelled since 01.02.2013 |
constant velocity joint with boot, attachment parts and grease also use: |
left inner G 060 735 A2 |
| 21 |
|
|
joint protective boot with assembly items and grease also use: |
left inner G 060 735 A2 |
| 22 |
|
|
joint protective boot with assembly items and grease D >> - 25.04.2010 |
outer |
| (22) |
|
|
joint protective boot with assembly items and grease D - 26.04.2010>> |
outer |
|
| 23 |
|
outer joint with assembly parts not for this model for drive shaft: use item: D >> - 25.04.2010 |
7E0 407 271 E 7E0 407 272 P 1,3 |
| 23 |
|
|
outer joint with assembly parts for drive shaft: D - 26.04.2010>> |
7H0 407 271 AS 7H0 407 451 TX 7E0 407 272 B 7E0 407 272 AR 7E0 407 452 X |
| 23 |
|
|
outer joint with assembly parts for drive shaft: D - 26.04.2010>> |
7H0 407 271 AS 7H0 407 451 TX 7E0 407 272 B 7E0 407 272 AR 7E0 407 452 X |
| 24 |
|
|
joint protective boot with assembly items and grease also use: |
right inner G 060 735 A2 |
| 25 |
|
Cancelled since 01.01.2012 |
constant velocity joint with boot, attachment parts and grease |
right inner |
| (25) |
|
Cancelled since 01.01.2012 |
constant velocity joint with boot, attachment parts and grease |
right inner |
| 25 |
|
Cancelled since 01.01.2013 |
constant velocity joint with boot, attachment parts and grease also use: |
right inner G 060 735 A2 |
| 25 |
|
Cancelled since 01.01.2013 |
constant velocity joint with boot, attachment parts and grease also use: |
right inner G 060 735 A2 |
| 30 |
|
|
grease for universal joint |
120G outer |
| (30) |
|
|
grease for universal joint |
120G inner |
| 31 |
|
|
universal grease stub shaft |
50G inner |
| (31) |
|
|
locking fluid | high-strength 10ml |
