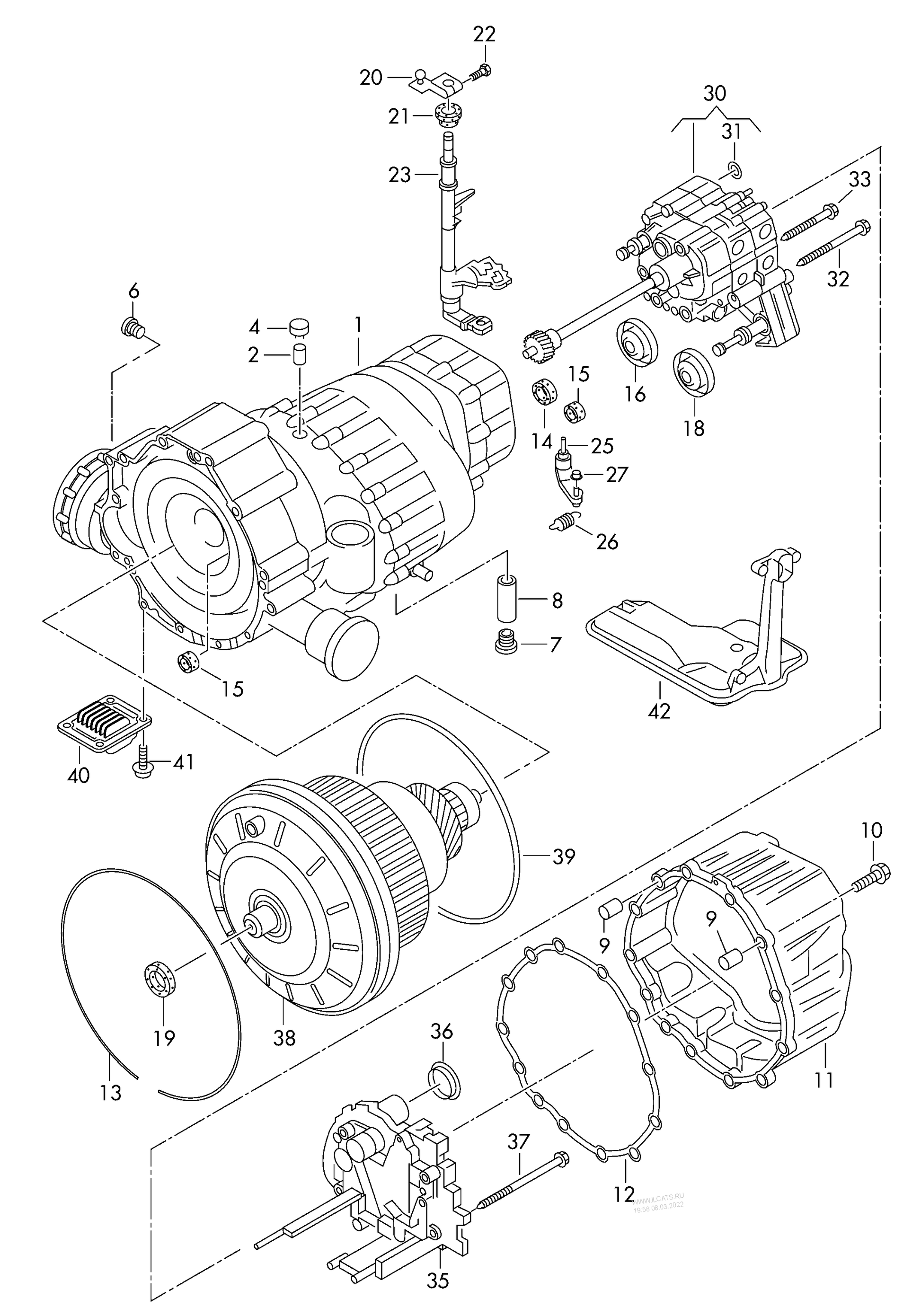

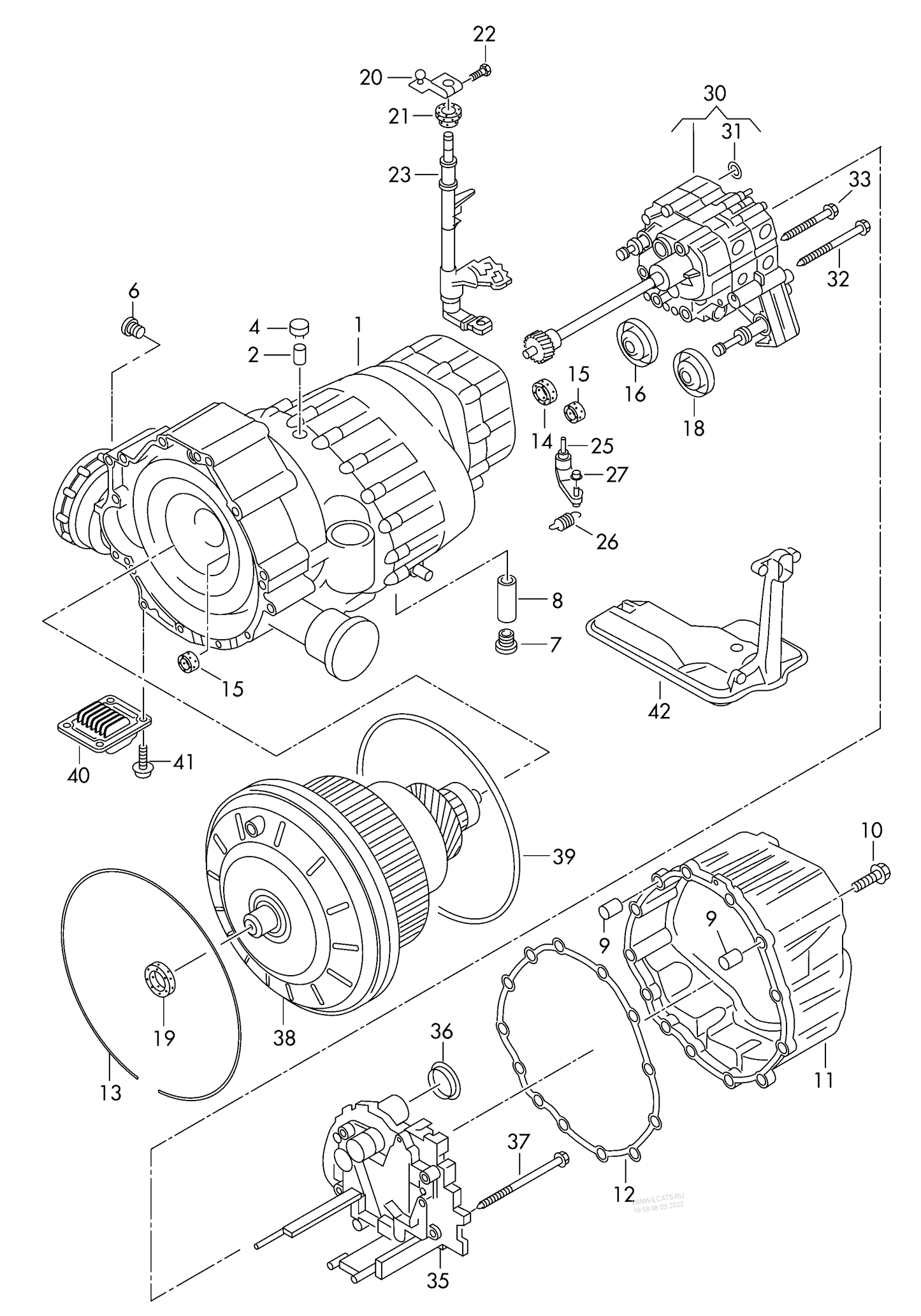

321-060 A4 2008>2015 valve body gear housing for constantly variable automatic gearbox frt.-wh.dr.+ KSS,KSR,KSN, LAT,LAU,LAM, LAN,LAS,LAQ, LKS,LKT,LKV, LLA,LKY,LTZ, LKX,LXS,LKU, LKR,LXS,MVC MMV,MMW,MMU, MQZ,MMR,MVB gearbox code:
321-060 A4 2008>2015 valve body gear housing for constantly variable automatic gearbox frt.-wh.dr.+ KSS,KSR,KSN, LAT,LAU,LAM, LAN,LAS,LAQ, LKS,LKT,LKV, LLA,LKY,LTZ, LKX,LXS,LKU, LKR,LXS,MVC MMV,MMW,MMU, MQZ,MMR,MVB gearbox code:
Regular price
£999.00 GBP
Regular price
Sale price
£999.00 GBP
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
| № | Number | Description | Cnt | Date | |||
|---|---|---|---|---|---|---|---|
| valve body gear housing for constantly variable automatic gearbox frt.-wh.dr.+ KSS,KSR,KSN, LAT,LAU,LAM, LAN,LAS,LAQ, LKS,LKT,LKV, LLA,LKY,LTZ, LKX,LXS,LKU, LKR,LXS,MVC MMV,MMW,MMU, MQZ,MMR,MVB gearbox code: |
|||||||
|
1
|
gear housing not for this model
|
1
|
|||||
|
2
|

|
sleeve
12X30
|
2
|
||||
|
4
|
|
cap for venting the gearbox
|
2
|
||||
|
6
|
|
sealing plug
M22X1,5
KSS,LAQ,LAN,
LAS,LAU,KSR, JNR,LAT,JWY, KSN,LAM |
1
|
||||
|
(6)
|
|
sealing plug
M22X1,5X11
LKS,LKT,LKV,
LLA,LKY,LTZ, LKX,LXS,LKU, LKR,LXS,MMW, MMU,MQZ,MVC, MMR,MVB,MMV |
1
|
||||
|
7
|
|
sealing plug
M22X1,5X14
KSS,KSN,KSR
|
1
|
||||
|
(7)
|
|
sealing plug
M22X1,5X11
LKS,LKT,LKV,
LLA,LKY,LTZ, LKX,LXS,LKU, LKR,LXS,LAQ, LAN,LAS,LAU, LAT,LAM,MMW, MMU,MQZ,MVC, MMR,MVB,MMV |
1
|
||||
|
8
|
|
oil pipe
KSS,KSN,KSR
|
1
|
||||
|
(8)
|
|
oil pipe
LKS,LKT,LKV,
LLA,LKY,LTZ, LKX,LXS,LKU, LKR,LXS,LAQ, LAN,LAS,LAU, LAT,LAM,MMW, MMU,MQZ,MVC, MMR,MVB,MMV |
1
|
||||
|
9
|
|
dowel sleeve
|
2
|
||||
|
9
|
|
dowel sleeve
|
2
|
||||
|
10
|
|
hexagon socket head bolt
M8X40
|
X
|
||||
|
11
|
|
transmission housing cover
|
1
|
||||
|
12
|
|
seal
|
1
|
||||
|
13
|
|
1 set circlips
|
1
|
||||
|
14
|
|
seal
12MM
|
3
|
||||
|
14
|
|
seal
12MM
|
3
|
||||
|
15
|
|
seal
8MM
|
2
|
||||
|
(15)
|
|
seal
8MM
|
2
|
||||
|
16
|
|
sensor rotor
1
|
1
|
||||
|
18
|
|
sensor rotor
|
1
|
||||
|
19
|
|
shaft oil seal
|
1
|
||||
|
20
|
|
lever for cable
|
1
|
||||
|
21
|
|
seal ring
|
1
|
||||
|
21
|
|
o-ring
|
1
|
||||
|
22
|
|
hexagon bolt
M6X32
|
1
|
||||
|
23
|
|
shift rod
|
1
|
||||
|
25
|
|
locating lever
|
1
|
||||
|
26
|
|
detent spring
|
1
|
||||
|
27
|
|
roller
|
1
|
||||
|
30
|
|
valve body with oil pump
LAU,LAT
|
1
|
||||
|
30
|
|
valve body with oil pump also use:
01J 301 547 H
0AW 301 547 A LAU,LAT,KSS,
KSR,LLA,LKY, LTZ,MMV,MMW |
1;;;3;1
|
||||
|
30
|
|
valve body with oil pump if required use also item:
14,15
LAU,LAT,KSS,
KSR,LLA,LKY, LTZ |
1
|
||||
|
(30)
|
|
valve body with oil pump also use:
01J 301 547 H
0AW 301 547 A LAM,LAS,LAQ,
LAL,KSN,LAN, LKS,LKT,LKV, LKX,LXS,LKU, LKR,MMU,MQZ, MVC,MMR,MVB |
1;;;;;;3;1
|
||||
|
(30)
|
|
valve body with oil pump if required use also item:
14,15
LAM,LAS,LAQ,
LAL,KSN,LAN, LKS,LKT,LKV, LKX,LXS,LKU, LKR |
1
|
||||
|
30
|
|
valve body with oil pump
KSN,LAN
|
1
|
||||
|
30
|
|
valve body with oil pump
KSS,KSR
|
1
|
||||
|
31
|
|
seal ring
|
2
|
||||
|
32
|
|
bolt, hex. hd. with pin (combi)
M6X90X37
|
2
|
||||
|
33
|
|
bolt, hex. hd. with pin (combi)
M6X90X37
|
1
|
||||
|
37
|
|
hex socket head collared bolt
M6X85
|
3
|
||||
|
37
|
|
hexagon socket flat head bolt
M6X75
|
3
|
||||
|
38
|
|
input shaft for vehicles with 7 plate clutch
KSS,KSR,LAT,
LAU,LLA,LKY, LTZ,MMV,MMW |
1
|
||||
|
(38)
|
|
input shaft for vehicles with 7 plate clutch
LAN,LAS,LAQ,
LKT,LKV,LKX, LKU,MMU,MVC, MVB |
1
|
||||
|
(38)
|
|
input shaft for vehicles with 7 plate clutch
KSN,LAM,LKR,
LKS,LXS,MQZ MMR |
1
|
||||
|
39
|
|
o-ring
|
1
|
||||
|
40
|
|
cover with seal
|
1
|
||||
|
41
|
|
hexagon socket head bolt shorten to:
M8X40
20MM |
4
|
||||
|
42
|
oil filter not for this model ------------------------------ * caution! non-approved * part numbers are not replac- * ement parts due to repair * complexity. please observe * workshop manual! ------------------------------ G >> 26 05 8
|
1
|
|||||
|
(42)
|
|
oil filter also use: G 26 05 8>>
0AW 301 463 C
|
1
|
||||
|
-
|
seal not for this model ------------------------------ * caution! non-approved * part numbers are not replac- * ement parts due to repair * complexity. please observe * workshop manual! ------------------------------ G >> 26 05 8
|
1
|
|||||
|
-
|
|
seal
|
1
|
||||
